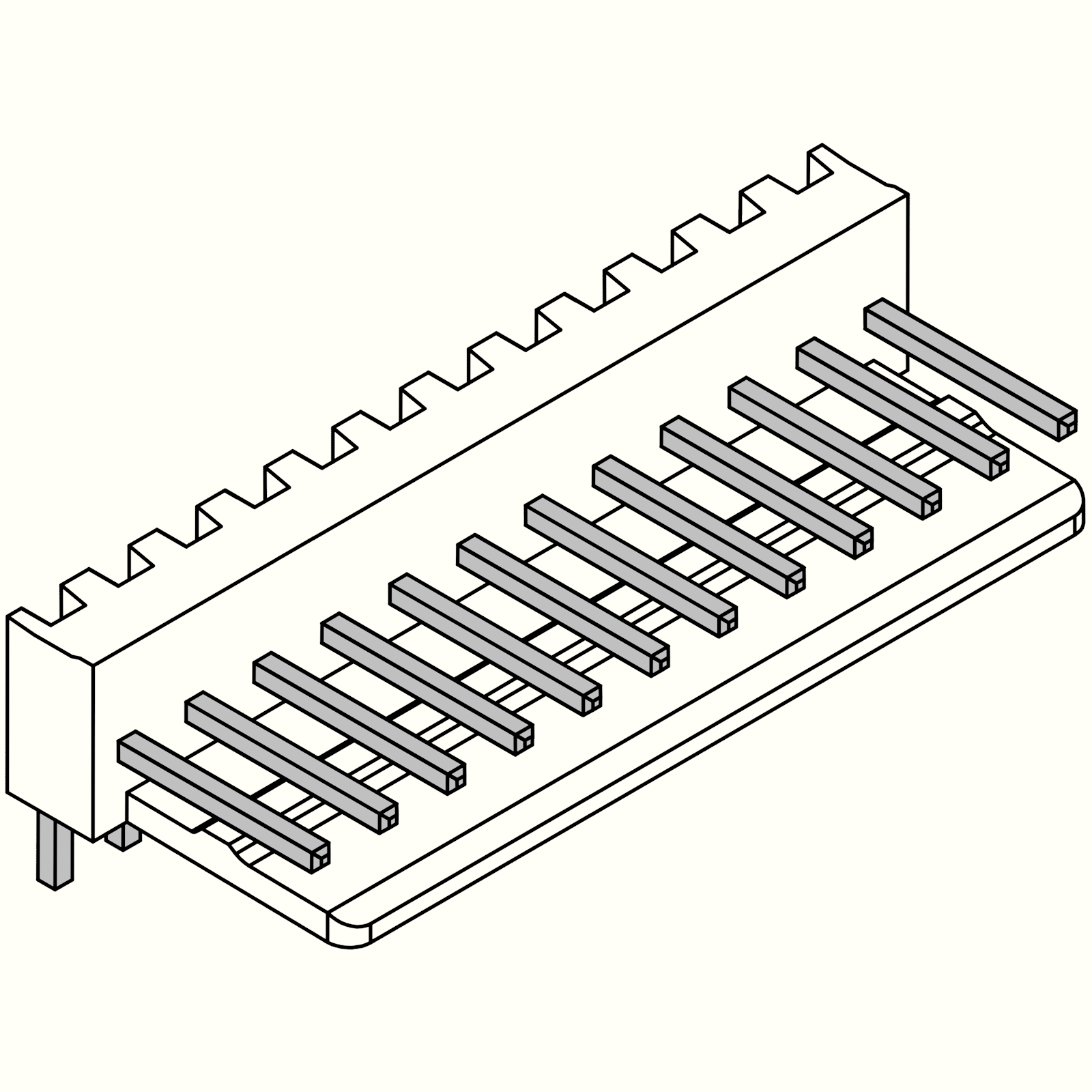

2510 Angled PCB Socket 12-pin

Series: 2510-254
Pin Count: 2-4
Pin Pitch: 2.54mm
Maximum Voltage: 250V
Maximum Current: 4.0A
Compatibility: Molex KK 5051 / Molex KK254

Name: 2510 Angled PCB Socket 12-pin
Brand: Komodo Electronics
SKU: 2510-254-12AW
Price: 0.34 GBP
Availability: InStock

1 1

Product variants

Availability: 451 in stock

Price

Quantity

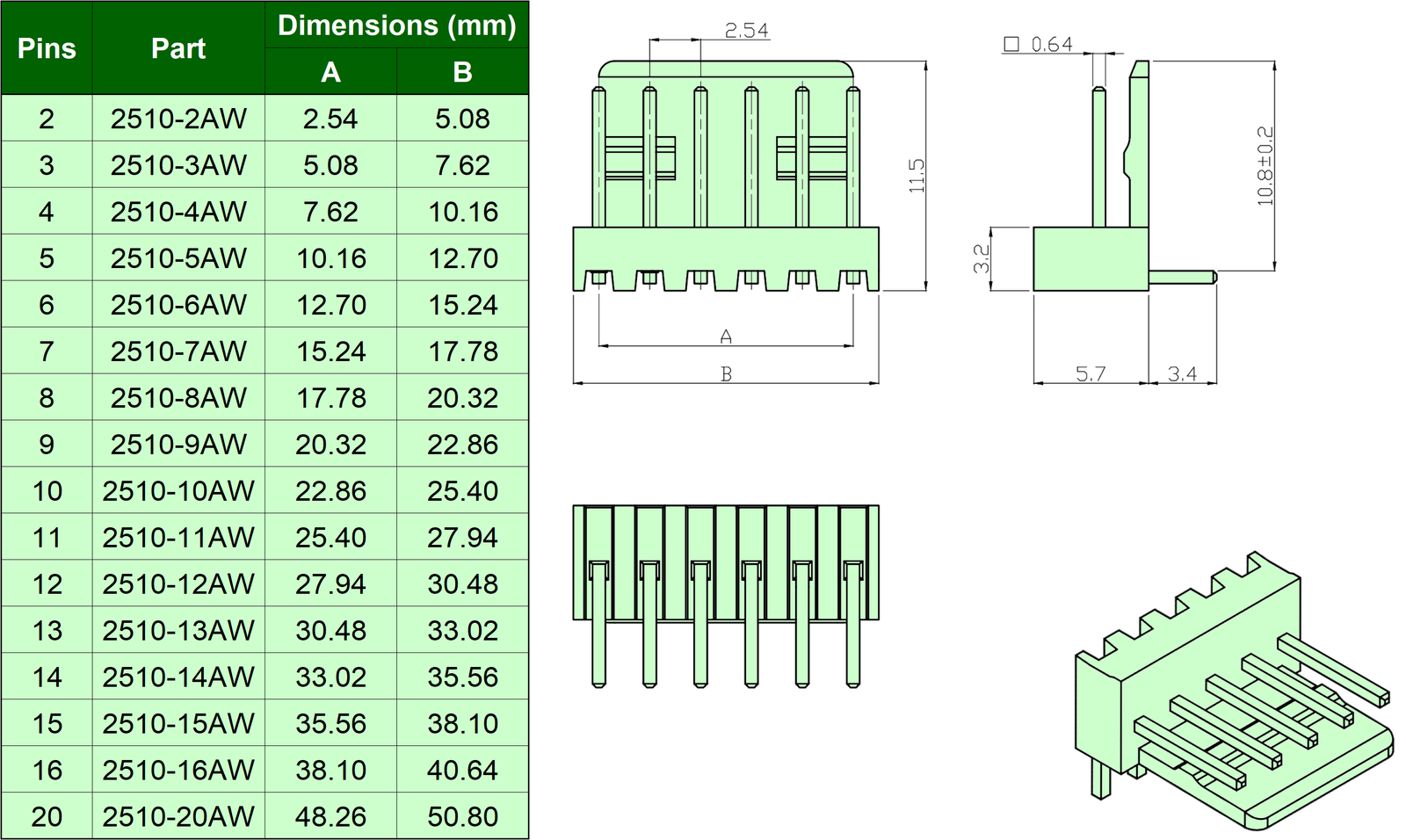

Part Information

Series Name	2510-254
Pin Pitch	2.54mm
Maximum Voltage	250V
Maximum Current	4.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1000V AC/min
Compatible Wire Size	28AWG ~ 22AWG
Wire Insulation Size (OD)	1.2mm ~ 1.9mm
Compatible PC Board Thickness	1.6mm
Compatibility	Molex KK 5051 Molex KK254
