5500 / 5600 Wire-to-Wire Connectors

5500 / 5600 Wire-to-Wire Connectors

1 1

Series Specification

Series Name 5500-5600-368
Pin Pitch 3.68mm
Maximum Voltage 250V
Maximum Current 5.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 18AWG
Wire Insulation Size (OD) 1.5mm ~ 2.5mm
Compatibility
  • Molex 5500
  • Molex 5600

On This Page

View full details

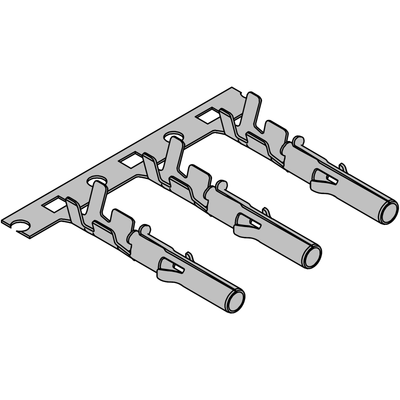

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
5500-368-YT
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
1,900+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5500-368-2Y
1+£0.1000
10+£0.0905
20+£0.0790
50+£0.0690
100+£0.0610
500+£0.0500
850+ in stock
(0 in cart)
3-pin
5500-368-3Y
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
600+ in stock
(0 in cart)
4-pin
5500-368-4Y
1+£0.1900
5+£0.1720
10+£0.1501
20+£0.1311
50+£0.1159
100+£0.0950
600+ in stock
(0 in cart)
5-pin
5500-368-5Y
1+£0.2300
5+£0.2082
10+£0.1817
20+£0.1587
50+£0.1403
100+£0.1150
750+ in stock
(0 in cart)

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
5600-368-RT
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
1,100+ in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5600-368-2R
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
900+ in stock
(0 in cart)
3-pin
5600-368-3R
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
650 in stock
(0 in cart)
4-pin
5600-368-4R
1+£0.1900
5+£0.1720
10+£0.1501
20+£0.1311
50+£0.1159
100+£0.0950
600+ in stock
(0 in cart)
5-pin
5600-368-5R
1+£0.2300
5+£0.2082
10+£0.1817
20+£0.1587
50+£0.1403
100+£0.1150
700+ in stock
(0 in cart)
