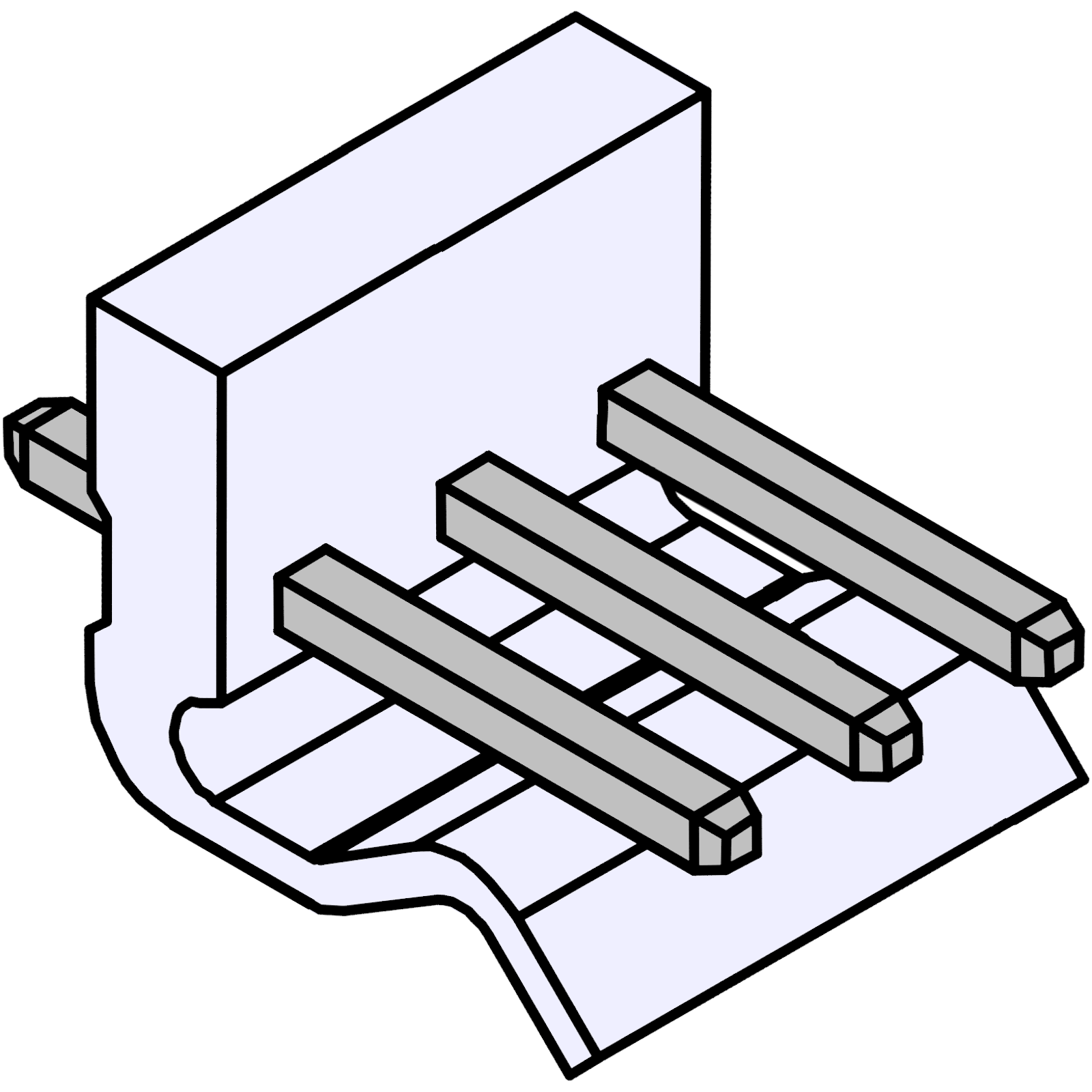

CH Straight PCB Socket 3-pin

Series: CH-396
Pin Count: 2-12
Pin Pitch: 3.96mm
Maximum Voltage: 250V
Maximum Current: 7.0A
Compatibility: Molex 5239, Molex KK396

Name: CH Straight PCB Socket 3-pin
Brand: Komodo Electronics
SKU: CH-396-3A
Price: 0.16 GBP
Availability: InStock

1 1

Product variants

Price

Quantity

Availability: 898 in stock

Part Specification

Series Name	CH-396
Pin Pitch	3.96mm
Maximum Voltage	250V
Maximum Current	7.0A
Temperature Range	-25°C ~ 85°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	24AWG ~ 18AWG
Wire Insulation Size (OD)	1.7mm ~ 3.0mm
Compatible PC Board Thickness	1.6mm
Compatibility	Molex 5239 Molex KK396
