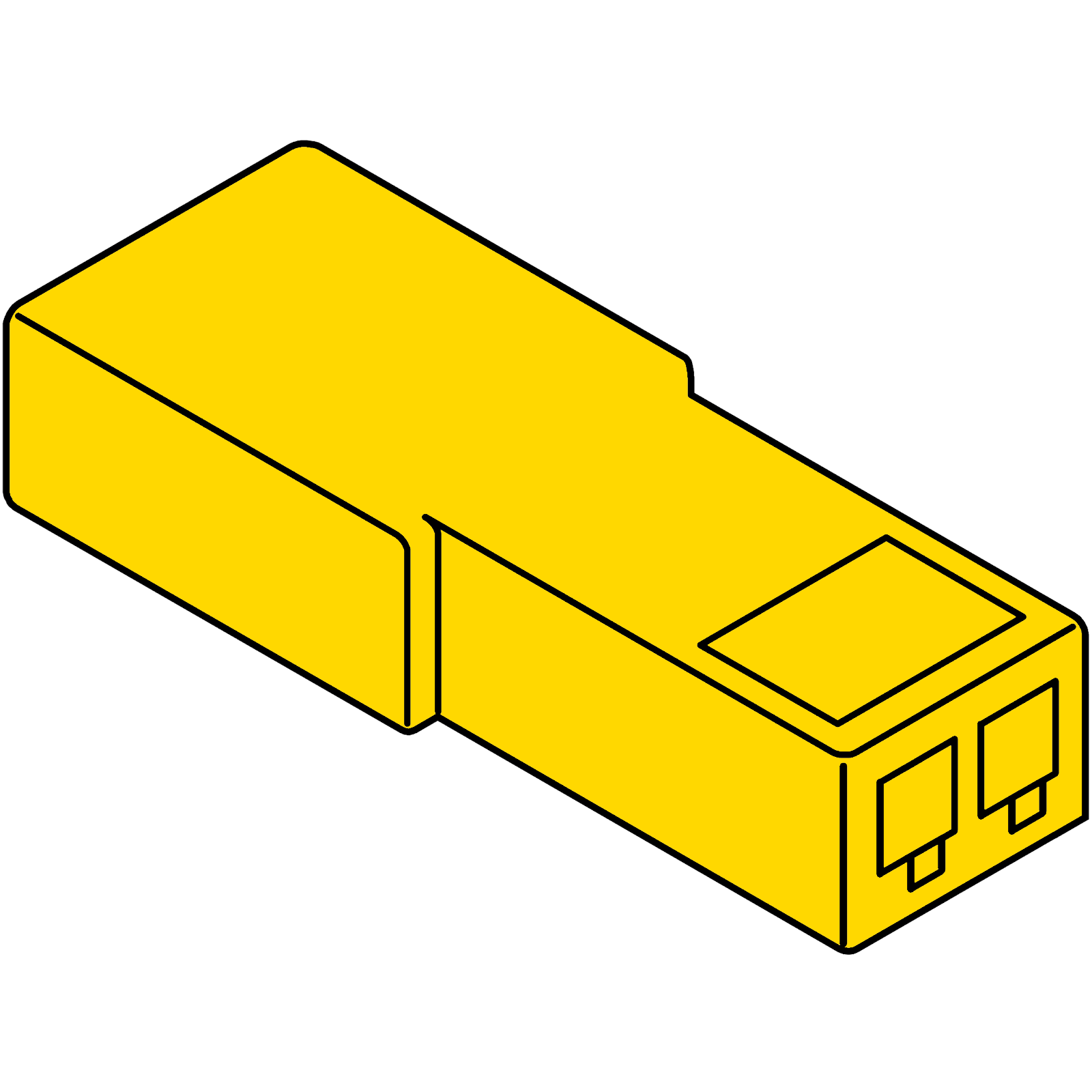

SY Wire Socket Housing 2-pin Yellow

SY Wire Socket Housing 2-pin Yellow

1 1
Quantity Unit Price
1+ £0.07
10+ £0.06335
20+ £0.0553
50+ £0.0483
100+ £0.0427
500+ £0.035

Part Information

Part Number SY-250-2R
Row Count 1
Pin Count 2
Colour Yellow
Materials
  • Nylon PA66 (UL94V-0)

Series Specification

Series Name SY-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 500MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.8mm
Compatibility
  • JST RCY
