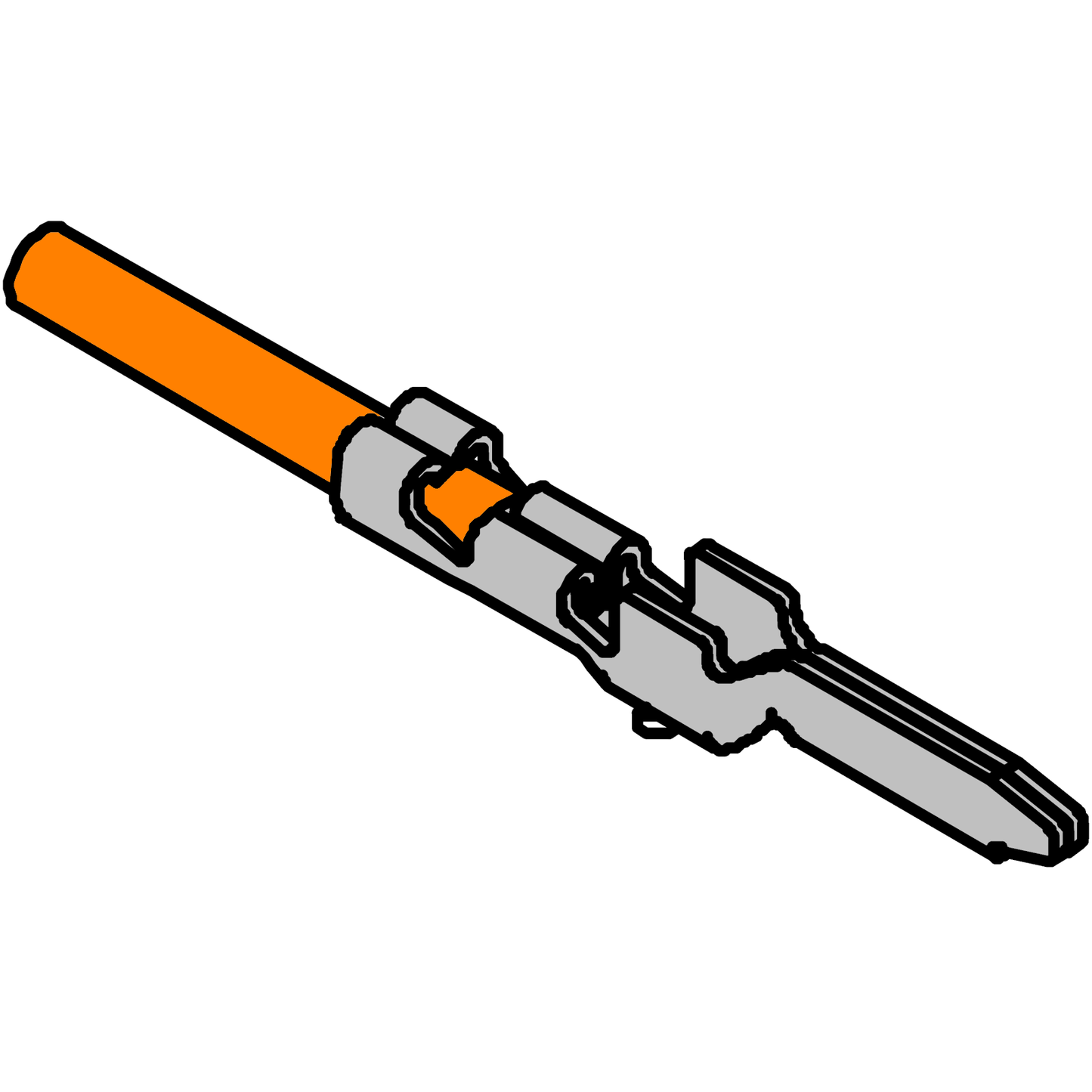

1.25 Crimped Wire 200mm (Wire Socket Crimp, Stripped & Tinned)

1.25 Crimped Wire 200mm (Wire Socket Crimp, Stripped & Tinned)

1 1
Wire Colour
Quantity Unit Price
1+ £0.14
5+ £0.126
10+ £0.112
20+ £0.098
50+ £0.084
100+ £0.077

Part Specification

Part Number1.25-125-W200-RT-S2
Variant Colour:
Red
Wire TerminationWire Socket Crimp / Stripped & Tinned
Wire Size28AWG
Wire Stranding7/0.11mm
Wire Outer Diameter0.9mm
Wire Length200mm
Part TypeCrimped Wire (Wire Socket)
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series Name1.25-125
Pin Pitch1.25mm
Maximum Voltage125V
Maximum Current1.0A
Temperature Range-25°C ~ 105°C
Contact Resistance20mΩ
Insulation Resistance100MΩ
Withstand Voltage500V AC/min
Compatible Wire Size32AWG ~ 28AWG
Wire Insulation Size (OD)0.5mm ~ 1.0mm
Compatible PC Board Thickness0.8mm
Compatibility
  • Molex PicoBlade
  • Molex 51047
  • Molex 51021
