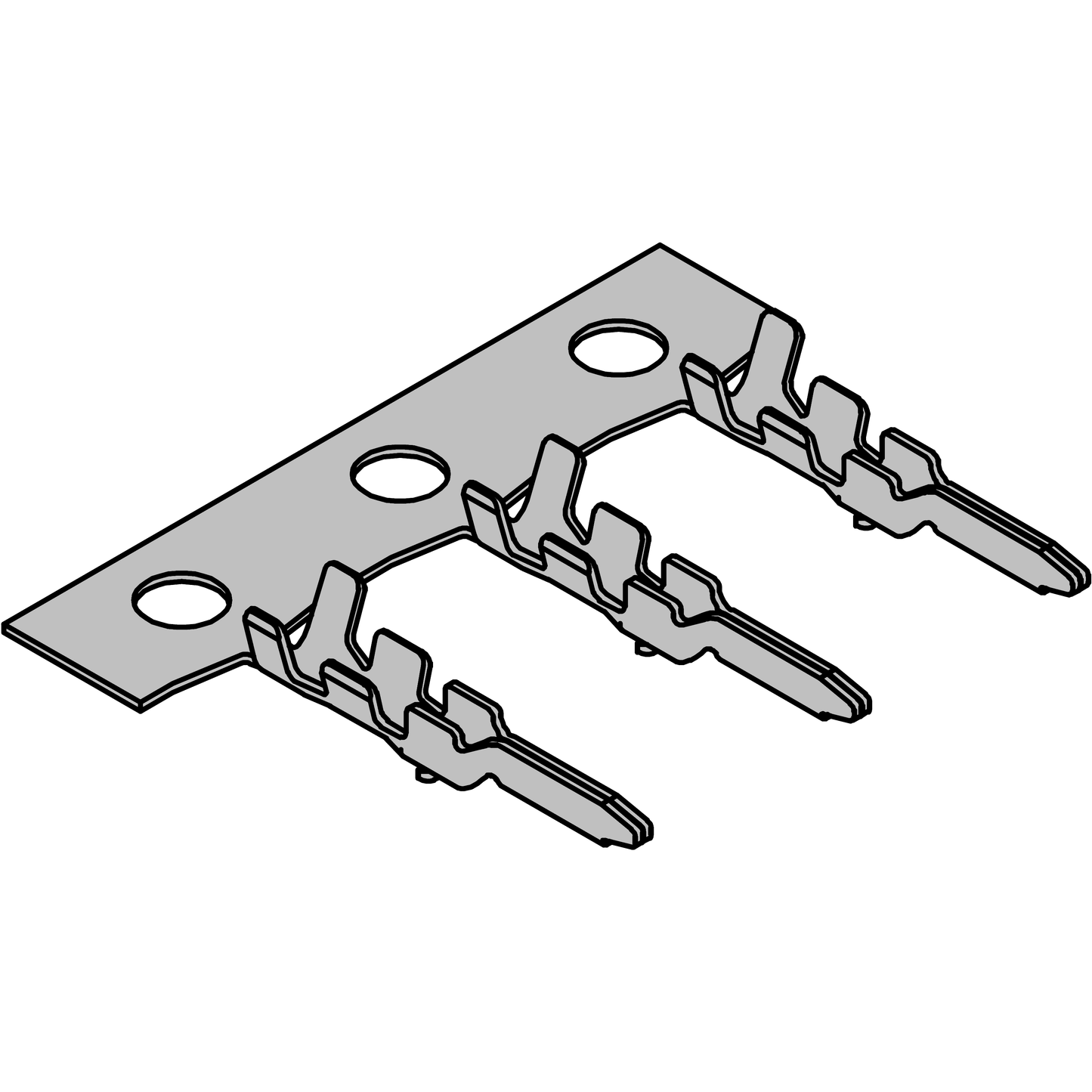

1.25 Wire Socket Crimp Terminal

Series: 1.25-125
Pin Count: 2-12
Pin Pitch: 1.25mm
Maximum Voltage: 125V
Maximum Current: 1.0A
Compatibility: Molex PicoBlade / Molex 51047 / Molex 51021

Name: 1.25 Wire Socket Crimp Terminal
Brand: Komodo Electronics
SKU: 1.25-125-RT
Price: 0.03 GBP
Availability: InStock

1 1

Product variants

Availability: 14280 in stock

Price

Quantity

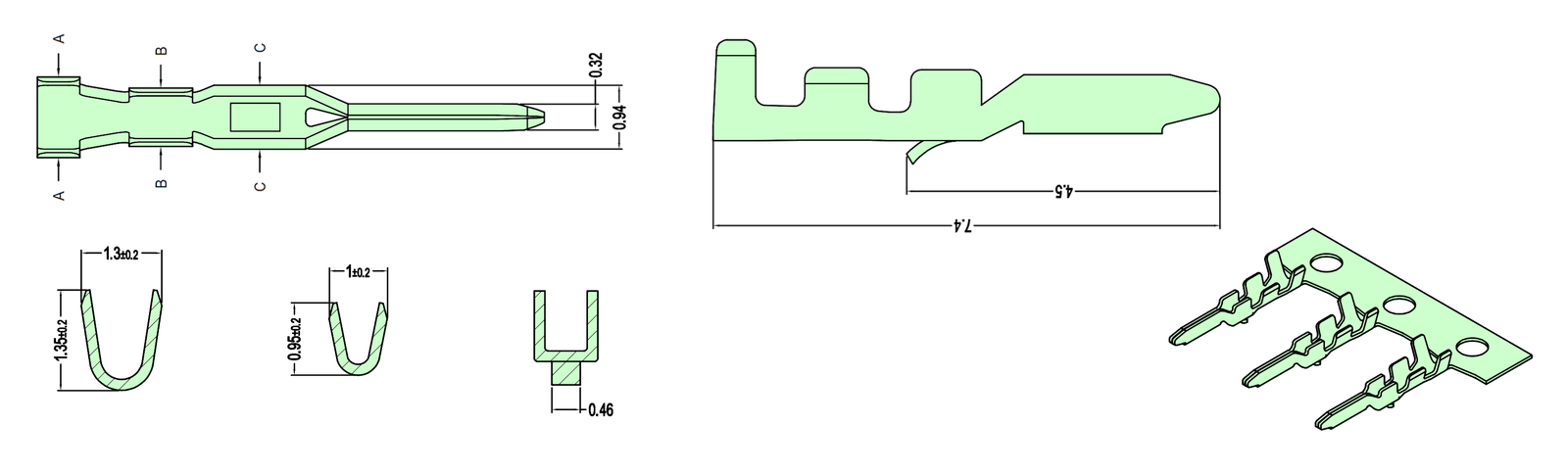

Part Information

Part Number	1.25-125-RT
Materials	Phosphor bronze Tin

Series Name	1.25-125
Pin Pitch	1.25mm
Maximum Voltage	125V
Maximum Current	1.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	20mΩ
Insulation Resistance	100MΩ
Withstand Voltage	500V AC/min
Compatible Wire Size	32AWG ~ 28AWG
Wire Insulation Size (OD)	0.5mm ~ 1.0mm
Compatible PC Board Thickness	0.8mm
Compatibility	Molex PicoBlade Molex 51047 Molex 51021
