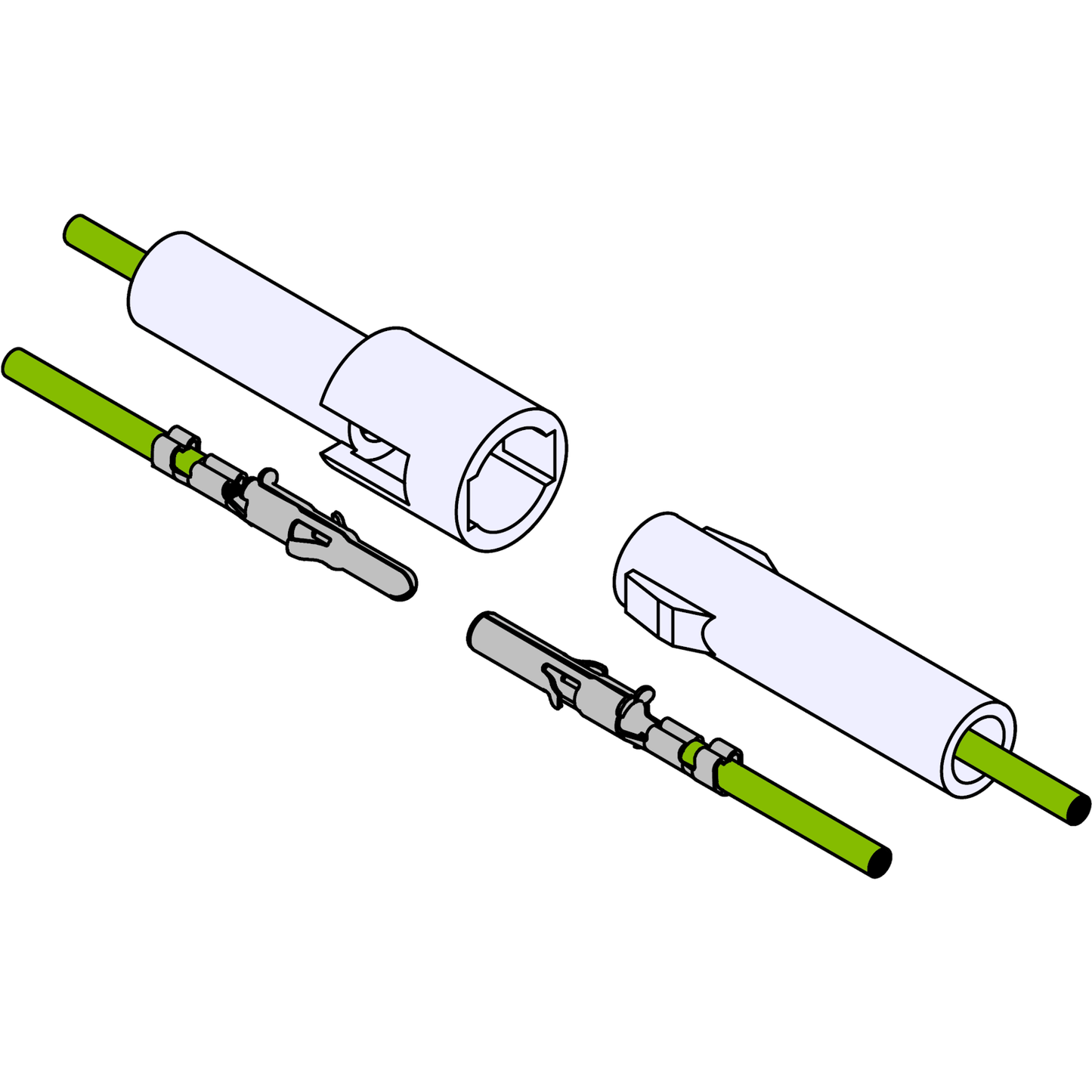

1.58 Wire-to-Wire Connectors

1.58 Wire-to-Wire Connectors

1 1

Series Specification

Series Name 1.58-000
Maximum Voltage 250V
Maximum Current 5.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 18AWG
Wire Insulation Size (OD) 1.5mm ~ 2.5mm
Compatibility
  • Molex 1625
  • Standard .062"

On This Page

View full details

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
1.58-000-YT 🖼️
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
2,200+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Pin Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Price (excl VAT) Buy
1.58-000-1Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
1,300+ in stock
(0 in cart)

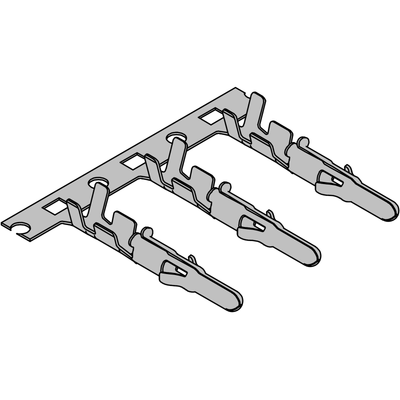

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
1.58-000-RT 🖼️
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
2,100+ in stock
(0 in cart)

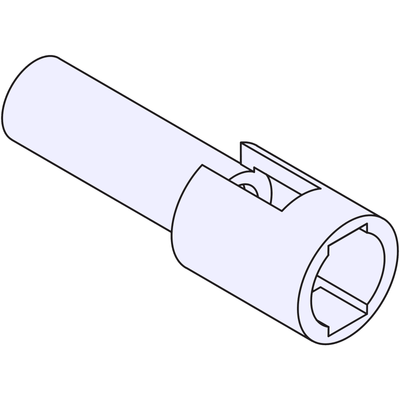

Wire Socket Housing

  • Row Count: 1
  • Pin Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Price (excl VAT) Buy
1.58-000-1R 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
1,300+ in stock
(0 in cart)
