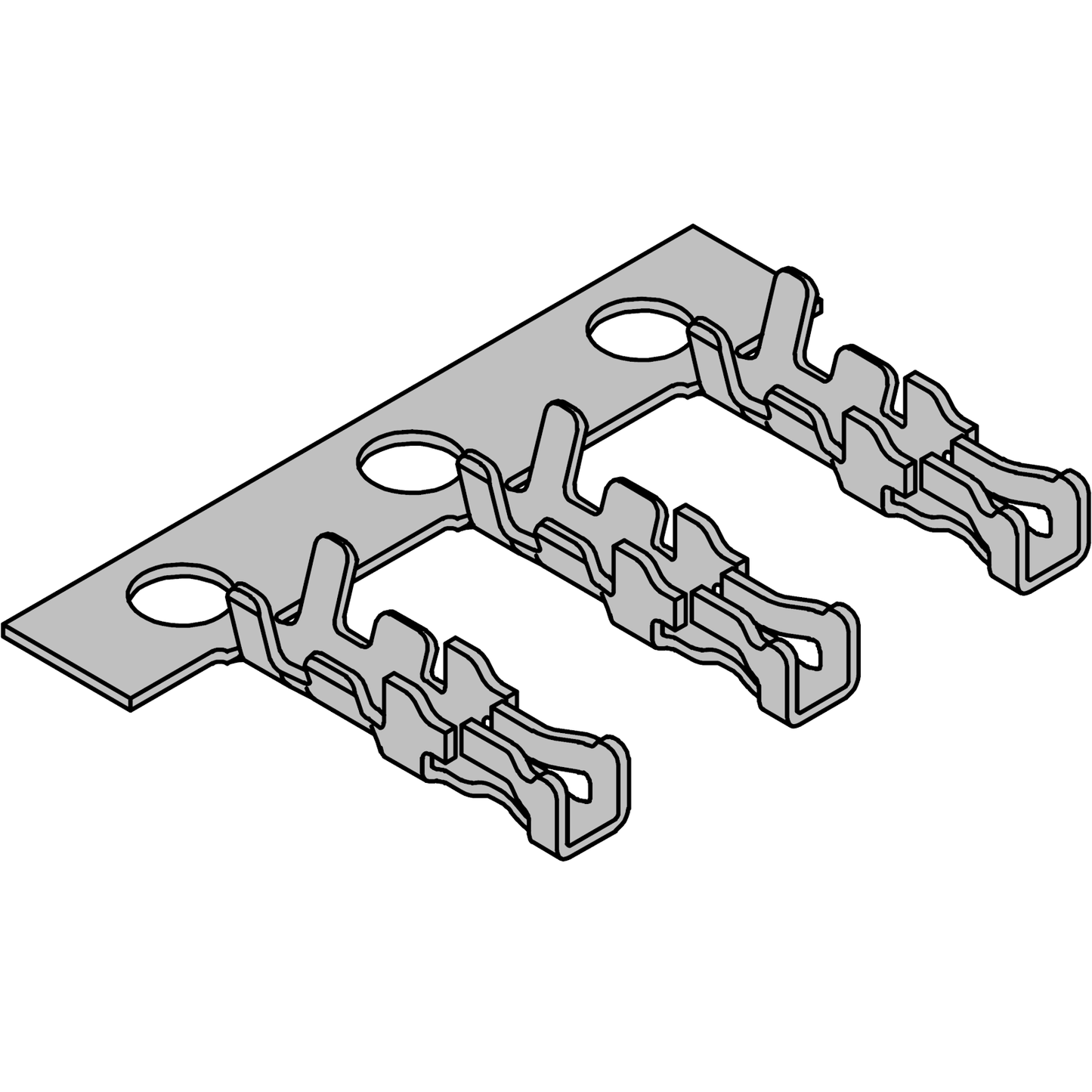

2.0 Female Crimp Terminal

2.0 Female Crimp Terminal

1 1
Quantity Unit Price
1+ £0.02
50+ £0.018
100+ £0.016
200+ £0.014
500+ £0.011
1000+ £0.01

Part Specification

Part Number2.0-200-FT
Part TypeFemale Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name2.0-200
Pin Pitch2.0mm
Maximum Voltage250V
Maximum Current2.0A
Temperature Range-25°C ~ 105°C
Contact Resistance20mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size30AWG ~ 26AWG
Wire Insulation Size (OD)0.9mm ~ 1.4mm
Compatibility
  • HARWIN M22
  • Molex Milli-Grid
View full details

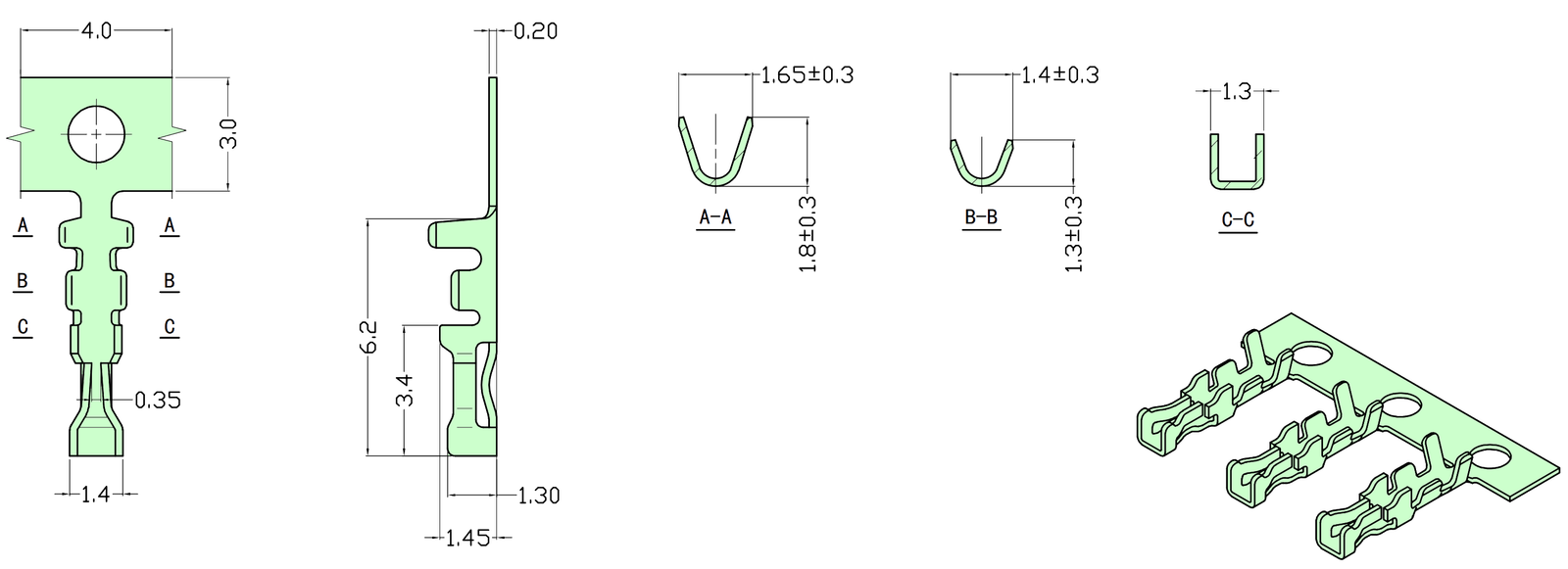

Diagram
