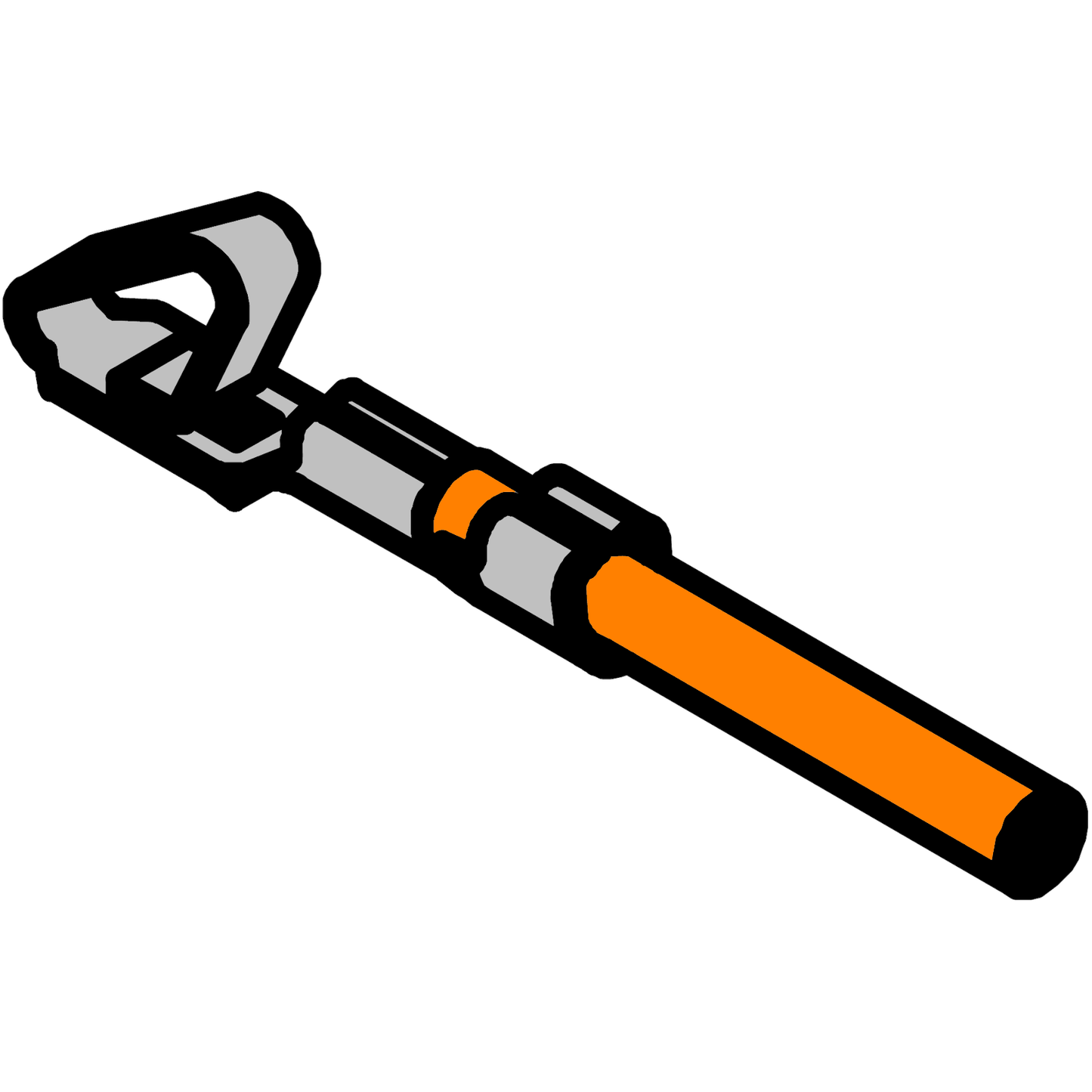

2510 Crimped Wire 200mm (Plug Crimp, Plug Crimp)

2510 Crimped Wire 200mm (Plug Crimp, Plug Crimp)

1 1
Wire Colour
Quantity Unit Price
1+ £0.21
5+ £0.189
10+ £0.168
20+ £0.147
50+ £0.126
100+ £0.1155

Part Specification

Part Number2510-254-W200-YT-YT
Variant Colour:
Red
Wire TerminationPlug Crimp / Plug Crimp
Wire Size26AWG
Wire Stranding7/0.12mm
Wire Outer Diameter1.3mm
Wire Length200mm
Part TypeCrimped Wire (Plug)
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series Name2510-254
Pin Pitch2.54mm
Maximum Voltage250V
Maximum Current4.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size28AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.9mm
Compatible PC Board Thickness1.6mm
Compatibility
  • Molex KK 5051
  • Molex KK254
