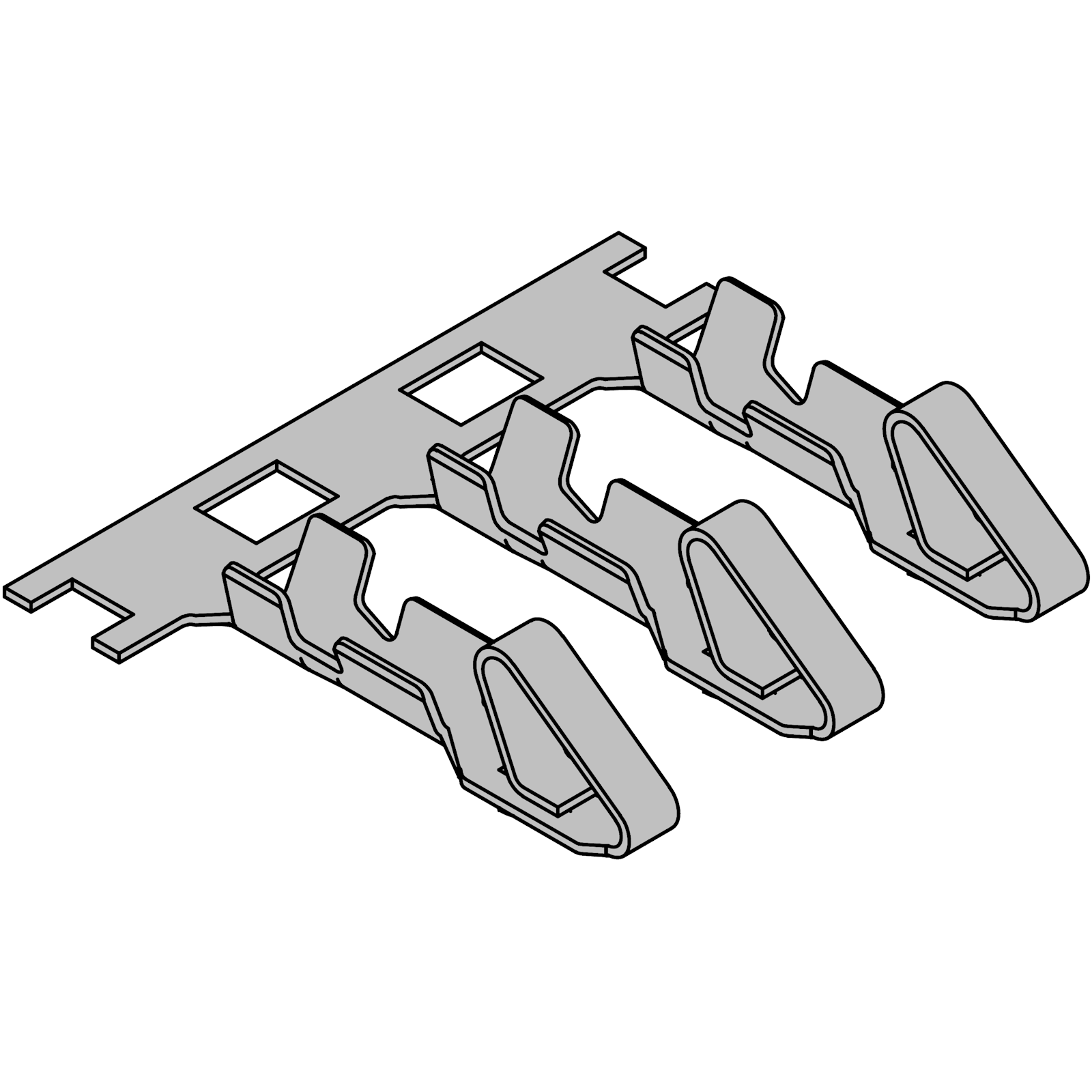

2510 Plug Crimp Terminal

2510 Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Specification

Part Number2510-254-YT
Part TypePlug Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name2510-254
Pin Pitch2.54mm
Maximum Voltage250V
Maximum Current4.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size28AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.9mm
Compatible PC Board Thickness1.6mm
Compatibility
  • Molex KK 5051
  • Molex KK254
View full details

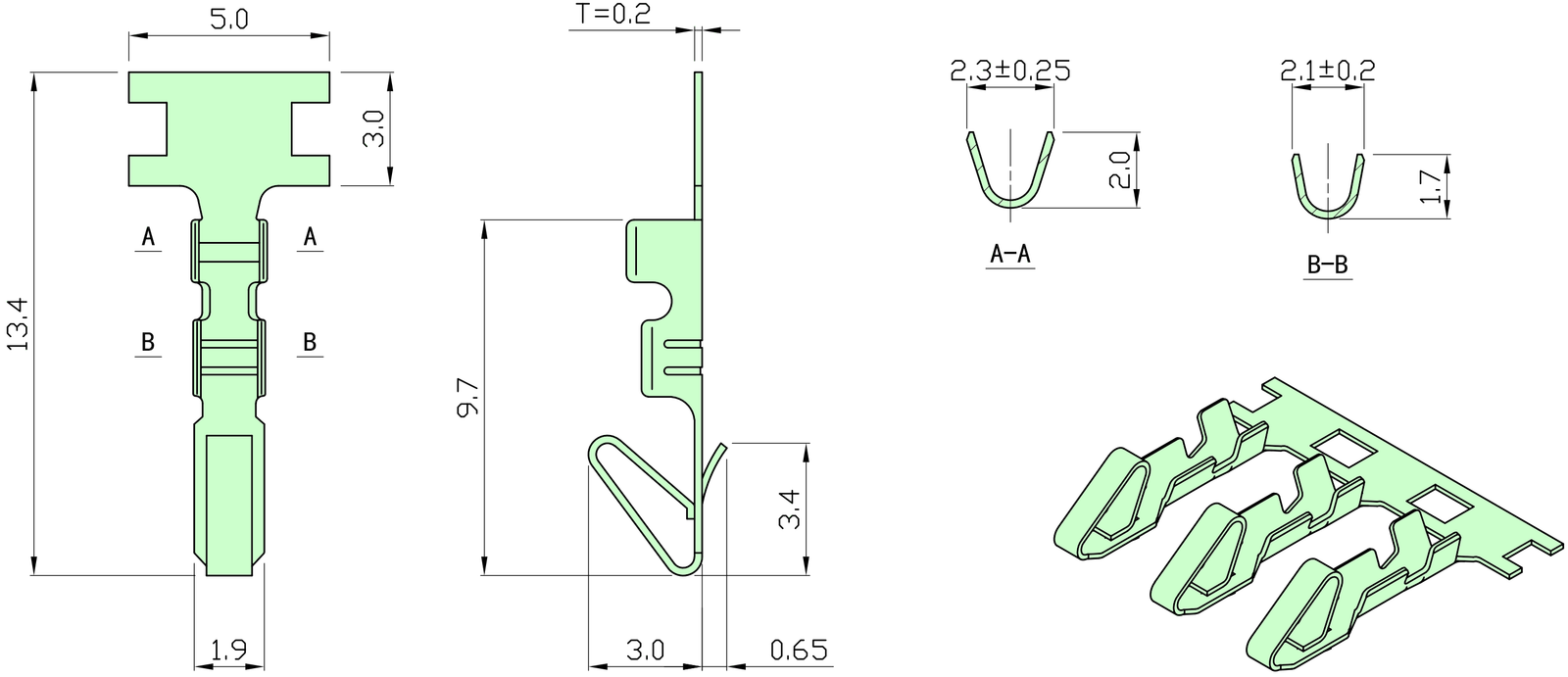

Diagram
