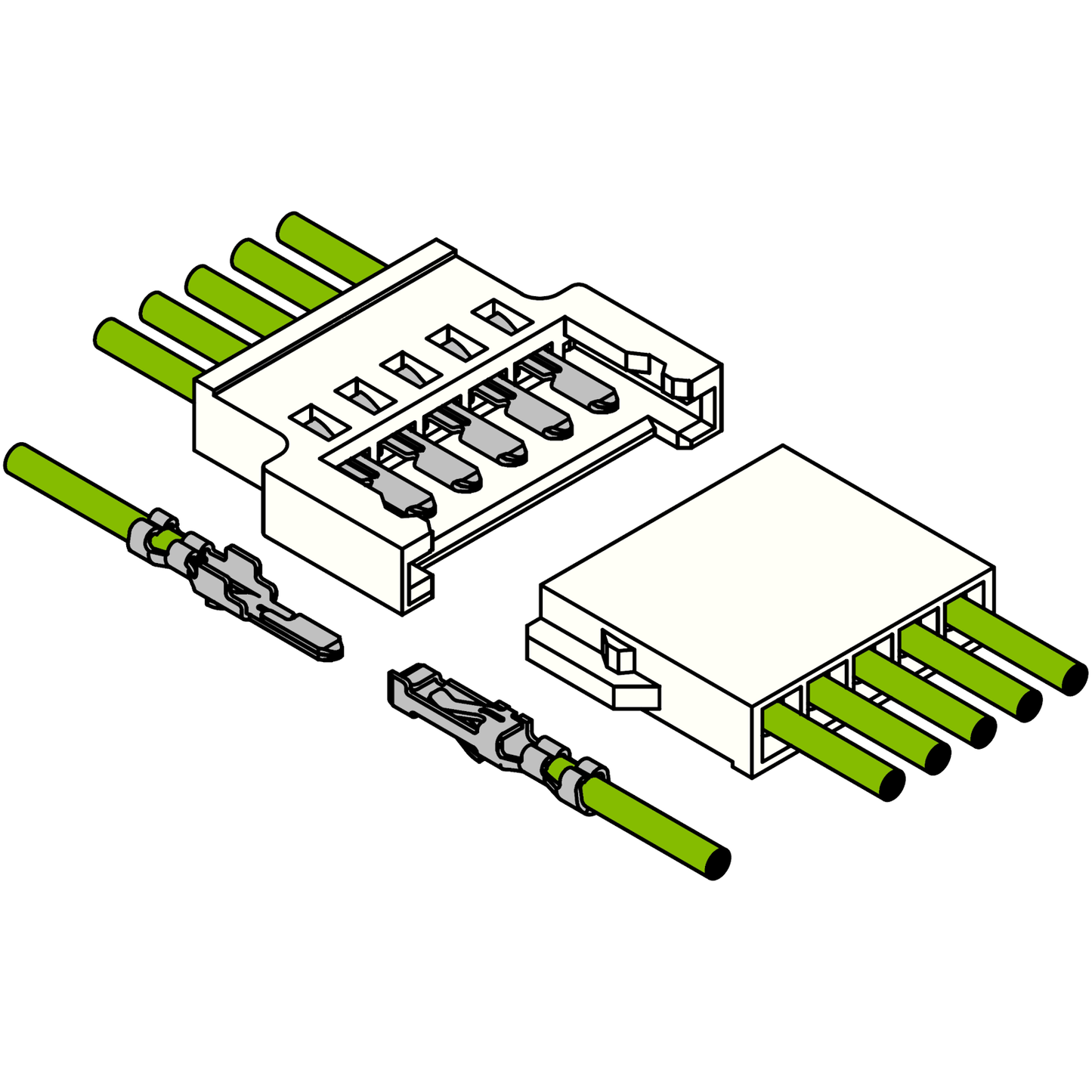

51005 / 51006 Wire-to-Wire Connectors

51005 / 51006 Wire-to-Wire Connectors

1 1

Series Specification

Series Name 51005-51006-200
Pin Pitch 2.0mm
Maximum Voltage 125V
Maximum Current 2.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 500V AC/min
Compatible Wire Size 28AWG ~ 24AWG
Compatibility
  • Molex 51005
  • Molex 51006

On This Page

View full details

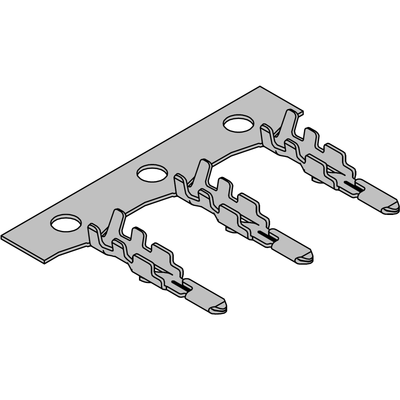

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
51006-200-YT 🖼️
1+£0.0300
50+£0.0270
100+£0.0240
200+£0.0210
500+£0.0165
1000+£0.0150
7,000+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
51006-200-2Y 🖼️
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
1,500+ in stock
(0 in cart)
3-pin
51006-200-3Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
700+ in stock
(0 in cart)
4-pin

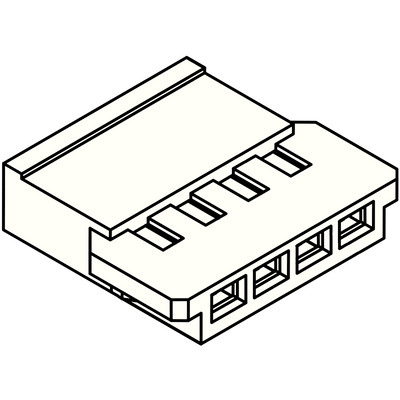

51006-200-4Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
700+ in stock
(0 in cart)
5-pin
51006-200-5Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
700+ in stock
(0 in cart)
6-pin
51006-200-6Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
700+ in stock
(0 in cart)
7-pin
51006-200-7Y 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
800+ in stock
(0 in cart)
8-pin
51006-200-8Y 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
9-pin
51006-200-9Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
800 in stock
(0 in cart)
10-pin
51006-200-10Y 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
800 in stock
(0 in cart)
11-pin
51006-200-11Y 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
800 in stock
(0 in cart)
12-pin
51006-200-12Y 🖼️
1+£0.1500
5+£0.1358
10+£0.1185
20+£0.1035
50+£0.0915
100+£0.0750
750+ in stock
(0 in cart)

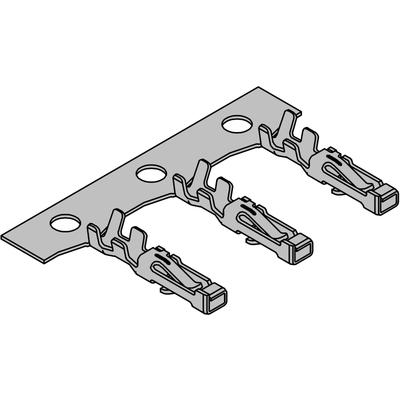

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
51005-200-RT 🖼️
1+£0.0300
50+£0.0270
100+£0.0240
200+£0.0210
500+£0.0165
1000+£0.0150
7,000 in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
51005-200-2R 🖼️
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
1,600+ in stock
(0 in cart)
3-pin
51005-200-3R 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
700+ in stock
(0 in cart)
4-pin

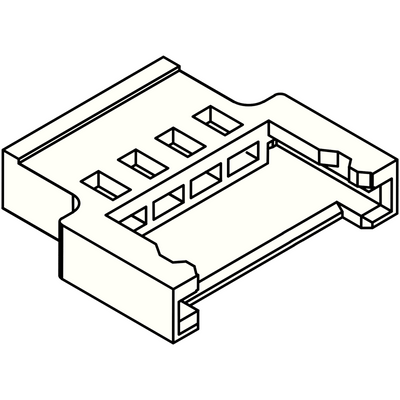

51005-200-4R 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
700+ in stock
(0 in cart)
5-pin
51005-200-5R 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
700+ in stock
(0 in cart)
6-pin
51005-200-6R 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
700+ in stock
(0 in cart)
7-pin
51005-200-7R 🖼️
1+£0.1000
10+£0.0905
20+£0.0790
50+£0.0690
100+£0.0610
500+£0.0500
750+ in stock
(0 in cart)
8-pin
51005-200-8R 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
9-pin
51005-200-9R 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
800 in stock
(0 in cart)
10-pin
51005-200-10R 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
800 in stock
(0 in cart)
11-pin
51005-200-11R 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
800 in stock
(0 in cart)
12-pin
51005-200-12R 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
750+ in stock
(0 in cart)
