5102 / 5240 Wire-to-Wire Connectors

5102 / 5240 Wire-to-Wire Connectors

1 1

Series Specification

Series Name 5102-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Compatibility
  • Molex 5102
  • Molex 5240

On This Page

View full details

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
5102-250-YT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
5,500+ in stock
(0 in cart)

Plug Housing (Black)

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5102-250-2Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
550+ in stock
(0 in cart)
3-pin
5102-250-3Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
750+ in stock
(0 in cart)
4-pin

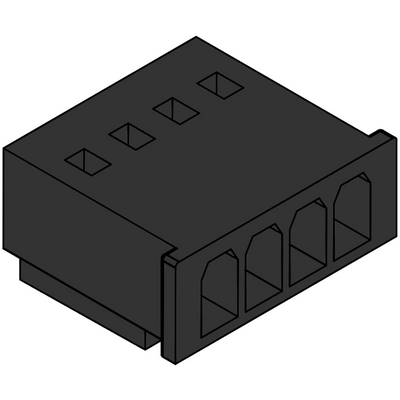

5102-250-4Y 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
650+ in stock
(0 in cart)

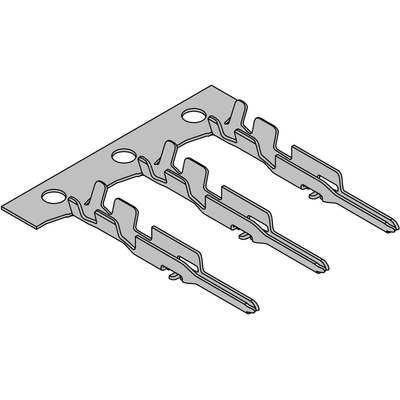

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
5240-250-RT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
6,000+ in stock
(0 in cart)

Wire Socket Housing (Black)

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5240-250-2R 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
1,500+ in stock
(0 in cart)
3-pin
5240-250-3R 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
600+ in stock
(0 in cart)
4-pin

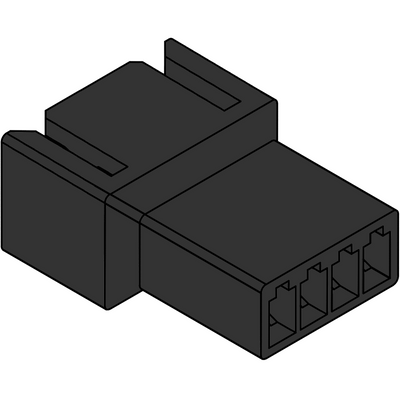

5240-250-4R 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
550+ in stock
(0 in cart)
