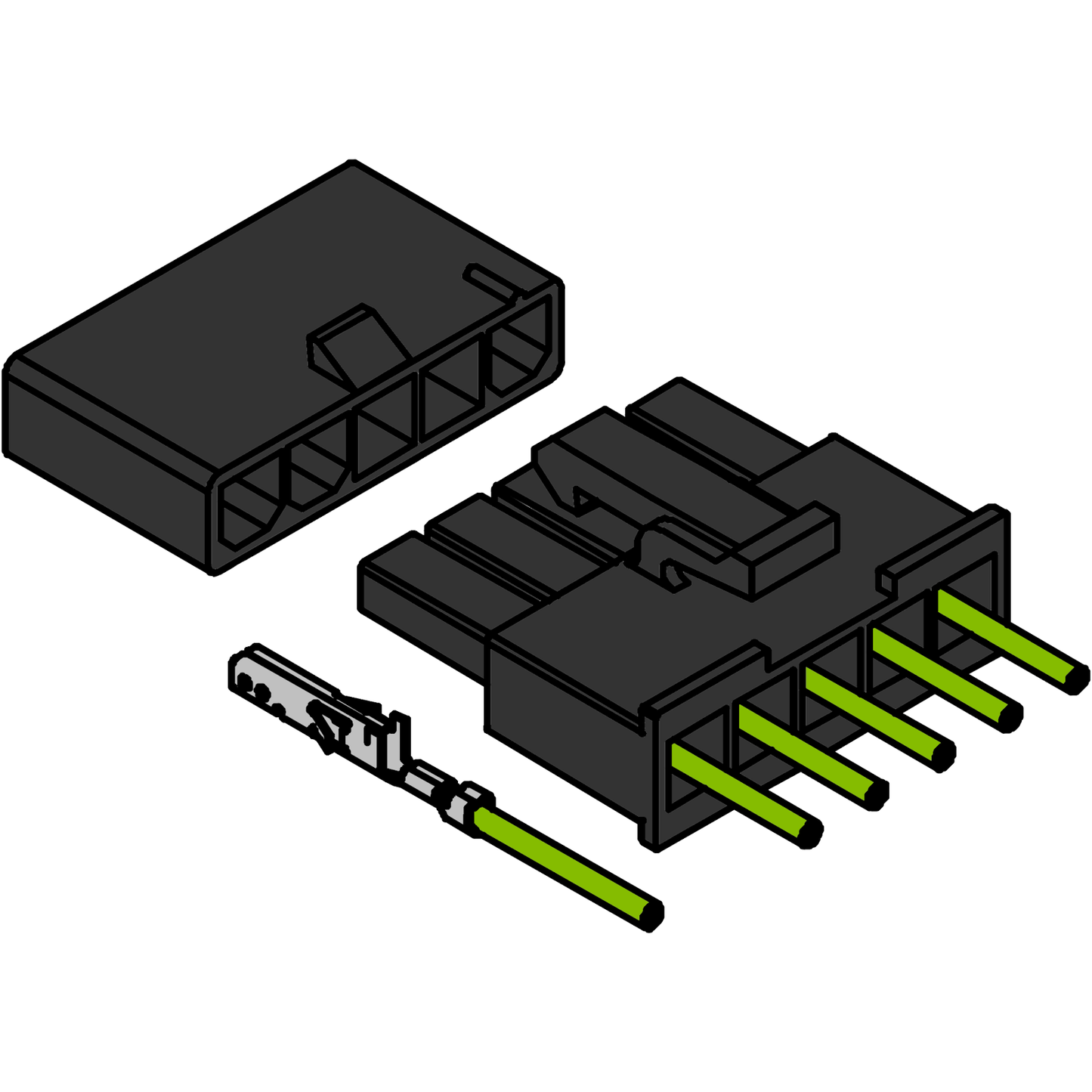

5557 / 5569 Wire-to-Board Connectors

5557 / 5569 Wire-to-Board Connectors

1 1

Series Specification

Series Name 5557-5559-5569-420
Pin Pitch 4.2mm
Maximum Voltage 300V
Maximum Current 9.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 15mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 28AWG ~ 16AWG
Wire Insulation Size (OD) 0.9mm ~ 2.7mm
Compatible PC Board Thickness 2.0mm
Compatibility Molex Mini-Fit Jr.

On This Page

View full details

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
5557-420-YT 🖼️
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
6,000+ in stock
(0 in cart)

Single Row Plug Housing (Black)

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5557-420-2Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
1,200+ in stock
(0 in cart)
3-pin
5557-420-3Y 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
650+ in stock
(0 in cart)
4-pin
5557-420-4Y 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
700+ in stock
(0 in cart)
5-pin
5557-420-5Y 🖼️
1+£0.2100
5+£0.1901
10+£0.1659
20+£0.1449
50+£0.1281
100+£0.1050
440 in stock
(0 in cart)

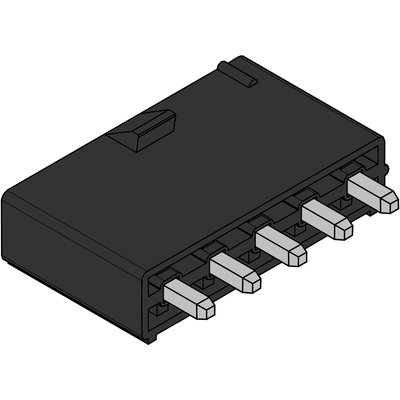

Straight PCB Socket (Black)

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0/V-2), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5569-420-2A 🖼️
1+£0.2600
5+£0.2353
10+£0.2054
20+£0.1794
50+£0.1586
100+£0.1300
350+ in stock
(0 in cart)
3-pin
5569-420-3A 🖼️
1+£0.3600
5+£0.3258
10+£0.2844
20+£0.2484
50+£0.2196
100+£0.1800
340+ in stock
(0 in cart)
4-pin
5569-420-3A 🖼️
1+£0.4500
5+£0.4073
10+£0.3555
20+£0.3105
50+£0.2745
100+£0.2250
370 in stock
(0 in cart)
-pin
5569-420-5A 🖼️
1+£0.5200
2+£0.4706
5+£0.4108
10+£0.3588
20+£0.3172
50+£0.2600
380+ in stock
(0 in cart)

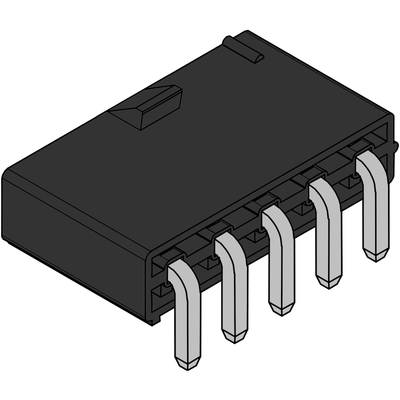

Angled PCB Socket (Black)

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0/V-2), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
5569-420-2AW 🖼️
1+£0.2800
5+£0.2534
10+£0.2212
20+£0.1932
50+£0.1708
100+£0.1400
450+ in stock
(0 in cart)
3-pin
5569-420-3AW 🖼️
1+£0.3600
5+£0.3258
10+£0.2844
20+£0.2484
50+£0.2196
100+£0.1800
380+ in stock
(0 in cart)
4-pin
5569-420-4AW 🖼️
1+£0.4600
5+£0.4163
10+£0.3634
20+£0.3174
50+£0.2806
100+£0.2300
390+ in stock
(0 in cart)
5-pin
5569-420-5AW 🖼️
1+£0.4900
5+£0.4435
10+£0.3871
20+£0.3381
50+£0.2989
100+£0.2450
390+ in stock
(0 in cart)
