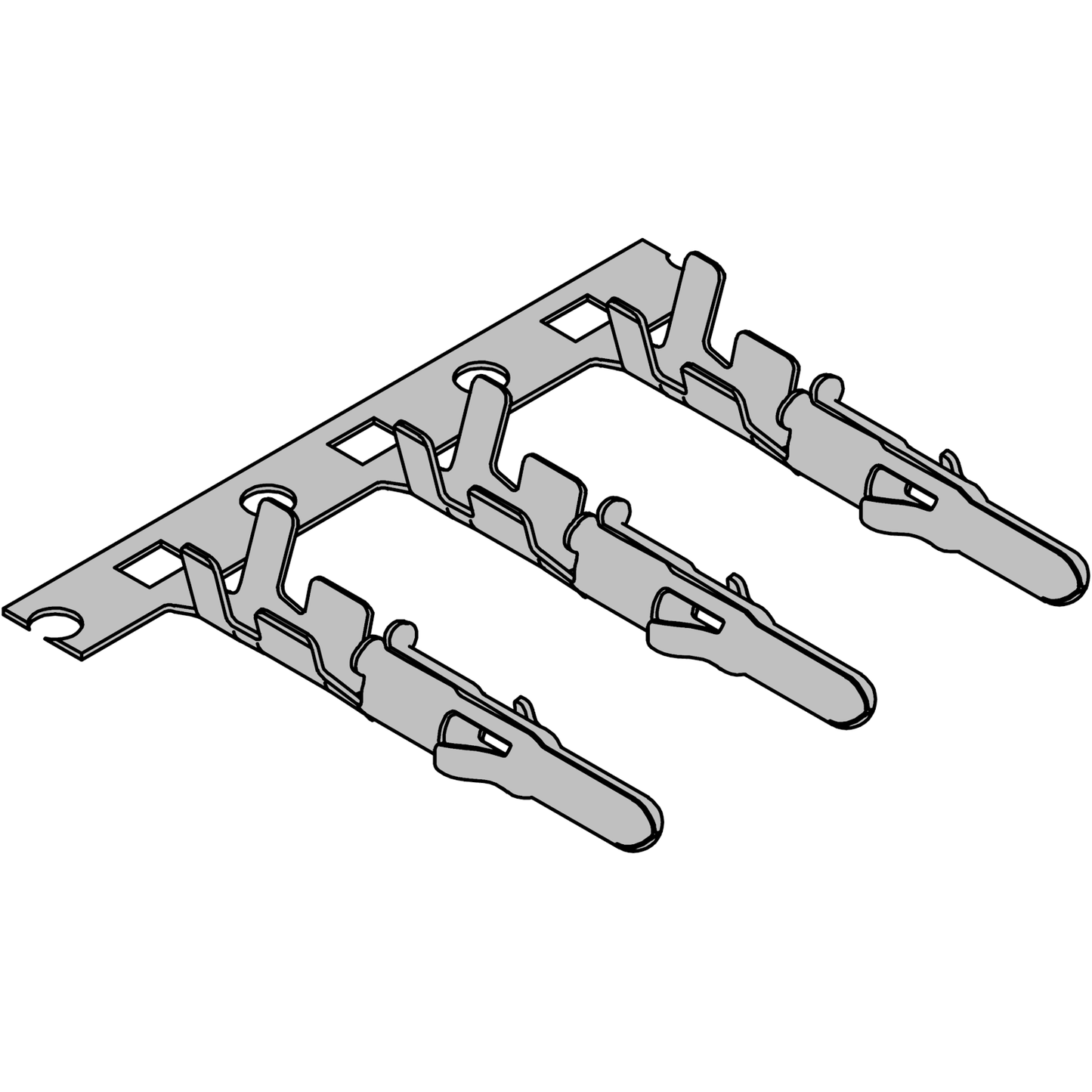

5600 Wire Socket Crimp Terminal

5600 Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.06
50+ £0.054
100+ £0.048
200+ £0.042
500+ £0.033
1000+ £0.03

Part Information

Part Number 5600-368-RT
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name 5500-5600-368
Pin Pitch 3.68mm
Maximum Voltage 250V
Maximum Current 5.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 18AWG
Wire Insulation Size (OD) 1.5mm ~ 2.5mm
Compatibility
  • Molex 5500
  • Molex 5600
View full details

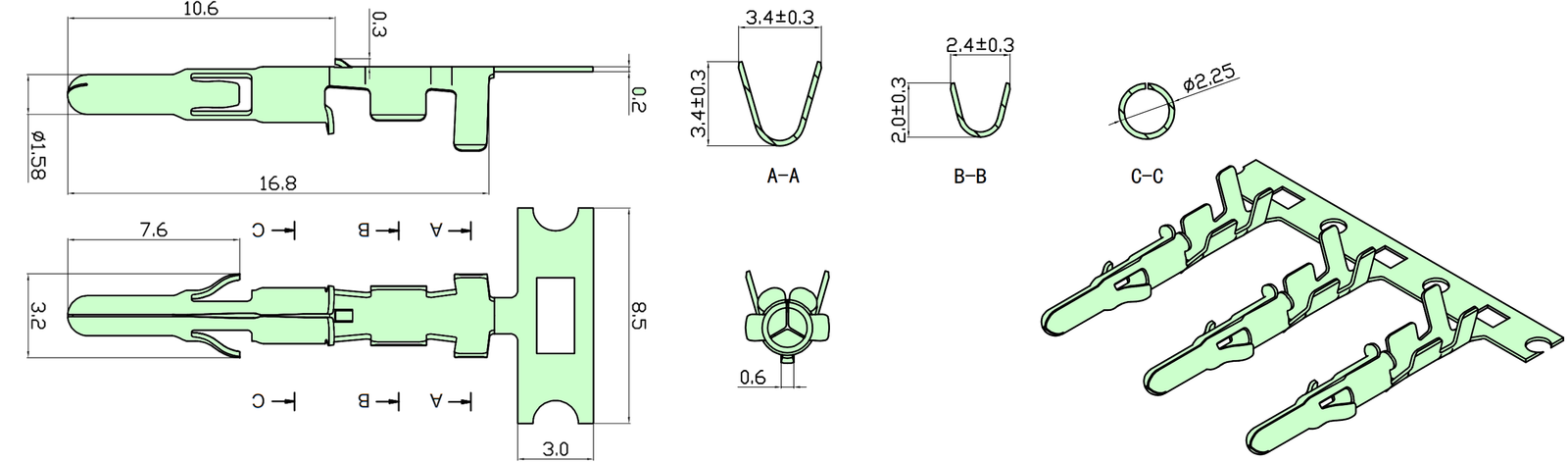

Diagram
