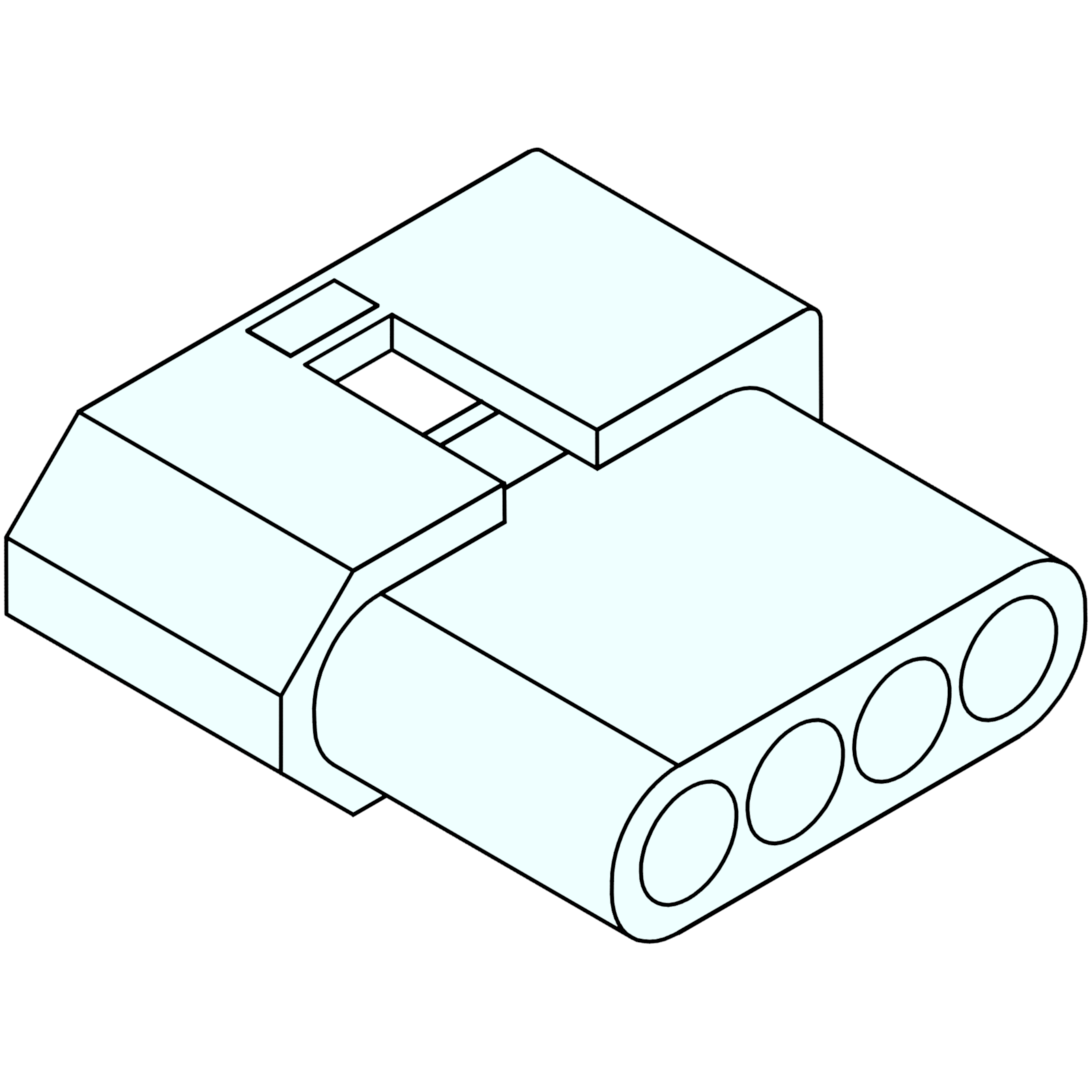

5600 Wire Socket Housing 4-pin

5600 Wire Socket Housing 4-pin

1 1
Quantity Unit Price
1+ £0.19
5+ £0.17195
10+ £0.1501
20+ £0.1311
50+ £0.1159
100+ £0.095

Part Information

Part Number 5600-368-4R
Row Count 1
Pin Count 4
Colour Translucent
Materials
  • Nylon PA66 (UL94V-0/V-2)

Series Specification

Series Name 5500-5600-368
Pin Pitch 3.68mm
Maximum Voltage 250V
Maximum Current 5.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 18AWG
Wire Insulation Size (OD) 1.5mm ~ 2.5mm
Compatibility
  • Molex 5500
  • Molex 5600
View full details

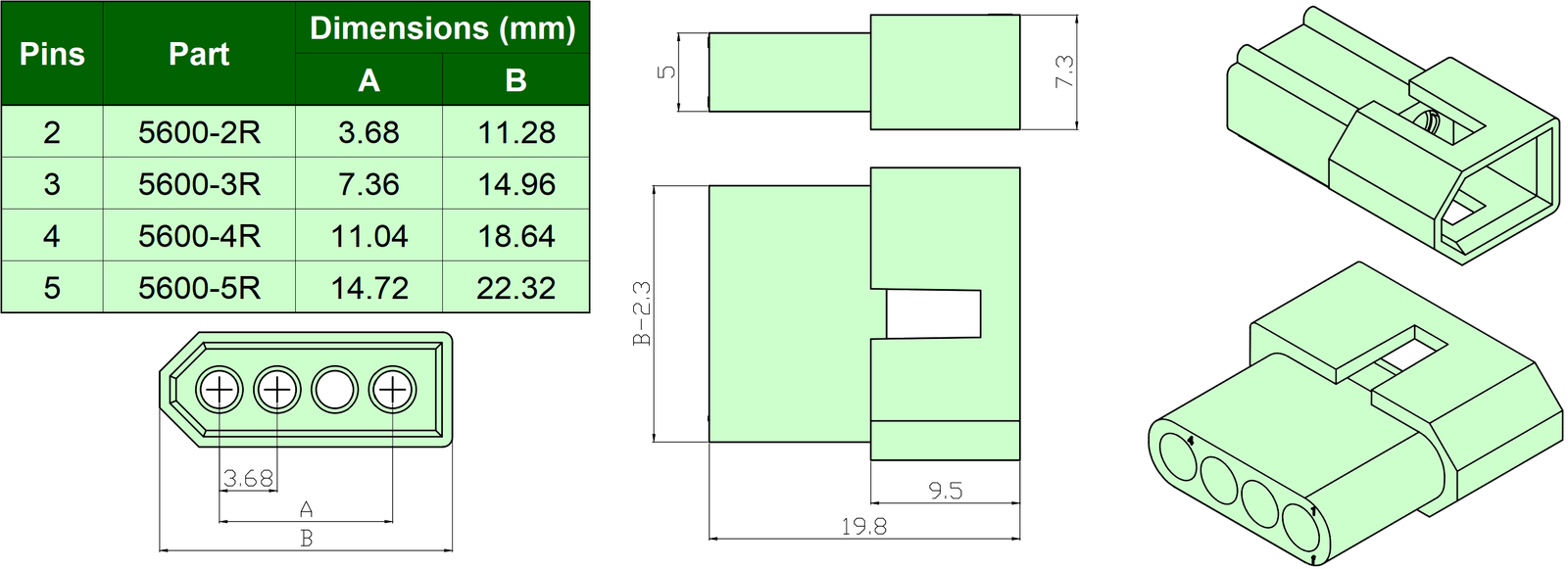

Diagram
