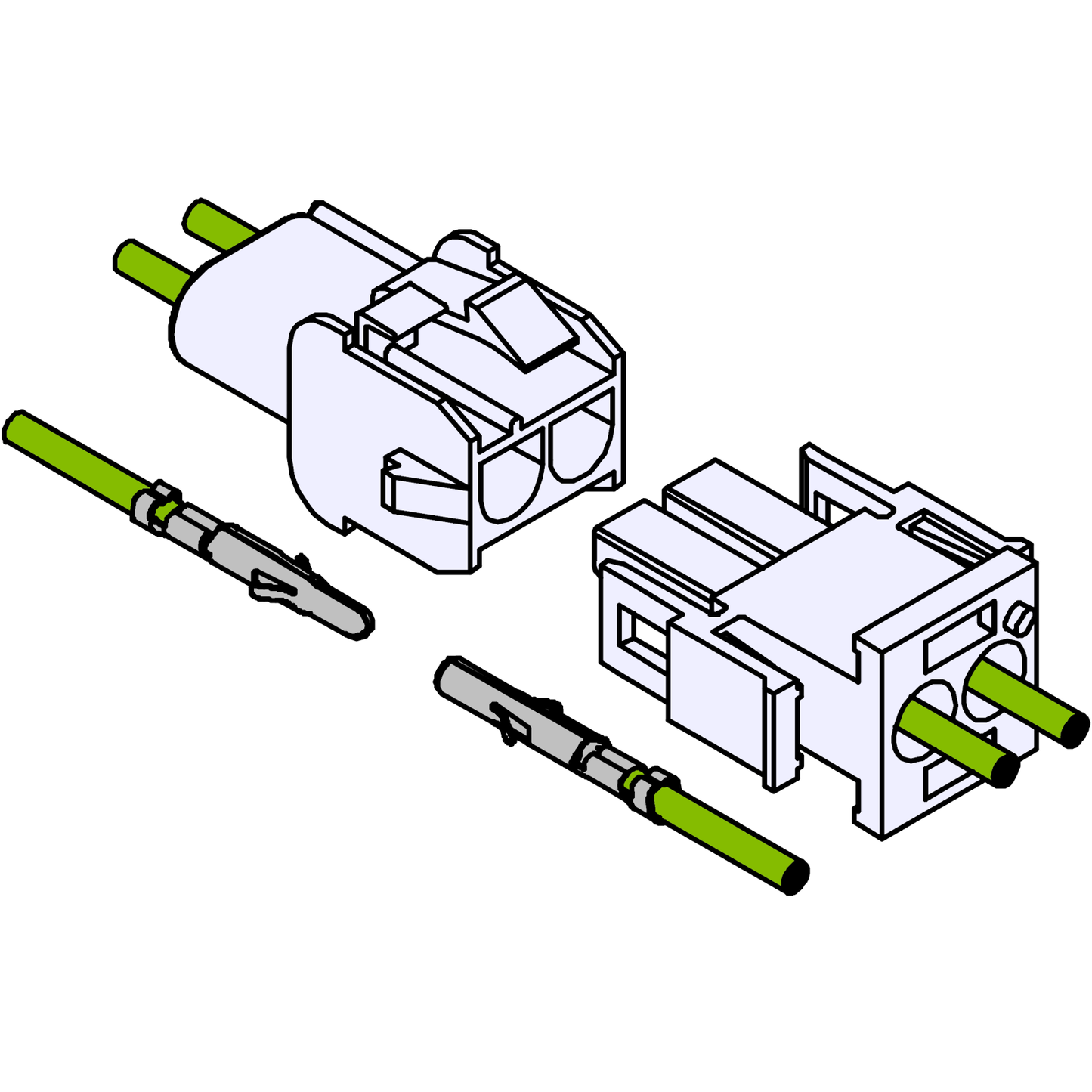

63080 Wire-to-Wire Connectors

63080 Wire-to-Wire Connectors

1 1

Series Specification

Series Name 63080-635
Pin Pitch 6.35mm
Maximum Voltage 300V
Maximum Current 12.0A
Temperature Range -25°C ~ 85°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 20AWG ~ 14AWG
Wire Insulation Size (OD) 2.4mm ~ 3.4mm
Compatible PC Board Thickness 1.6mm
Compatibility Molex MLX Power

On This Page

View full details

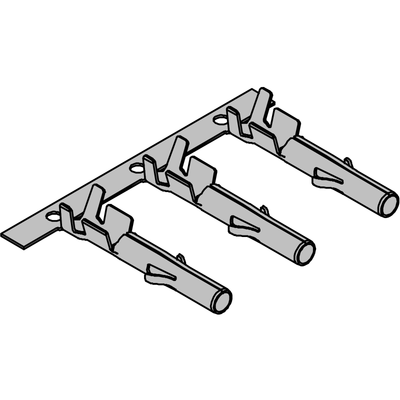

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
63080-635-YT
1+£0.0800
50+£0.0720
100+£0.0640
200+£0.0560
500+£0.0440
1000+£0.0400
2,800+ in stock
(0 in cart)

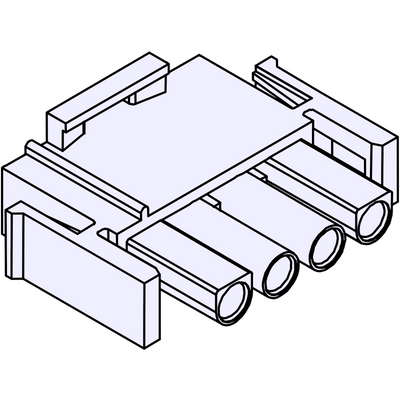

Plug Housing

  • Row Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
63080-635-2Y
1+£0.2400
5+£0.2172
10+£0.1896
20+£0.1656
50+£0.1464
100+£0.1200
550+ in stock
(0 in cart)
3-pin
63080-635-3Y
1+£0.3200
5+£0.2896
10+£0.2528
20+£0.2208
50+£0.1952
100+£0.1600
410+ in stock
(0 in cart)
4-pin
63080-635-4Y
1+£0.3900
5+£0.3530
10+£0.3081
20+£0.2691
50+£0.2379
100+£0.1950
650+ in stock
(0 in cart)
5-pin
63080-635-5Y
1+£0.4800
5+£0.4344
10+£0.3792
20+£0.3312
50+£0.2928
100+£0.2400
370 in stock
(0 in cart)

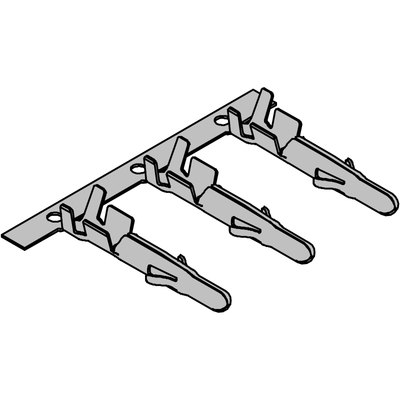

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
63080-635-RT
1+£0.0800
50+£0.0720
100+£0.0640
200+£0.0560
500+£0.0440
1000+£0.0400
3,000+ in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
63080-635-2R
1+£0.2400
5+£0.2172
10+£0.1896
20+£0.1656
50+£0.1464
100+£0.1200
550+ in stock
(0 in cart)
3-pin
63080-635-3R
1+£0.3400
5+£0.3077
10+£0.2686
20+£0.2346
50+£0.2074
100+£0.1700
450+ in stock
(0 in cart)
4-pin
63080-635-4R
1+£0.4300
5+£0.3892
10+£0.3397
20+£0.2967
50+£0.2623
100+£0.2150
650+ in stock
(0 in cart)
5-pin
63080-635-5R
1+£0.5300
2+£0.4797
5+£0.4187
10+£0.3657
20+£0.3233
50+£0.2650
360+ in stock
(0 in cart)
