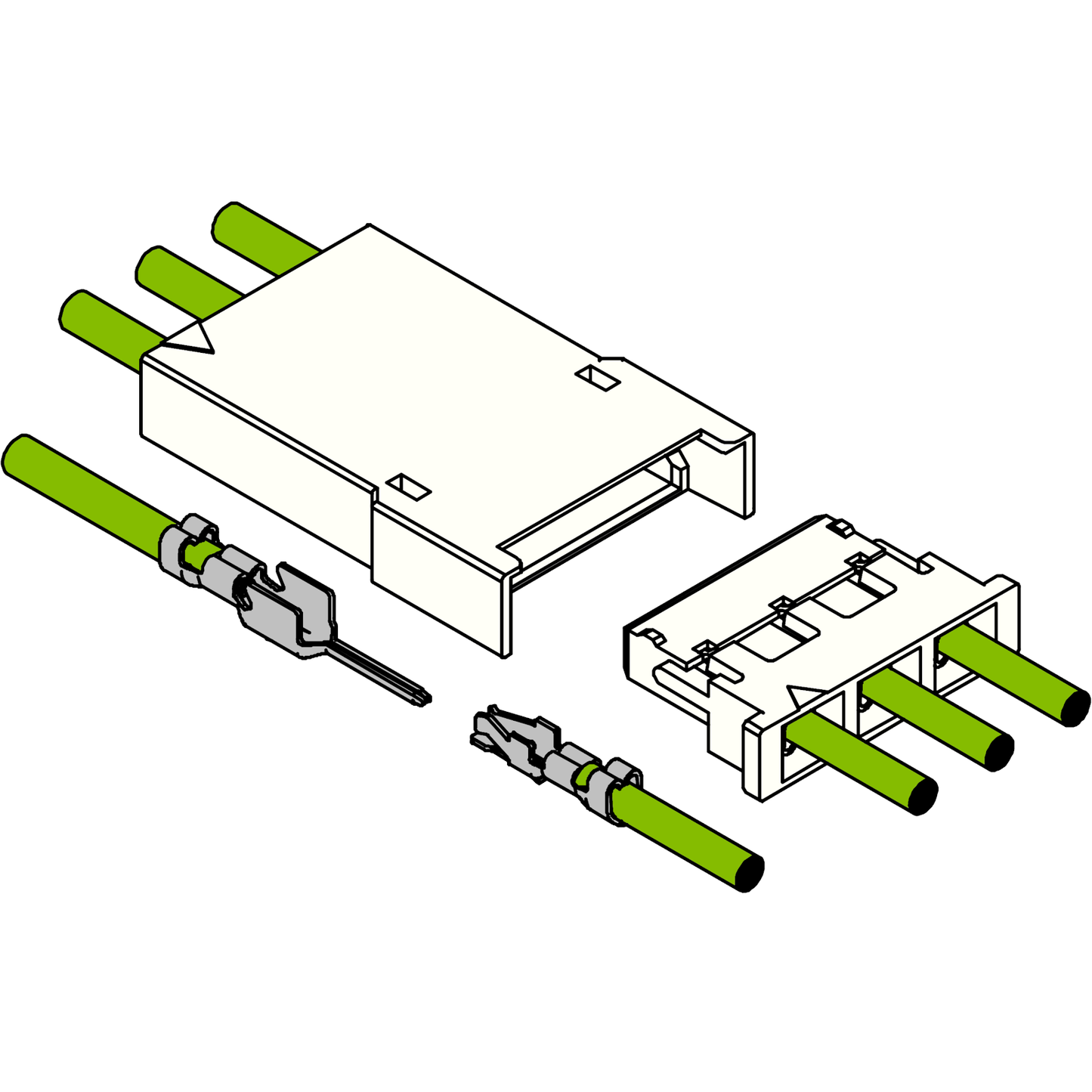

BH4.0 Wire-to-Wire Connectors

BH4.0 Wire-to-Wire Connectors

1 1

Series Specification

Series Name BH-400
Pin Pitch 4.0mm
Maximum Voltage 600V
Maximum Current 1.0A
Temperature Range -25°C ~ 85°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1800V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Compatibility JST BH

On This Page

View full details

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy

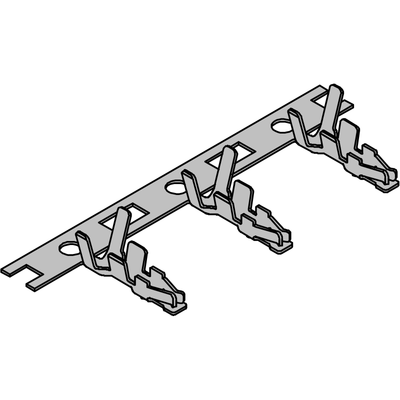

BH-400-YT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
2,900+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
BH-400-2Y 🖼️
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
700+ in stock
(0 in cart)
3-pin
BH-400-3Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
800 in stock
(0 in cart)
4-pin

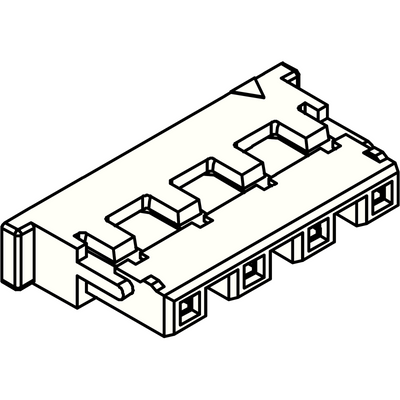

BH-400-4Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
750+ in stock
(0 in cart)
5-pin
BH-400-5Y 🖼️
1+£0.0800
0 in stock
(0 in cart)

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy

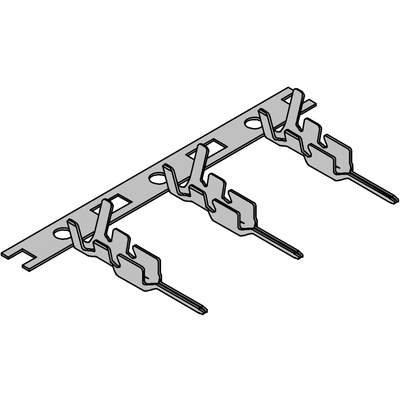

BH-400-RT 🖼️
1+£0.0300
50+£0.0270
100+£0.0240
200+£0.0210
500+£0.0165
1000+£0.0150
3,400+ in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
BH-400-2R 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
700+ in stock
(0 in cart)
3-pin
BH-400-3R 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
800 in stock
(0 in cart)
4-pin

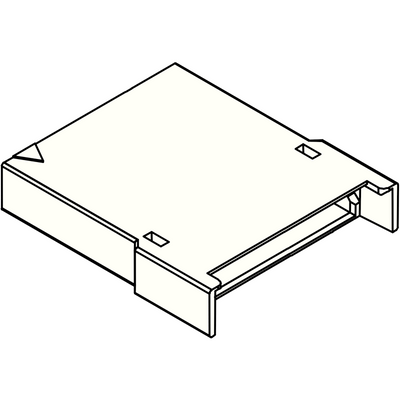

BH-400-4R 🖼️
1+£0.1100
0 in stock
(0 in cart)
5-pin
BH-400-5R 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
400 in stock
(0 in cart)
