EH Wire-to-Board Connectors

EH Wire-to-Board Connectors

1 1

Series Specification

Series Name EH-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 800V AC/min
Compatible Wire Size 32AWG ~ 22AWG
Compatible PC Board Thickness 1.6mm
Compatibility JST EH

On This Page

View full details

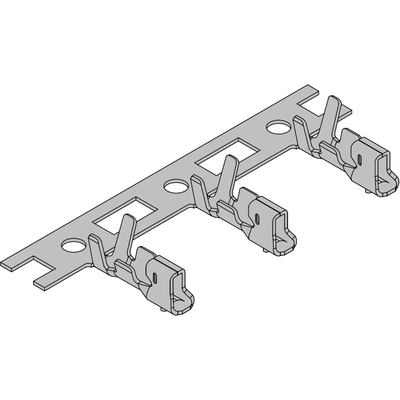

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
EH-250-YT 🖼️
1+£0.0300
50+£0.0270
100+£0.0240
200+£0.0210
500+£0.0165
1000+£0.0150
5,500+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EH-250-2Y 🖼️
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
2,400+ in stock
(0 in cart)
3-pin
EH-250-3Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
1,300+ in stock
(0 in cart)
4-pin
EH-250-4Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
2,500+ in stock
(0 in cart)
5-pin
EH-250-5Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
1,100+ in stock
(0 in cart)
6-pin
EH-250-6Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
1,000+ in stock
(0 in cart)
7-pin
EH-250-7Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
1,100+ in stock
(0 in cart)
8-pin
EH-250-8Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
350+ in stock
(0 in cart)

Straight PCB Socket

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EH-250-2A 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
390+ in stock
(0 in cart)
3-pin
EH-250-3A 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
550+ in stock
(0 in cart)
4-pin

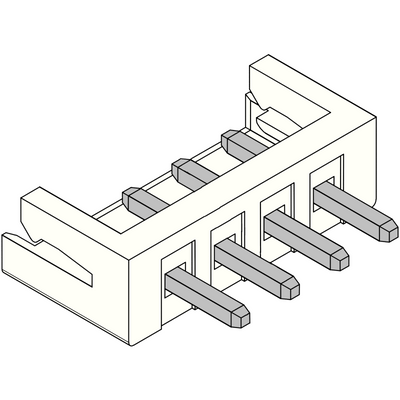

EH-250-4A 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
1,500+ in stock
(0 in cart)
5-pin
EH-250-5A 🖼️
1+£0.1500
5+£0.1358
10+£0.1185
20+£0.1035
50+£0.0915
88 in stock
(0 in cart)
6-pin
EH-250-6A 🖼️
1+£0.1800
5+£0.1629
10+£0.1422
20+£0.1242
50+£0.1098
100+£0.0900
750+ in stock
(0 in cart)
7-pin
EH-250-7A 🖼️
1+£0.2100
5+£0.1901
10+£0.1659
20+£0.1449
50+£0.1281
100+£0.1050
800+ in stock
(0 in cart)
8-pin
EH-250-8A 🖼️
1+£0.2200
5+£0.1991
10+£0.1738
20+£0.1518
50+£0.1342
100+£0.1100
650+ in stock
(0 in cart)

Angled PCB Socket

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EH-250-2AW 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
600+ in stock
(0 in cart)
3-pin
EH-250-3AW 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
1,400+ in stock
(0 in cart)
4-pin

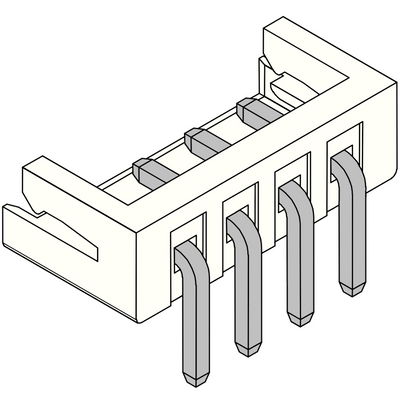

EH-250-4AW 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
850+ in stock
(0 in cart)
