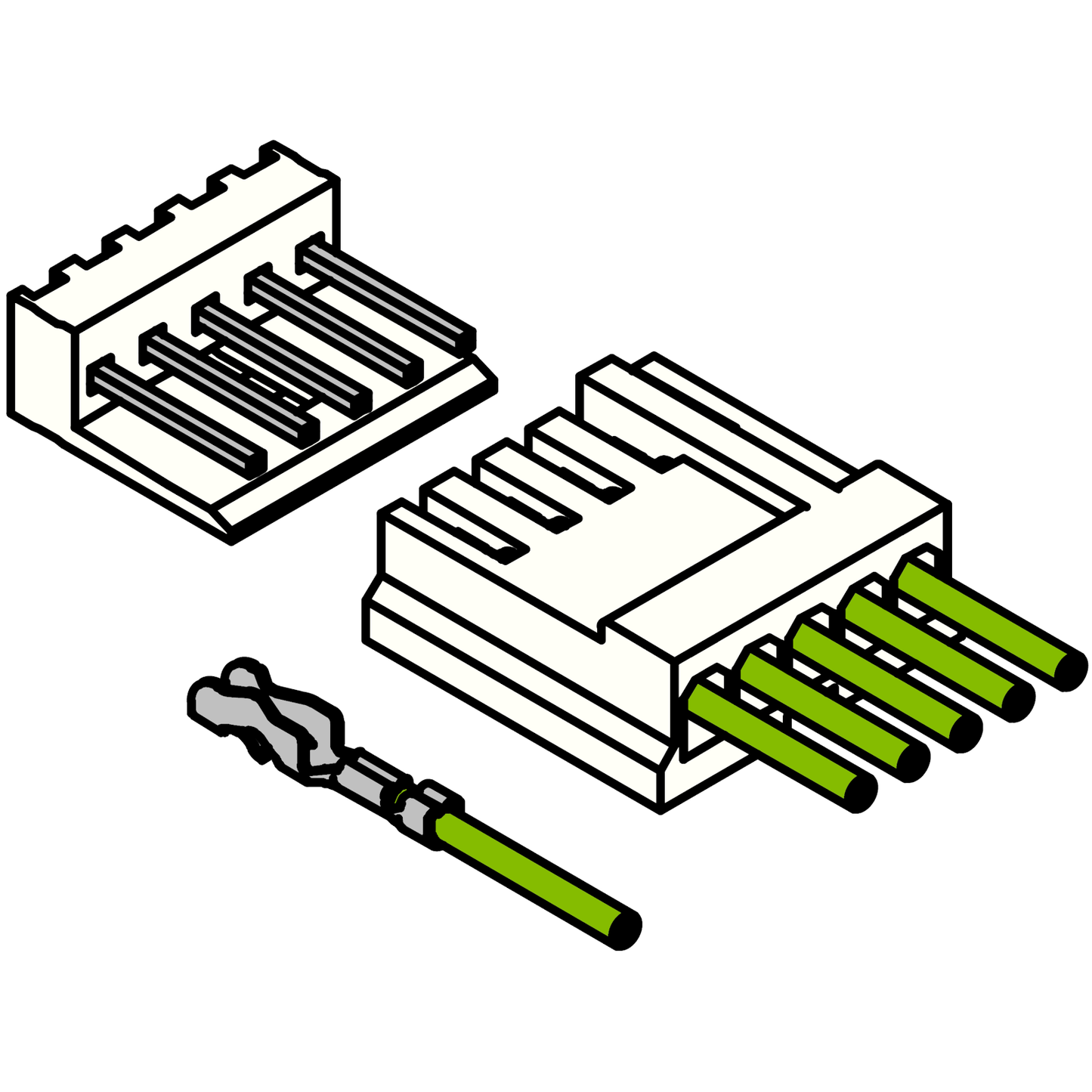

EI Wire-to-Board Connectors

EI Wire-to-Board Connectors

1 1

Series Specification

Series Name EI-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 26AWG ~ 20AWG
Compatible PC Board Thickness 1.6mm
Compatibility
  • AMP-TE EI
  • Berg

On This Page

View full details

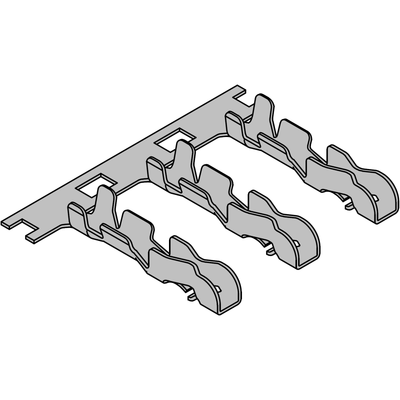

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
EI-250-YT 🖼️
1+£0.0500
50+£0.0450
100+£0.0400
200+£0.0350
500+£0.0275
1000+£0.0250
6,000+ in stock
(0 in cart)

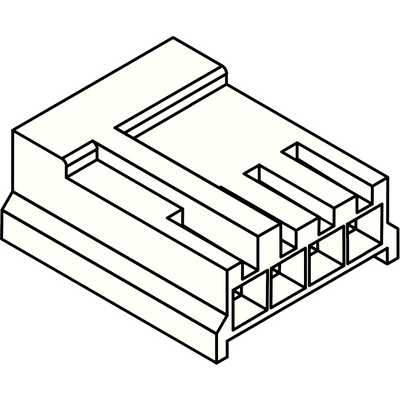

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EI-250-2Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
500+ in stock
(0 in cart)
3-pin
EI-250-3Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
430+ in stock
(0 in cart)
4-pin
EI-250-4Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
950+ in stock
(0 in cart)

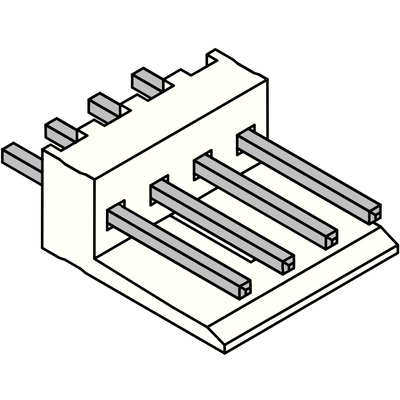

Straight PCB Socket

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EI-250-2A 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
500+ in stock
(0 in cart)
3-pin
EI-250-3A 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
550+ in stock
(0 in cart)
4-pin
EI-250-4A 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
440+ in stock
(0 in cart)

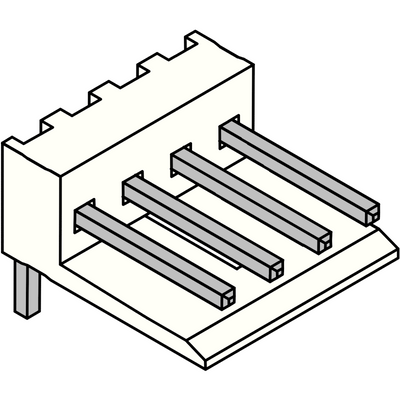

Angled PCB Socket

  • Row Count: 1
  • Pin Count: 4
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0), Brass, Tin
Diagram
Price (excl VAT) Buy
EI-250-4AW 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
500+ in stock
(0 in cart)
