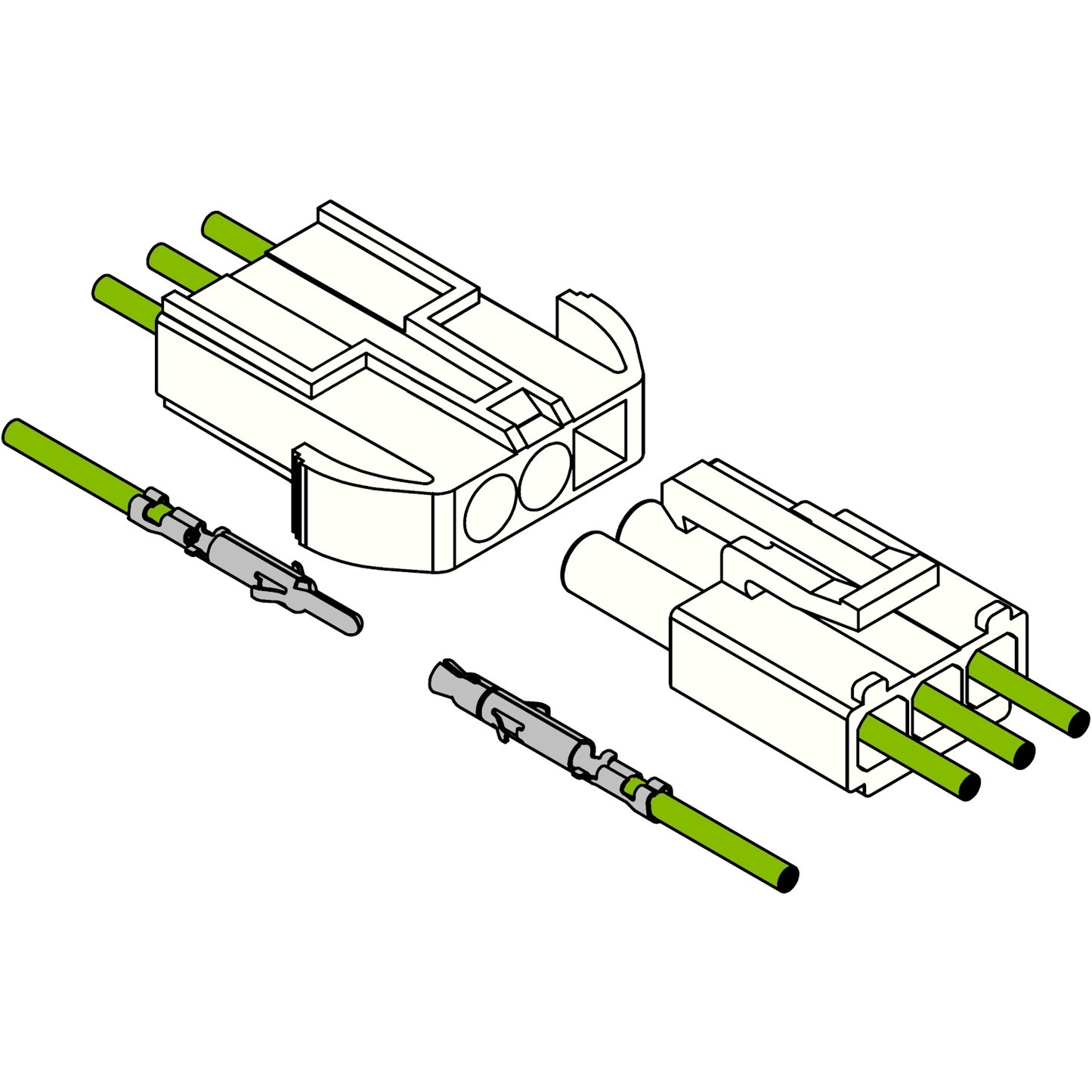

EL Wire-to-Wire Connectors

EL Wire-to-Wire Connectors

1 1

Series Specification

Series Name EL-450
Pin Pitch 4.5mm
Maximum Voltage 300V
Maximum Current 10.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 20AWG
Wire Insulation Size (OD) 1.5mm ~ 2.5mm
Compatibility JST EL

On This Page

View full details

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy

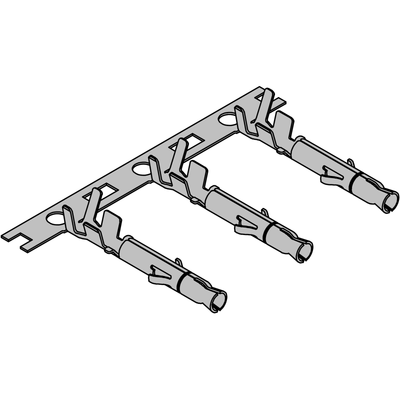

EL-450-YT 🖼️
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
2,100+ in stock
(0 in cart)

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EL-450-2Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
120+ in stock
(0 in cart)
3-pin
EL-450-3Y 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
310+ in stock
(0 in cart)
4-pin

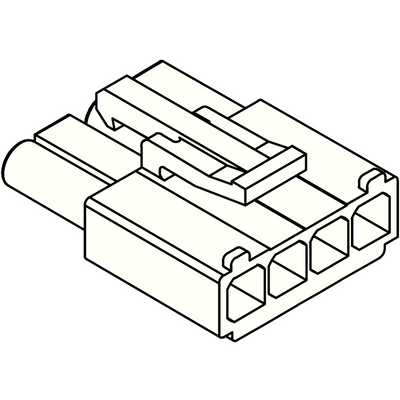

EL-450-4Y 🖼️
1+£0.2100
5+£0.1901
10+£0.1659
20+£0.1449
50+£0.1281
100+£0.1050
360+ in stock
(0 in cart)

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy

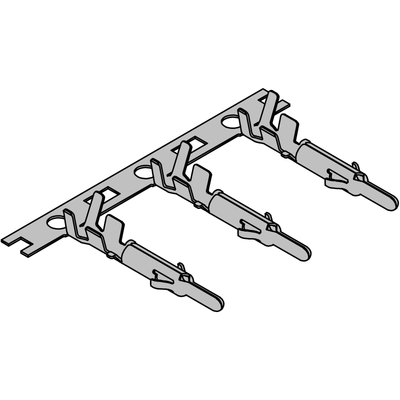

EL-450-RT 🖼️
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
2,100+ in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
EL-450-2R 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
130+ in stock
(0 in cart)
3-pin
EL-450-3R 🖼️
1+£0.2000
5+£0.1810
10+£0.1580
20+£0.1380
50+£0.1220
100+£0.1000
310+ in stock
(0 in cart)
4-pin

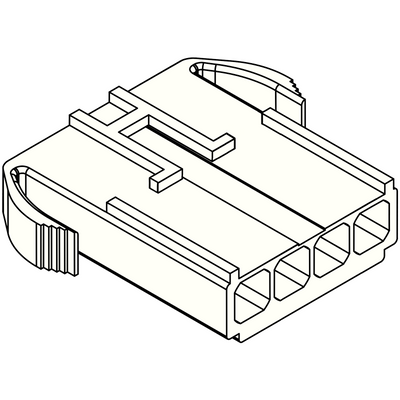

EL-450-4R 🖼️
1+£0.2300
5+£0.2082
10+£0.1817
20+£0.1587
50+£0.1403
100+£0.1150
360+ in stock
(0 in cart)
