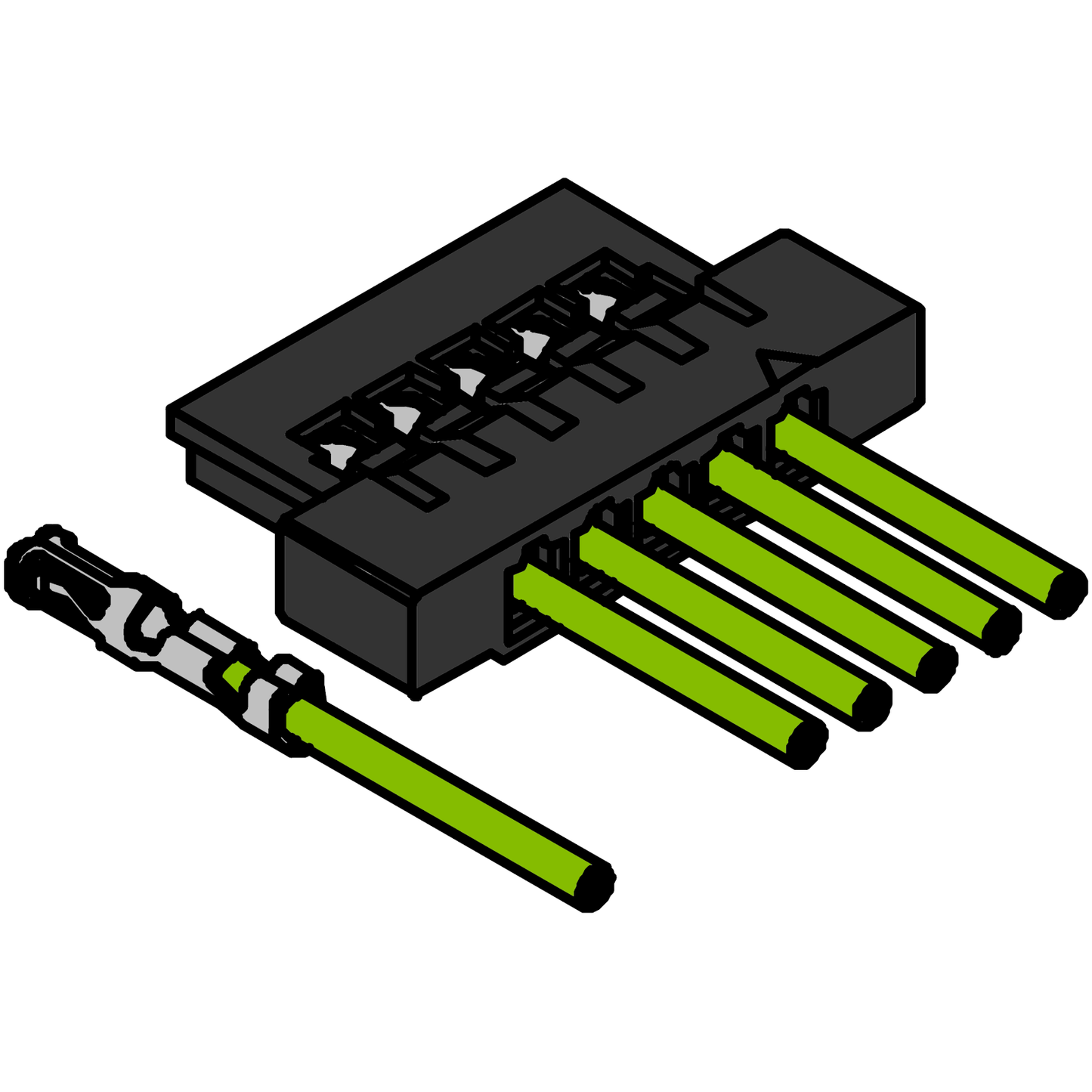

FI Wire-to-Board Connectors

FI Wire-to-Board Connectors

1 1

Series Specification

Series Name FI-125
Pin Pitch 1.25mm
Maximum Voltage 200V
Maximum Current 1.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 40mΩ
Insulation Resistance 100MΩ
Withstand Voltage 500V AC/min
Compatible Wire Size 32AWG ~ 28AWG
Compatibility JAE FI

On This Page

View full details

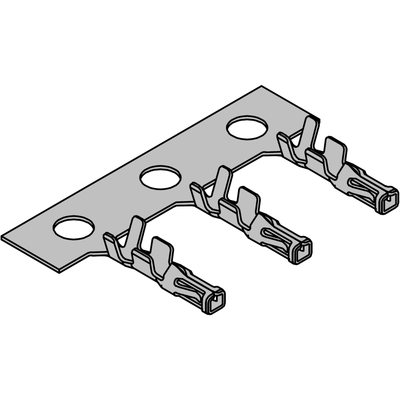

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
FI-125-YT
1+£0.0500
50+£0.0450
100+£0.0400
200+£0.0350
500+£0.0275
1000+£0.0250
11,000+ in stock
(0 in cart)

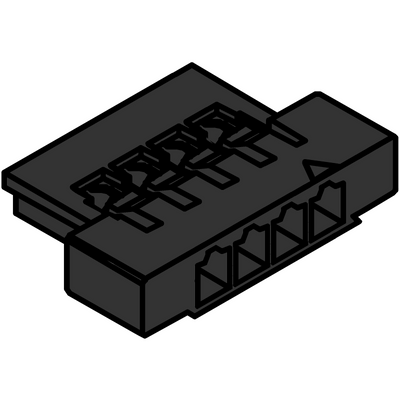

Plug Housing

  • Row Count: 1
  • Colour: Black
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
FI-125-2Y
1+£0.0400
10+£0.0362
20+£0.0316
50+£0.0276
100+£0.0244
500+£0.0200
750+ in stock
(0 in cart)
3-pin
FI-125-3Y
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
800 in stock
(0 in cart)
4-pin
FI-125-4Y
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
800 in stock
(0 in cart)
5-pin
FI-125-5Y
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
800 in stock
(0 in cart)
6-pin
FI-125-6Y
1+£0.1000
10+£0.0905
20+£0.0790
50+£0.0690
100+£0.0610
500+£0.0500
750+ in stock
(0 in cart)
7-pin
FI-125-7Y
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
8-pin
FI-125-8Y
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
800 in stock
(0 in cart)
9-pin
FI-125-9Y
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
800 in stock
(0 in cart)
10-pin
FI-125-10Y
1+£0.1500
5+£0.1358
10+£0.1185
20+£0.1035
50+£0.0915
100+£0.0750
800 in stock
(0 in cart)
12-pin
FI-125-12Y
1+£0.1800
5+£0.1629
10+£0.1422
20+£0.1242
50+£0.1098
100+£0.0900
800 in stock
(0 in cart)
