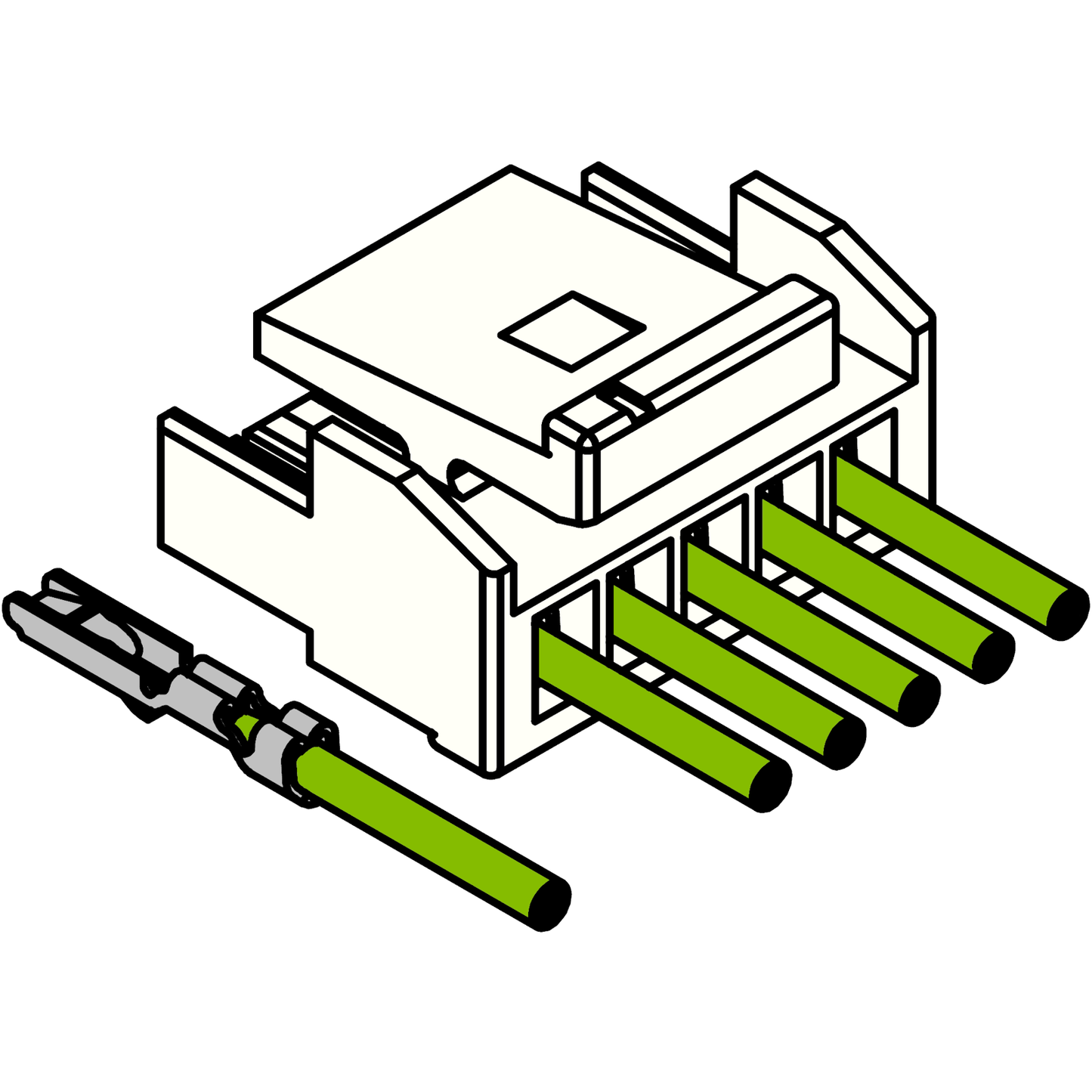

GH Wire-to-Board Connectors

GH Wire-to-Board Connectors

1 1

Series Specification

Series Name GH-125
Pin Pitch 1.25mm
Maximum Voltage 500V
Maximum Current 1.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 30mΩ
Insulation Resistance 100MΩ
Withstand Voltage 500V AC/min
Compatible Wire Size 30AWG ~ 26AWG
Wire Insulation Size (OD) 0.7mm ~ 1.0mm
Compatibility JST GH

On This Page

View full details

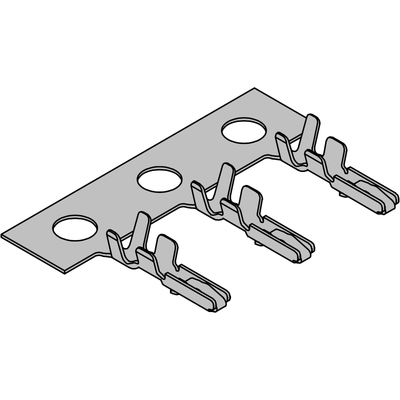

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
GH-125-YT 🖼️
1+£0.0300
50+£0.0270
100+£0.0240
200+£0.0210
500+£0.0165
1000+£0.0150
21,000+ in stock
(0 in cart)

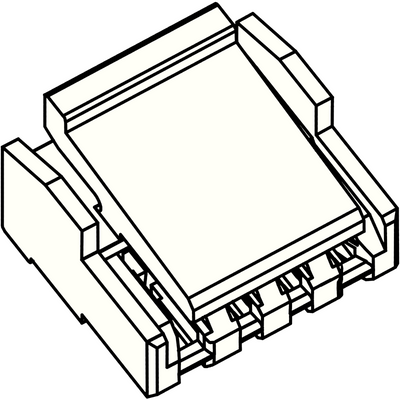

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
GH-125-2Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
1,400+ in stock
(0 in cart)
3-pin
GH-125-3Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
1,100+ in stock
(0 in cart)
4-pin
GH-125-4Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
1,100+ in stock
(0 in cart)
5-pin
GH-125-5Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
1,100+ in stock
(0 in cart)
6-pin
GH-125-6Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
1,300+ in stock
(0 in cart)
7-pin
GH-125-7Y 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
750+ in stock
(0 in cart)
8-pin
GH-125-8Y 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
550+ in stock
(0 in cart)
9-pin
GH-125-9Y 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
10-pin
GH-125-10Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
700+ in stock
(0 in cart)
11-pin
GH-125-11Y 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
800 in stock
(0 in cart)
12-pin
GH-125-12Y 🖼️
1+£0.1500
5+£0.1358
10+£0.1185
20+£0.1035
50+£0.0915
100+£0.0750
750+ in stock
(0 in cart)
