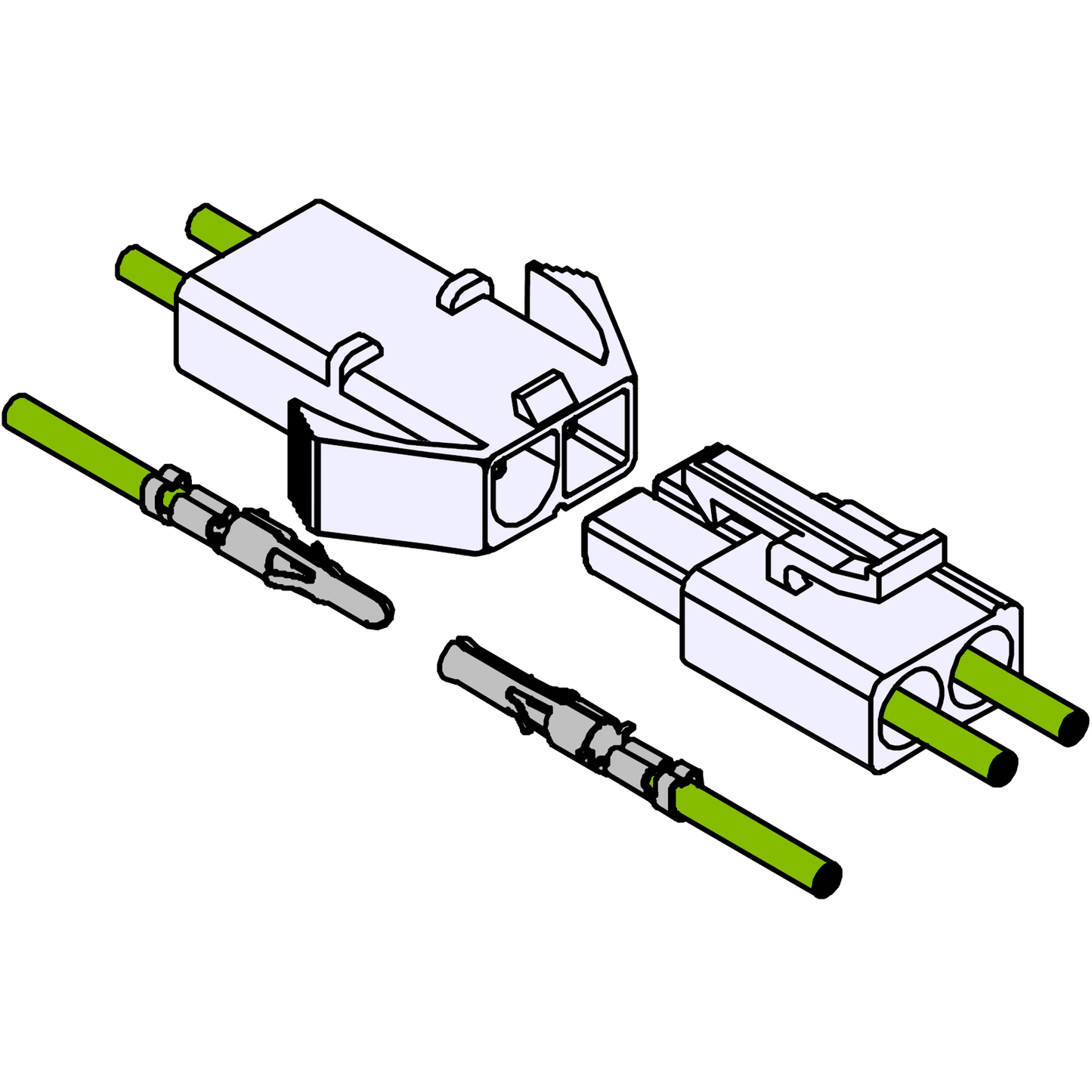

L6.2 Wire-to-Wire Connectors

L6.2 Wire-to-Wire Connectors

1 1

Series Specification

Series Name L6.2-620
Pin Pitch 6.2mm
Maximum Voltage 300V
Maximum Current 13.0A
Temperature Range -25°C ~ 85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 26AWG ~ 20AWG
Wire Insulation Size (OD) 1.7mm ~ 3.4mm
Compatible PC Board Thickness 2.0mm
Compatibility KET ø2.0

On This Page

View full details

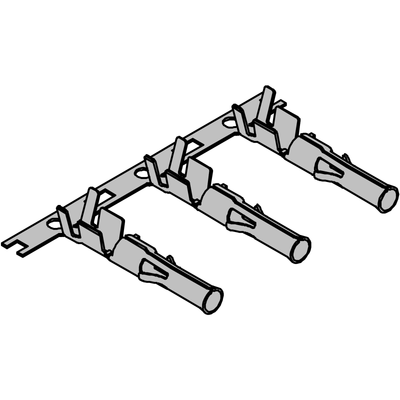

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
L6.2-620-YT 🖼️
1+£0.0900
50+£0.0810
100+£0.0720
200+£0.0630
500+£0.0495
1000+£0.0450
2,400+ in stock
(0 in cart)

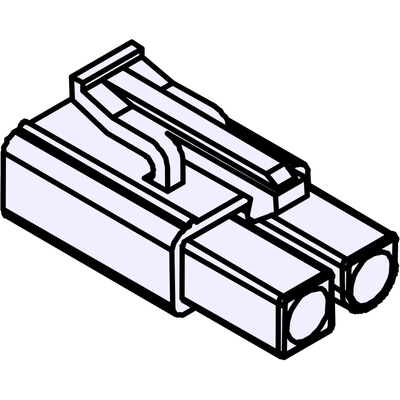

Plug Housing

  • Row Count: 1
  • Pin Count: 2
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Price (excl VAT) Buy
L6.2-620-2Y 🖼️
1+£0.3000
5+£0.2715
10+£0.2370
20+£0.2070
50+£0.1830
100+£0.1500
1,300+ in stock
(0 in cart)

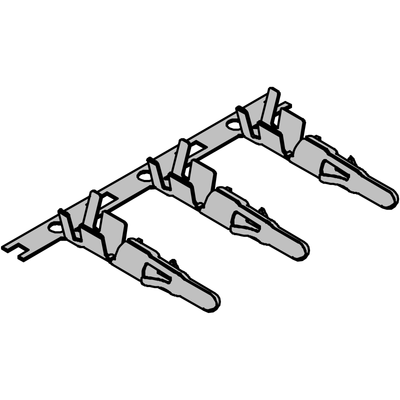

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
L6.2-620-RT 🖼️
1+£0.0900
50+£0.0810
100+£0.0720
200+£0.0630
500+£0.0495
1000+£0.0450
2,700+ in stock
(0 in cart)

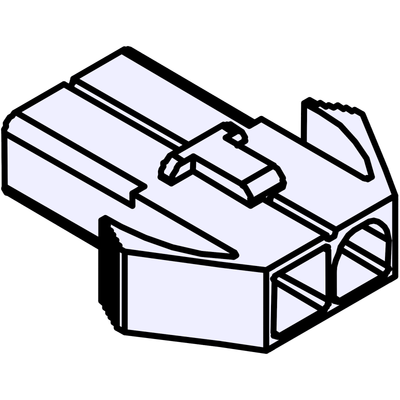

Wire Socket Housing

  • Row Count: 1
  • Pin Count: 2
  • Colour: Translucent
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Price (excl VAT) Buy
L6.2-620-2R 🖼️
1+£0.1800
5+£0.1629
10+£0.1422
20+£0.1242
50+£0.1098
100+£0.0900
500+ in stock
(0 in cart)
