PCP Wire-to-Wire Connectors

PCP Wire-to-Wire Connectors

1 1

Series Specification

Series Name PCP-508
Pin Pitch 5.08mm
Maximum Voltage 250V
Maximum Current 8.0A
Temperature Range -25°C ~ 85°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 24AWG ~ 18AWG
Wire Insulation Size (OD) 1.4mm ~ 3.0mm
Compatible PC Board Thickness 1.6mm
Compatibility
  • AMP Mate-n-Lok
  • Molex 8981
  • JST LC

On This Page

View full details

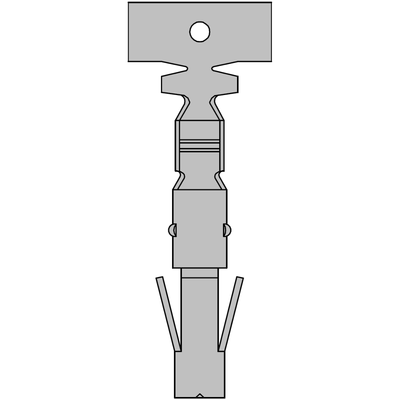

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
PCP-508-YT 🖼️
1+£0.0700
50+£0.0630
100+£0.0560
200+£0.0490
500+£0.0385
1000+£0.0350
4,800+ in stock
(0 in cart)

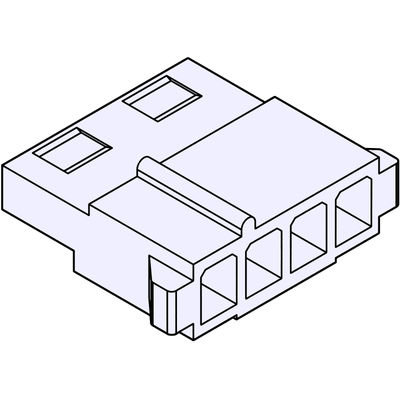

Plug Housing

  • Row Count: 1
  • Pin Count: 4
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Colour Price (excl VAT) Buy
Translucent
PCP-508-4Y 🖼️
1+£0.3400
5+£0.3077
10+£0.2686
20+£0.2346
50+£0.2074
100+£0.1700
850+ in stock
(0 in cart)
Black
PCP-508-4Y 🖼️
1+£0.3400
5+£0.3077
10+£0.2686
20+£0.2346
50+£0.2074
100+£0.1700
800+ in stock
(0 in cart)
Red
PCP-508-4Y 🖼️
1+£0.3400
5+£0.3077
10+£0.2686
20+£0.2346
50+£0.2074
100+£0.1700
280+ in stock
(0 in cart)

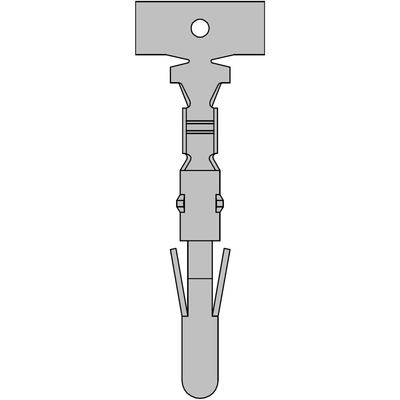

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
PCP-508-RT 🖼️
1+£0.0700
50+£0.0630
100+£0.0560
200+£0.0490
500+£0.0385
1000+£0.0350
6,500+ in stock
(0 in cart)

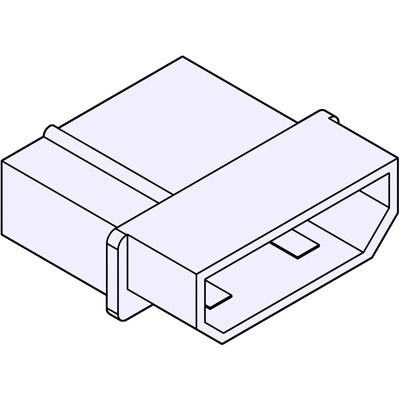

Wire Socket Housing

  • Row Count: 1
  • Pin Count: 4
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Colour Price (excl VAT) Buy
Translucent
PCP-508-4R 🖼️
1+£0.3600
5+£0.3258
10+£0.2844
20+£0.2484
50+£0.2196
100+£0.1800
550+ in stock
(0 in cart)
Black
PCP-508-4R 🖼️
1+£0.3600
5+£0.3258
10+£0.2844
20+£0.2484
50+£0.2196
100+£0.1800
750+ in stock
(0 in cart)
Red
PCP-508-4R 🖼️
1+£0.3600
5+£0.3258
10+£0.2844
20+£0.2484
50+£0.2196
100+£0.1800
310+ in stock
(0 in cart)
