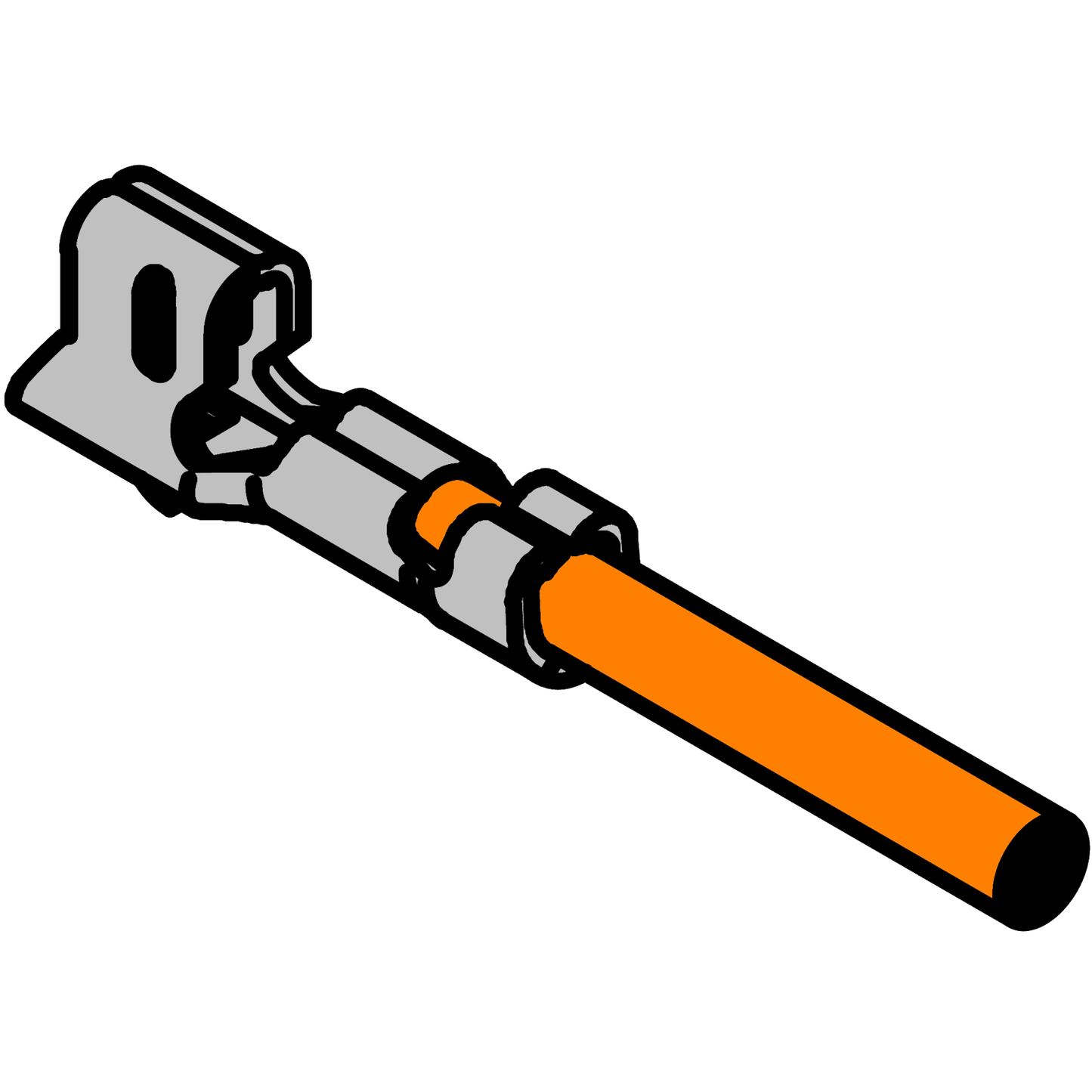

PH Crimped Wire 200mm (Plug Crimp, Stripped & Tinned)

PH Crimped Wire 200mm (Plug Crimp, Stripped & Tinned)

1 1
Wire Colour
Quantity Unit Price
1+ £0.17
5+ £0.153
10+ £0.136
20+ £0.119
50+ £0.102
100+ £0.0935

Part Specification

Part NumberPH-200-W200-YT-S3
Variant Colour:
Red
Wire TerminationPlug Crimp / Stripped & Tinned
Wire Size26AWG
Wire Stranding7/0.12mm
Wire Outer Diameter1.3mm
Wire Length200mm
Part TypeCrimped Wire (Plug)
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series NamePH-200
Pin Pitch2.0mm
Maximum Voltage100V
Maximum Current2.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage800V AC/min
Compatible Wire Size32AWG ~ 24AWG
Wire Insulation Size (OD)0.9mm ~ 1.5mm
Compatible PC Board Thickness1.6mm
Compatibility
  • JST PH
