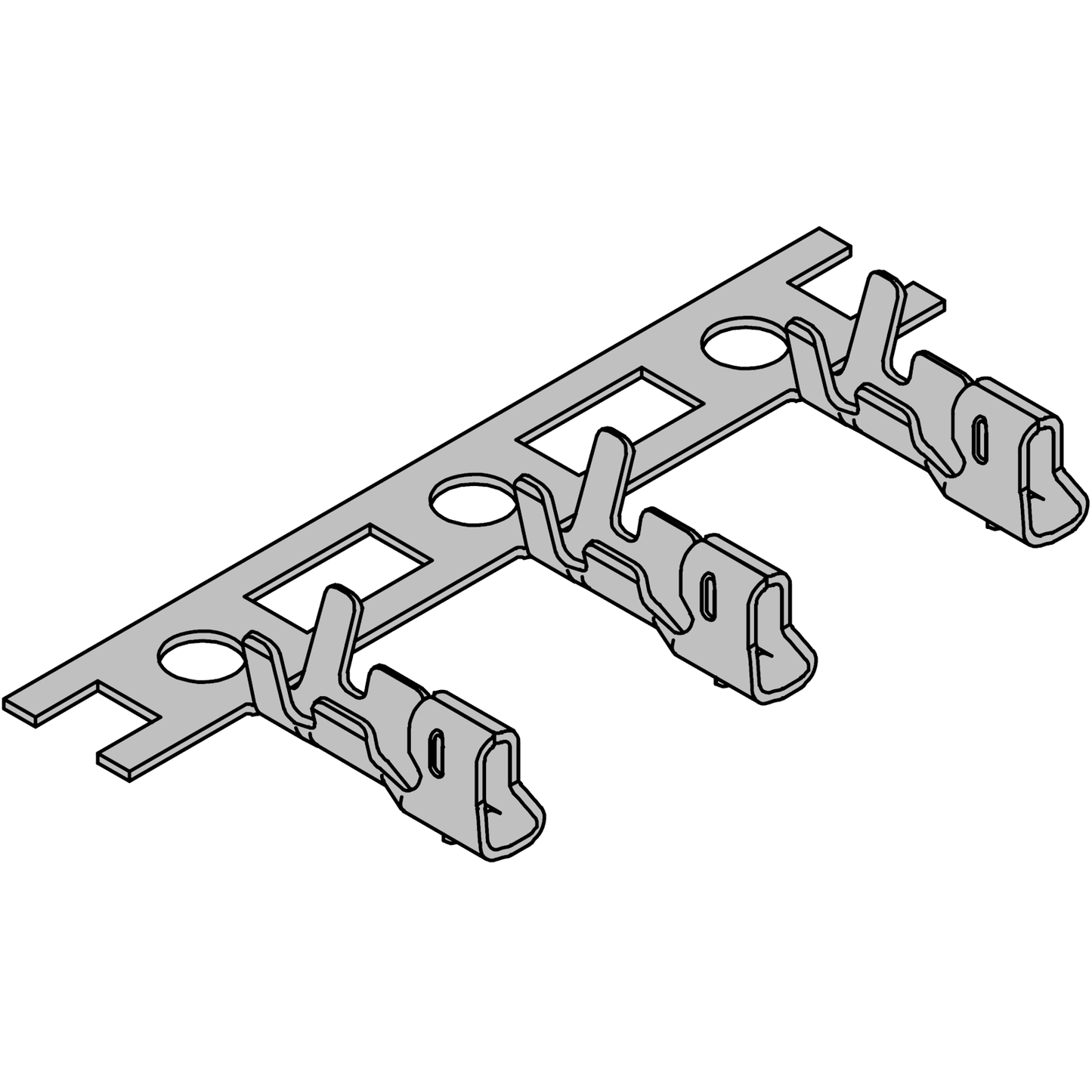

PH Plug Crimp Terminal

PH Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.03
50+ £0.027
100+ £0.024
200+ £0.021
500+ £0.0165
1000+ £0.015

Part Specification

Part NumberPH-200-YT
Part TypePlug Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NamePH-200
Pin Pitch2.0mm
Maximum Voltage100V
Maximum Current2.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage800V AC/min
Compatible Wire Size32AWG ~ 24AWG
Wire Insulation Size (OD)0.9mm ~ 1.5mm
Compatible PC Board Thickness1.6mm
Compatibility
  • JST PH
View full details

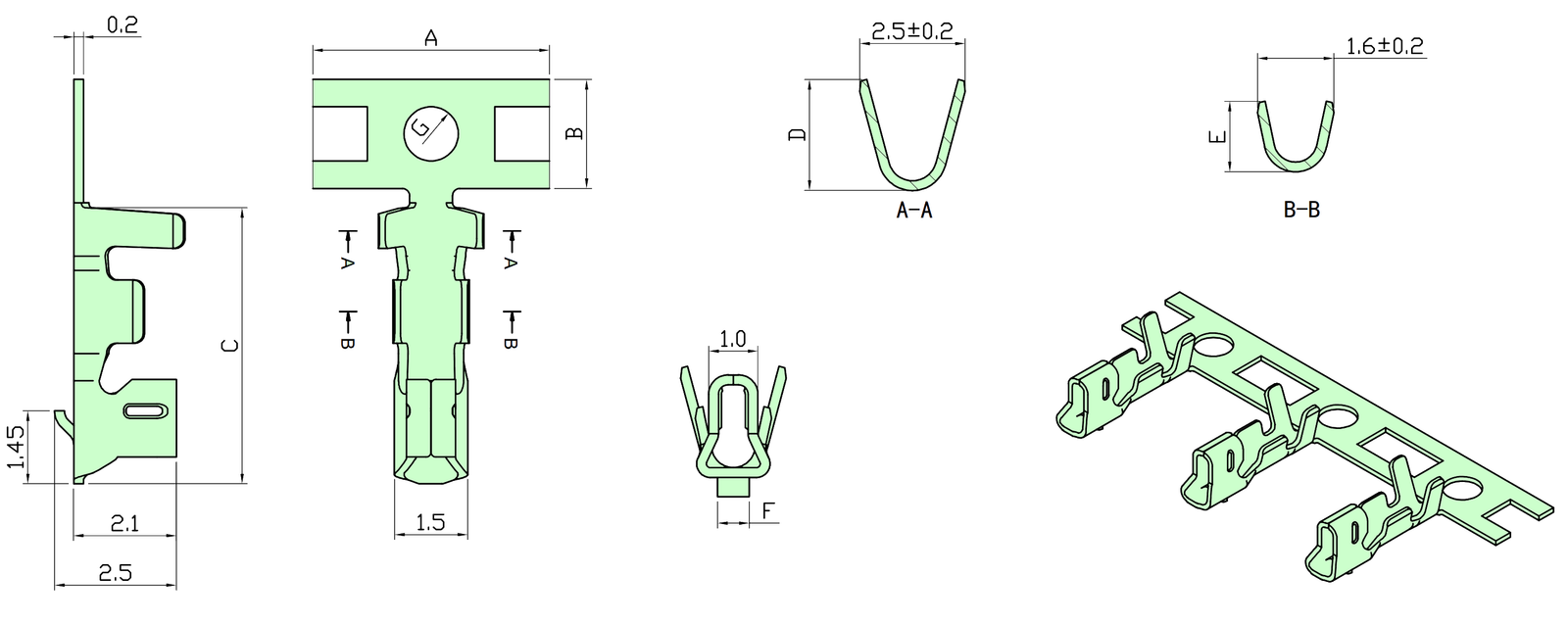

Diagram
