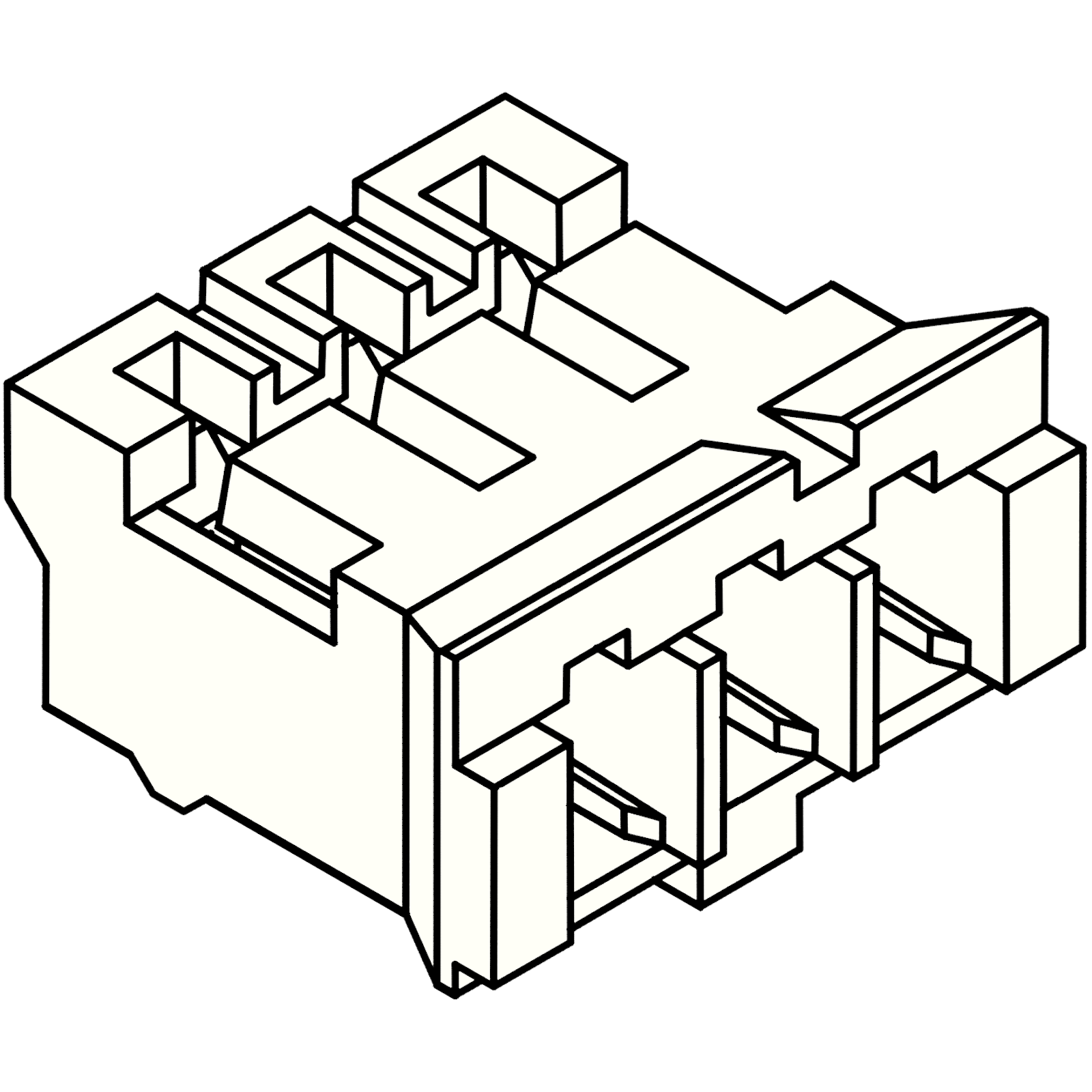

PH Plug Housing 3-pin

Series: PH-200
Pin Count: 2-20
Pin Pitch: 2.0mm
Maximum Voltage: 100V
Maximum Current: 2.0A
Compatibility: JST PH

Name: PH Plug Housing 3-pin
Brand: Komodo Electronics
SKU: PH-200-3Y
Price: 0.04 GBP
Availability: InStock

1 1

Product variants

Price

Quantity

Availability: 1418 in stock

Part Information

Series Name	PH-200
Pin Pitch	2.0mm
Maximum Voltage	100V
Maximum Current	2.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	800V AC/min
Compatible Wire Size	32AWG ~ 24AWG
Wire Insulation Size (OD)	0.9mm ~ 1.5mm
Compatible PC Board Thickness	1.6mm
Compatibility	JST PH
