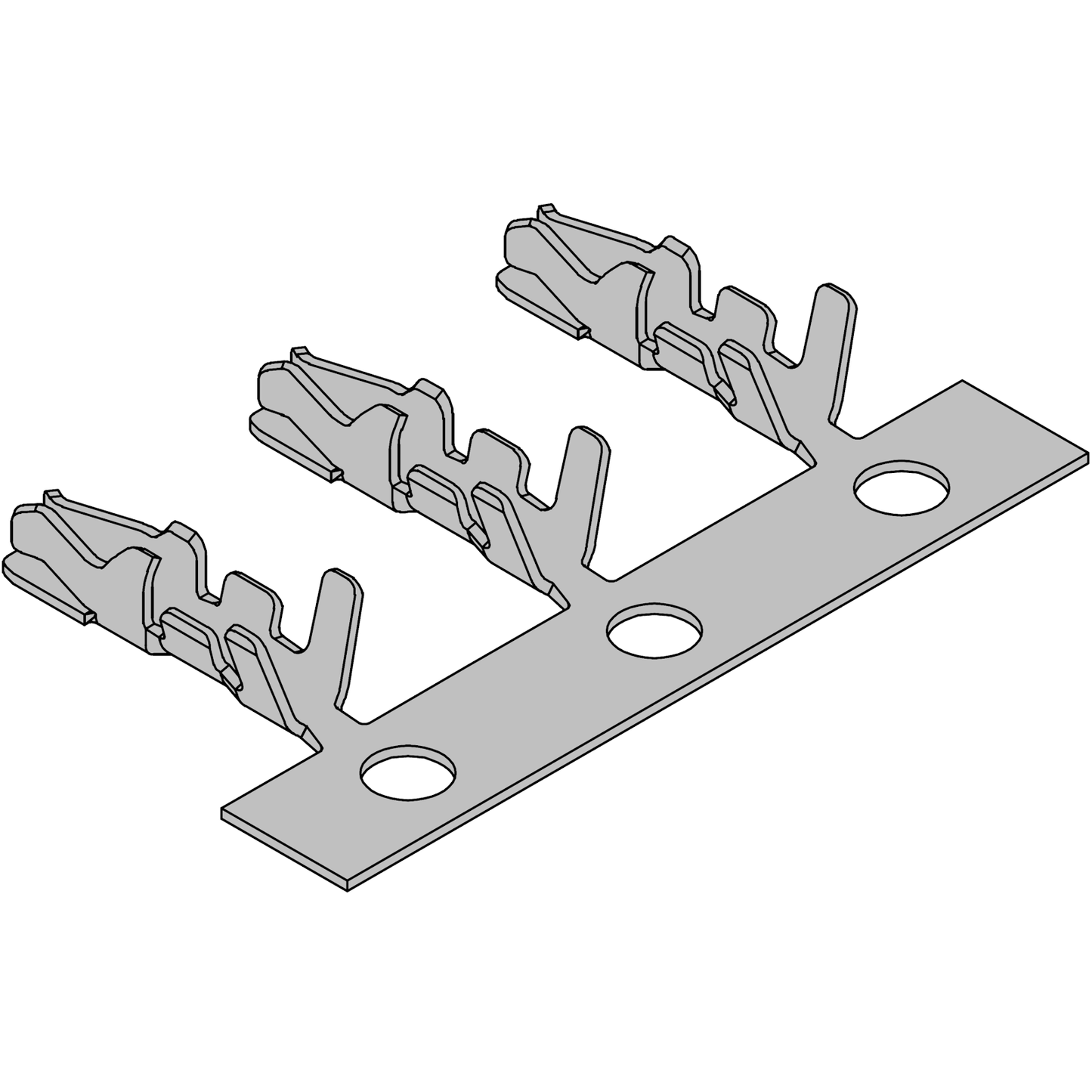

PHB Plug Crimp Terminal

PHB Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.03
50+ £0.027
100+ £0.024
200+ £0.021
500+ £0.0165
1000+ £0.015

Part Specification

Part NumberPHB-200-YT
Part TypePlug Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NamePHB-200
Pin Pitch2.0mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size30AWG ~ 22AWG
Wire Insulation Size (OD)0.9mm ~ 1.5mm
Compatibility
  • Yeonho SMH200-NN
  • Yeonho SMW200-NN
View full details

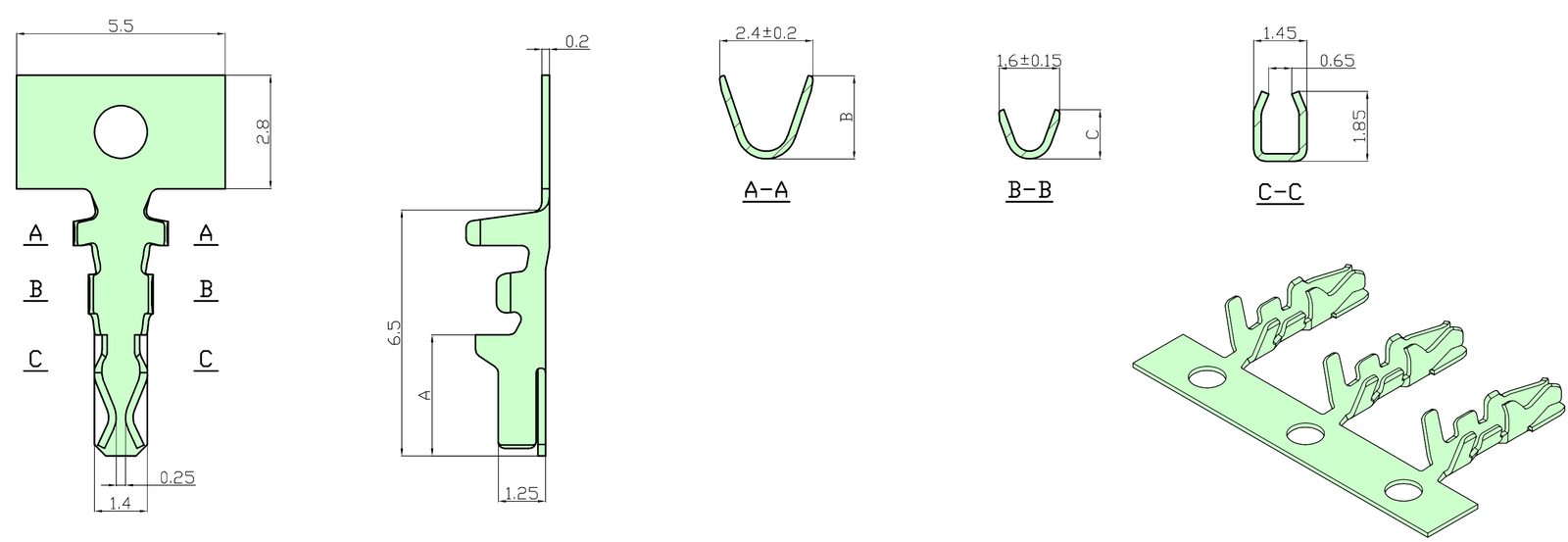

Diagram
