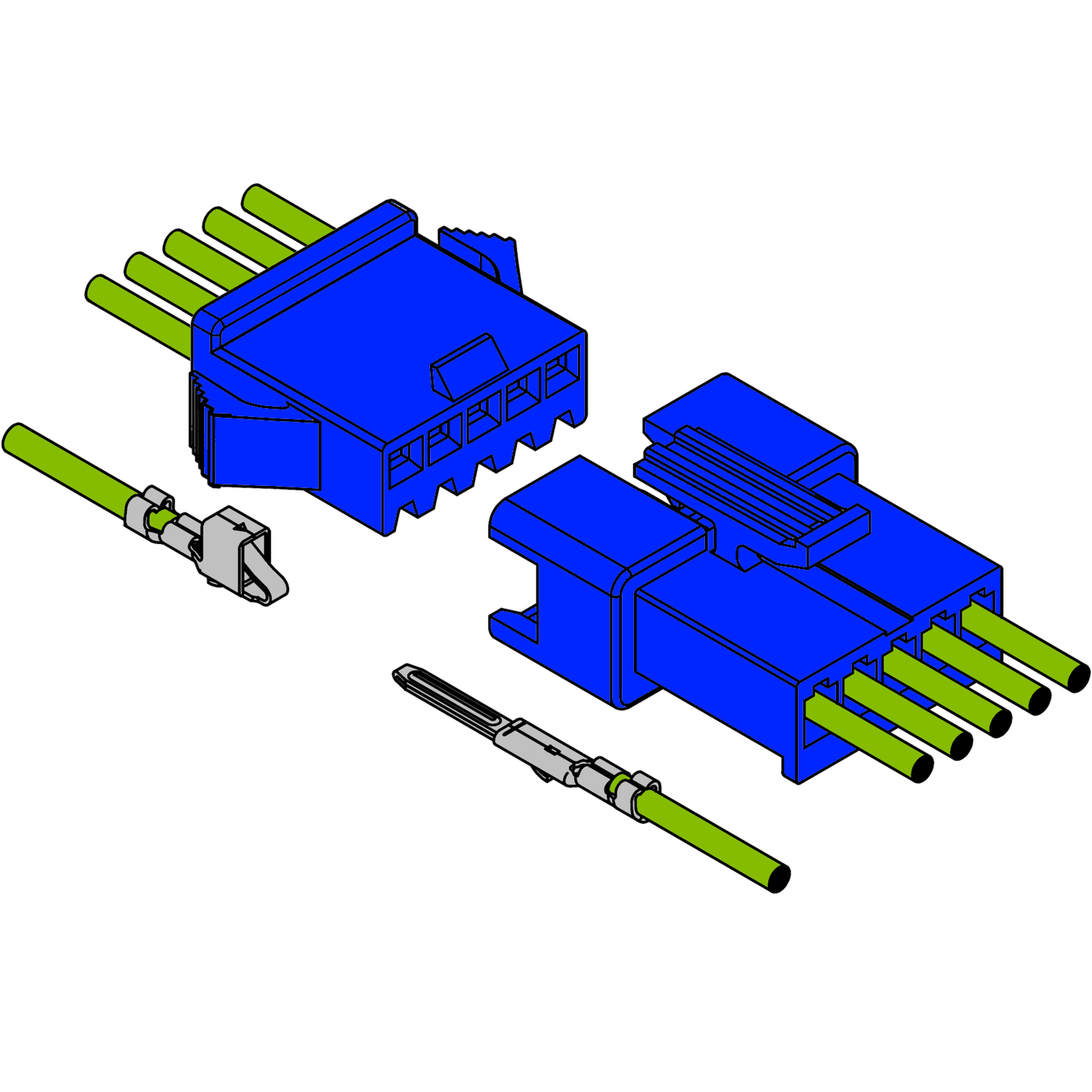

SM Blue Wire-to-Wire Connectors

SM Blue Wire-to-Wire Connectors

1 1

Series Specification

Series Name SM-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 500MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.8mm
Compatibility JST SM

On This Page

View full details

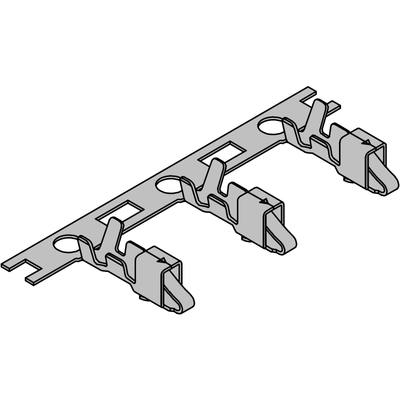

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
SM-250-YT
1+£0.0600
50+£0.0540
100+£0.0480
200+£0.0420
500+£0.0330
1000+£0.0300
6,000+ in stock
(0 in cart)

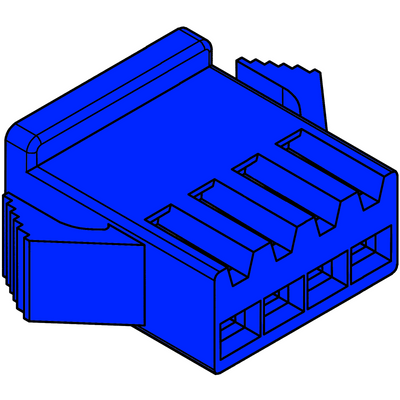

Plug Housing (Blue)

  • Row Count: 1
  • Colour: Blue
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SM-250-2Y
1+£0.0400
10+£0.0362
20+£0.0316
50+£0.0276
100+£0.0244
500+£0.0200
1,400+ in stock
(0 in cart)
3-pin
SM-250-3Y
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
750+ in stock
(0 in cart)
4-pin
SM-250-4Y
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
700+ in stock
(0 in cart)
5-pin
SM-250-5Y
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
750+ in stock
(0 in cart)
6-pin
SM-250-6Y
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
800 in stock
(0 in cart)

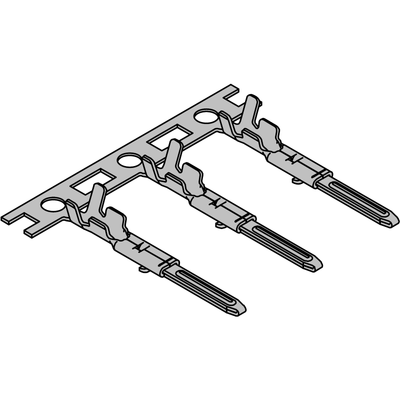

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
SM-250-RT
1+£0.0500
50+£0.0450
100+£0.0400
200+£0.0350
500+£0.0275
1000+£0.0250
8,500+ in stock
(0 in cart)

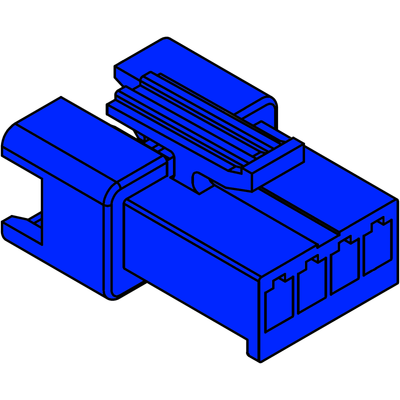

Wire Socket Housing (Blue)

  • Row Count: 1
  • Colour: Blue
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SM-250-2R
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
1,400+ in stock
(0 in cart)
3-pin
SM-250-3R
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
750+ in stock
(0 in cart)
4-pin
SM-250-4R
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
700+ in stock
(0 in cart)
5-pin
SM-250-5R
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
6-pin
SM-250-6R
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
800 in stock
(0 in cart)

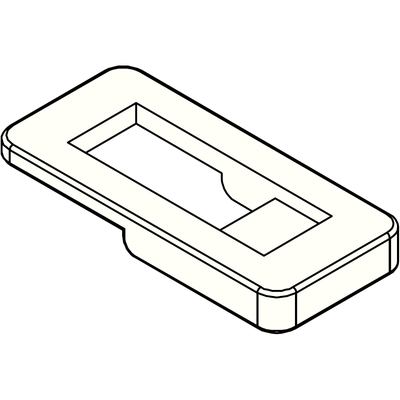

Wire Socket Latch Clip

  • Colour: White
  • Materials: Nylon PA66 (UL94V-0/V-2)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SM-250-2SMB
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
1,600 in stock
(0 in cart)
3-pin
SM-250-3SMB
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
1,500+ in stock
(0 in cart)

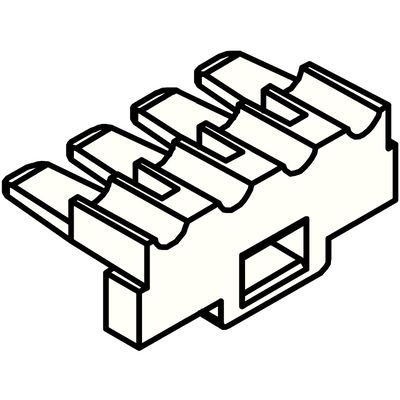

Wire Socket Housing Retainer

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SM-250-2RST
1+£0.0200
10+£0.0181
20+£0.0158
50+£0.0138
100+£0.0122
500+£0.0100
1,500+ in stock
(0 in cart)
3-pin
SM-250-3RST
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
750+ in stock
(0 in cart)
4-pin
SM-250-4RST
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
800 in stock
(0 in cart)
5-pin
SM-250-5RST
1+£0.0400
10+£0.0362
20+£0.0316
50+£0.0276
100+£0.0244
500+£0.0200
800 in stock
(0 in cart)
6-pin
SM-250-6RST
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
800 in stock
(0 in cart)

Crimped Wire (Plug)

  • Termination: Plug Crimp / Stripped & Tinned
  • Wire Size: 22AWG
  • Wire Stranding: 17/0.12mm
  • Wire Outer Diameter: 1.6mm
  • Wire Length: 200mm
  • Materials: Phosphor bronze, Tin, Copper, PVC
Colour Price (excl VAT) Buy
Purple
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
Orange
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
Red
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
750+ in stock
(0 in cart)
Black
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
950+ in stock
(0 in cart)
Yellow
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
Blue
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
White
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
Green
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
180+ in stock
(0 in cart)
Brown
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)
Grey
SM-250-W200-YT-S3
1+£0.2300
5+£0.2070
10+£0.1840
20+£0.1610
50+£0.1380
100+£0.1265
190+ in stock
(0 in cart)

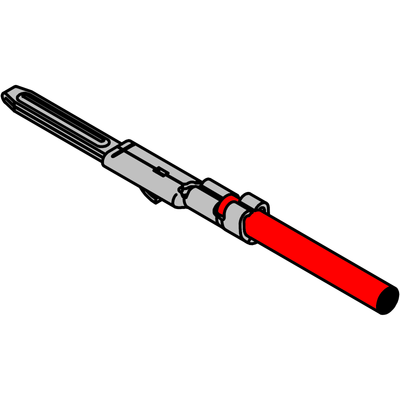

Crimped Wire (Wire Socket)

  • Termination: Wire Socket Crimp / Stripped & Tinned
  • Wire Size: 22AWG
  • Wire Stranding: 17/0.12mm
  • Wire Outer Diameter: 1.6mm
  • Wire Length: 200mm
  • Materials: Phosphor bronze, Tin, Copper, PVC
Colour Price (excl VAT) Buy
Red
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
700+ in stock
(0 in cart)
Black
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
700+ in stock
(0 in cart)
Yellow
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
Blue
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
White
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
Green
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
180+ in stock
(0 in cart)
Brown
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
Grey
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
Purple
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
Orange
SM-250-W200-RT-S3
1+£0.2200
5+£0.1980
10+£0.1760
20+£0.1540
50+£0.1320
100+£0.1210
190+ in stock
(0 in cart)
