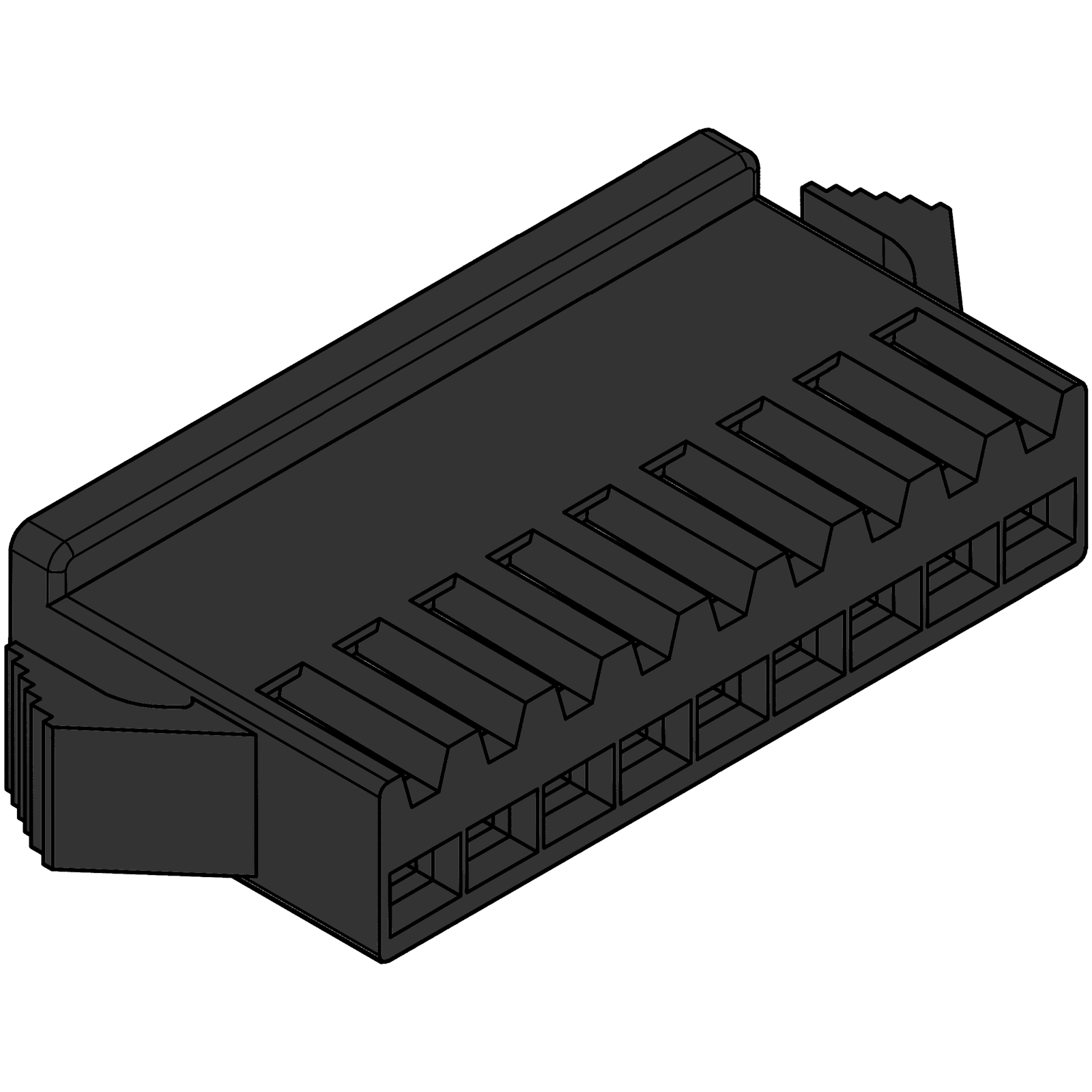

SM Plug Housing 9-pin

SM Plug Housing 9-pin

1 1
Quantity Unit Price
1+ £0.12
5+ £0.1086
10+ £0.0948
20+ £0.0828
50+ £0.0732
100+ £0.06

Part Information

Part Number SM-250-9Y
Row Count 1
Pin Count 9
Colour Black
Materials
  • Nylon PA66 (UL94V-0/V-2)

Series Specification

Series Name SM-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 500MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.8mm
Compatibility
  • JST SM
View full details

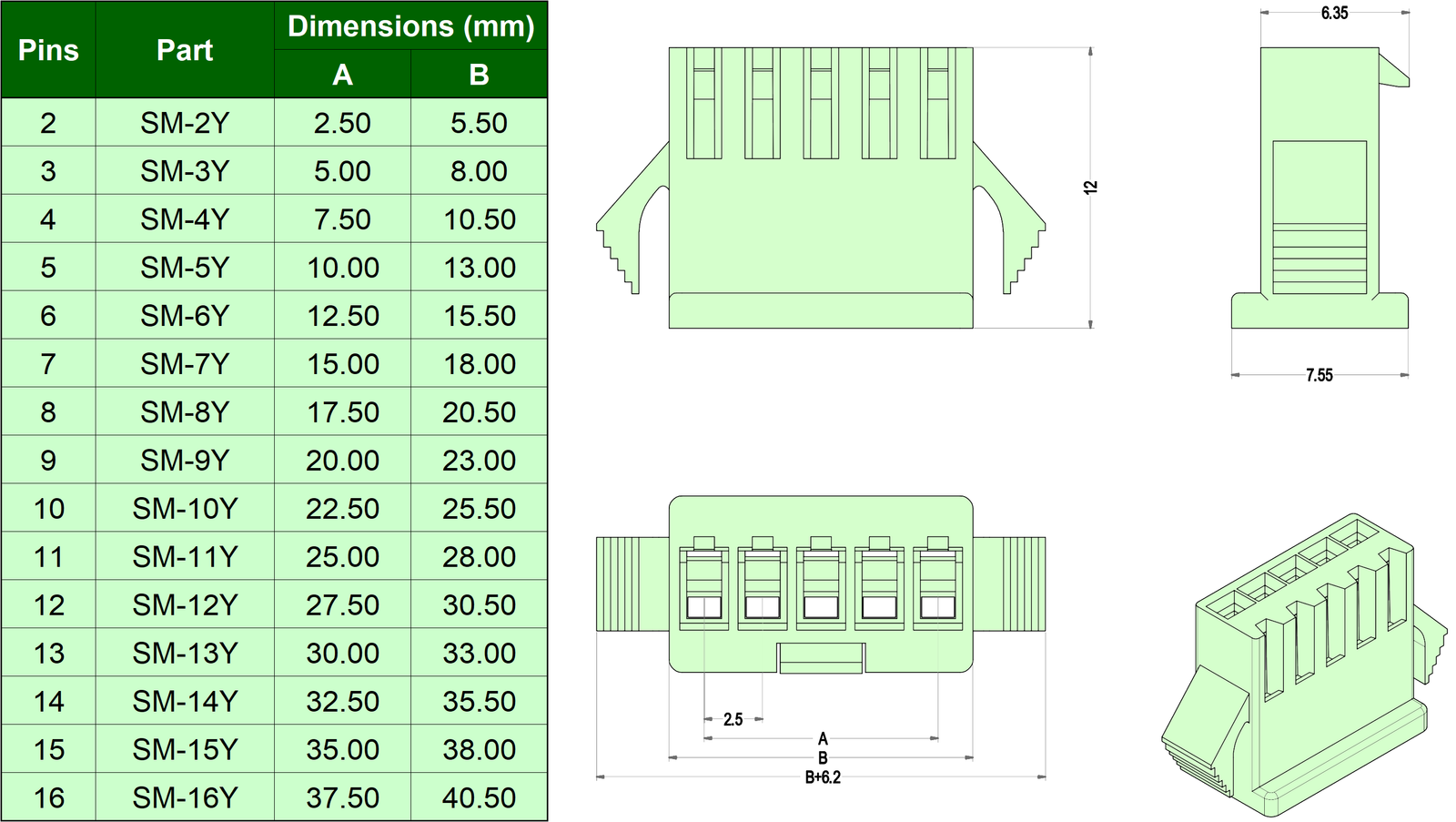

Diagram

Related Series
