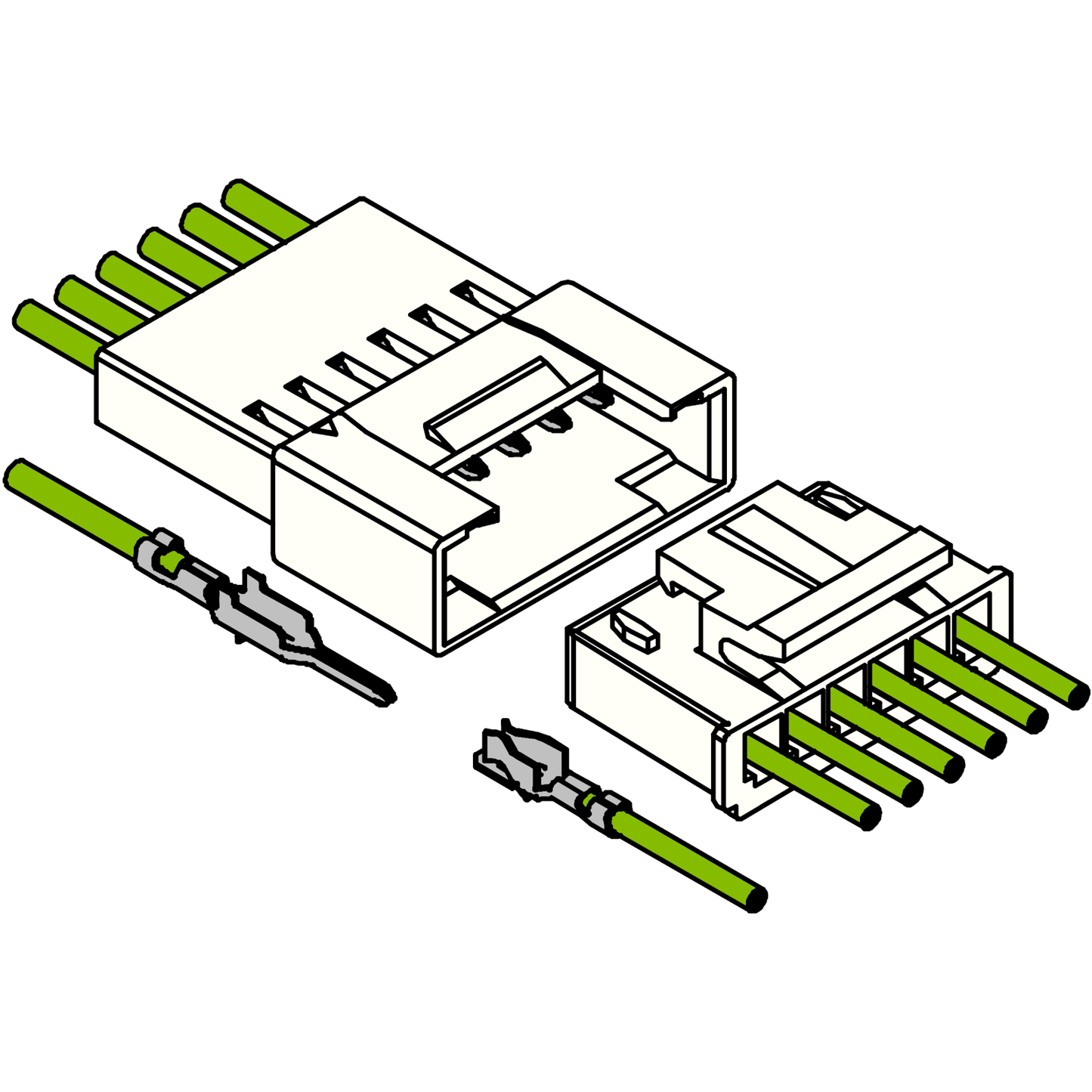

SMH250 / SMP250 Wire-to-Wire Connectors

SMH250 / SMP250 Wire-to-Wire Connectors

1 1

Series Specification

Series Name SMH250-SMP250-SMW250-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.9mm
Compatibility
  • Yeonho SMH250-NN
  • Yeonho SMP250-NN
  • Yeonho SMW250-NN

On This Page

View full details

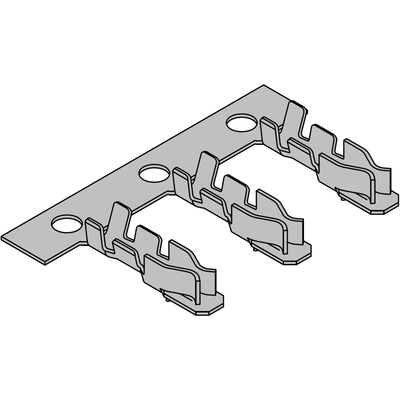

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
SMH250-250-YT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
5,500+ in stock
(0 in cart)

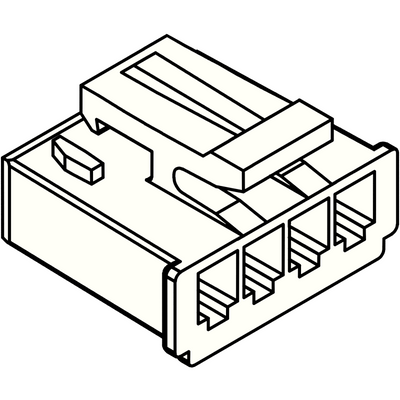

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SMH250-250-2Y 🖼️
1+£0.0300
10+£0.0272
20+£0.0237
50+£0.0207
100+£0.0183
500+£0.0150
1,100+ in stock
(0 in cart)
3-pin
SMH250-250-3Y 🖼️
1+£0.0500
10+£0.0453
20+£0.0395
50+£0.0345
100+£0.0305
500+£0.0250
1,300+ in stock
(0 in cart)
4-pin
SMH250-250-4Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
600+ in stock
(0 in cart)
5-pin
SMH250-250-5Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
600+ in stock
(0 in cart)
6-pin
SMH250-250-6Y 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
750+ in stock
(0 in cart)
7-pin
SMH250-250-7Y 🖼️
1+£0.1000
10+£0.0905
20+£0.0790
50+£0.0690
100+£0.0610
500+£0.0500
750+ in stock
(0 in cart)
8-pin
SMH250-250-8Y 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
700+ in stock
(0 in cart)
9-pin
SMH250-250-9Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
800 in stock
(0 in cart)
10-pin
SMH250-250-10Y 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
750+ in stock
(0 in cart)
11-pin
SMH250-250-11Y 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
800 in stock
(0 in cart)
12-pin
SMH250-250-12Y 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
750+ in stock
(0 in cart)

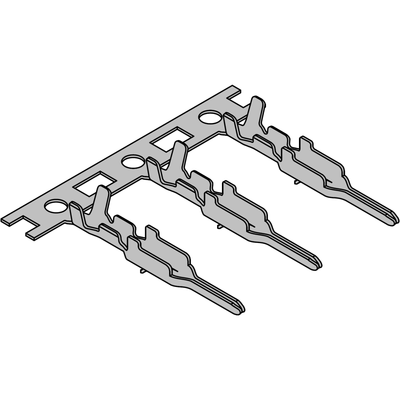

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
SMP250-250-RT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
5,000+ in stock
(0 in cart)

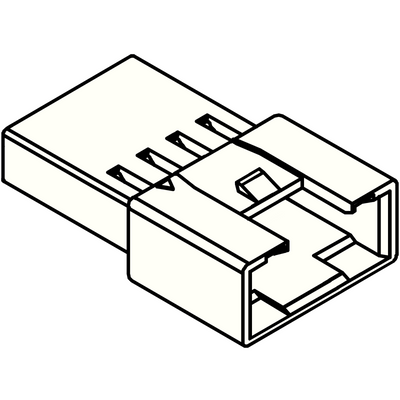

Wire Socket Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
SMP250-250-2R 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
1,200+ in stock
(0 in cart)
3-pin
SMP250-250-3R 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
700+ in stock
(0 in cart)
4-pin
SMP250-250-4R 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
650+ in stock
(0 in cart)
5-pin
SMP250-250-5R 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
750+ in stock
(0 in cart)
6-pin
SMP250-250-6R 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
750+ in stock
(0 in cart)
7-pin
SMP250-250-7R 🖼️
1+£0.1800
5+£0.1629
10+£0.1422
20+£0.1242
50+£0.1098
100+£0.0900
750+ in stock
(0 in cart)
8-pin
SMP250-250-8R 🖼️
1+£0.2000
5+£0.1810
10+£0.1580
20+£0.1380
50+£0.1220
100+£0.1000
750+ in stock
(0 in cart)
9-pin
SMP250-250-9R 🖼️
1+£0.2200
5+£0.1991
10+£0.1738
20+£0.1518
50+£0.1342
100+£0.1100
800 in stock
(0 in cart)
10-pin
SMP250-250-10R 🖼️
1+£0.2400
5+£0.2172
10+£0.1896
20+£0.1656
50+£0.1464
100+£0.1200
750+ in stock
(0 in cart)
11-pin
SMP250-250-11R 🖼️
1+£0.2600
5+£0.2353
10+£0.2054
20+£0.1794
50+£0.1586
100+£0.1300
800 in stock
(0 in cart)
12-pin
SMP250-250-12R 🖼️
1+£0.2800
5+£0.2534
10+£0.2212
20+£0.1932
50+£0.1708
100+£0.1400
750+ in stock
(0 in cart)
