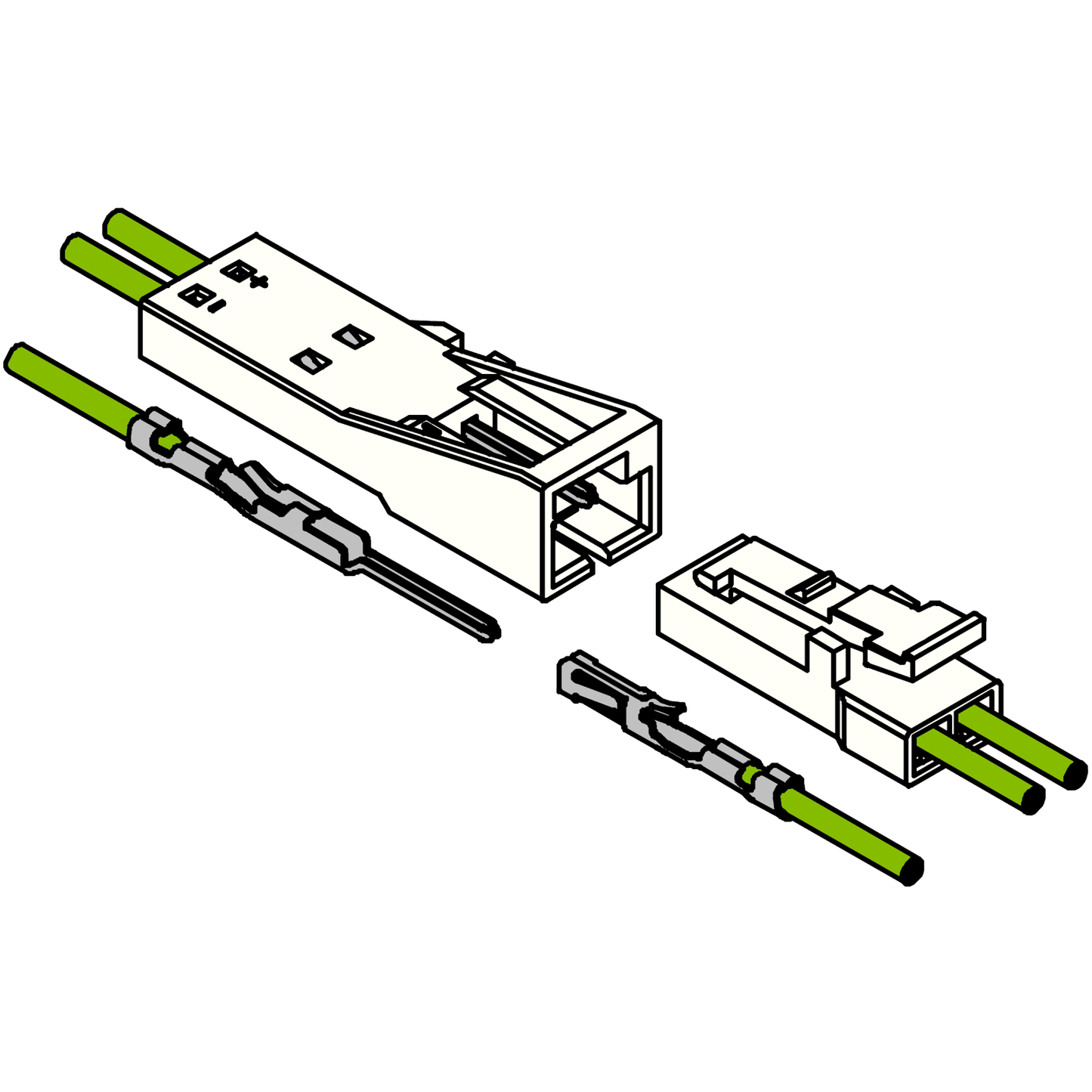

TJC8B / TJC8H Wire-to-Wire Connectors

TJC8B / TJC8H Wire-to-Wire Connectors

1 1

Series Specification

Series Name TJC8B-TJC8H-254
Pin Pitch 2.54mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Compatibility
  • Ampmodu MTE
  • TE 10427
  • TE 103653

On This Page

View full details

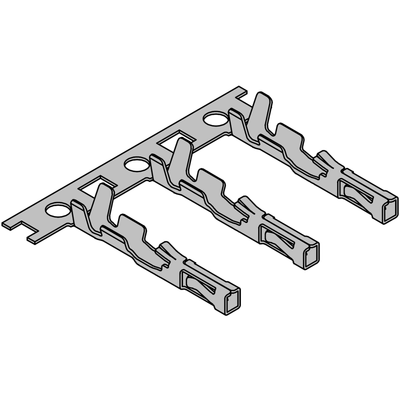

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
TJC8B-254-YT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
12,000+ in stock
(0 in cart)

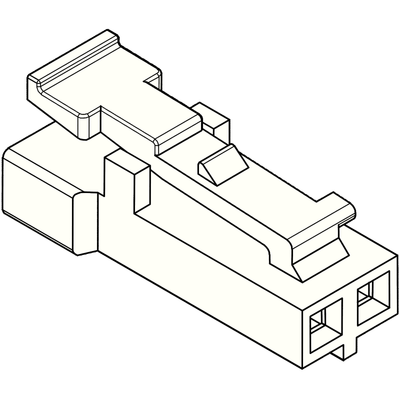

Plug Housing

  • Row Count: 1
  • Pin Count: 2
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Price (excl VAT) Buy
TJC8B-254-2Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
1,300+ in stock
(0 in cart)

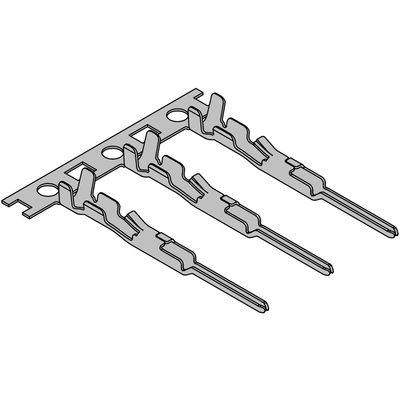

Wire Socket Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
TJC8H-254-RT 🖼️
1+£0.0500
50+£0.0450
100+£0.0400
200+£0.0350
500+£0.0275
1000+£0.0250
6,000+ in stock
(0 in cart)

Wire Socket Housing

  • Row Count: 1
  • Pin Count: 2
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Price (excl VAT) Buy
TJC8H-254-2A 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
1,400+ in stock
(0 in cart)
