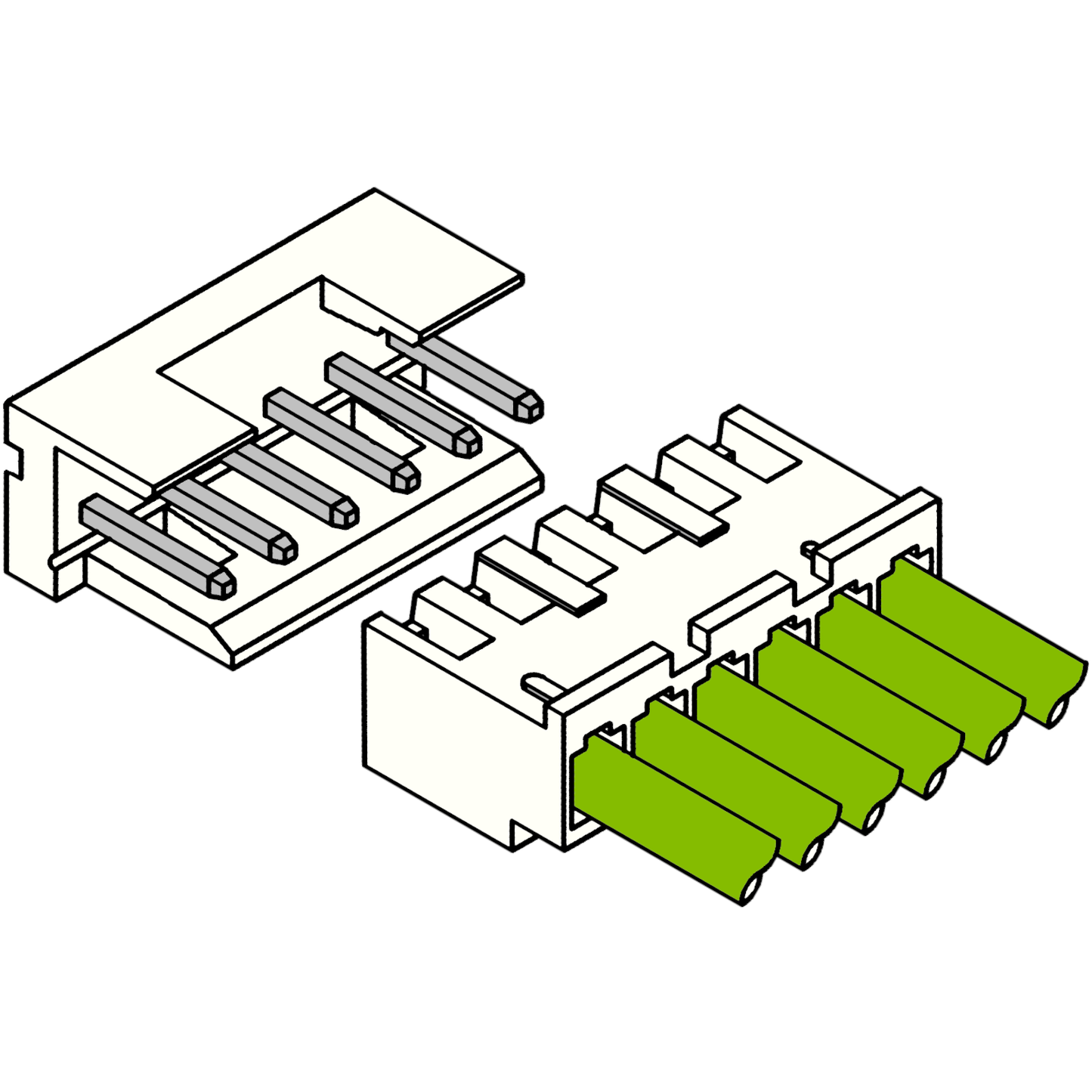

TJC9 Wire-to-Board Connectors

TJC9 Wire-to-Board Connectors

1 1

Series Specification

Series Name TJC9-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 85°C
Contact Resistance 20mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 28AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.9mm

On This Page

View full details

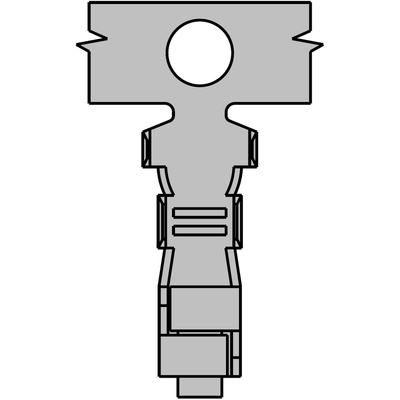

Plug Crimp Terminal

  • Materials: Phosphor bronze, Tin
Diagram
Price (excl VAT) Buy
TJC9-250-YT 🖼️
1+£0.0400
50+£0.0360
100+£0.0320
200+£0.0280
500+£0.0220
1000+£0.0200
5,500+ in stock
(0 in cart)

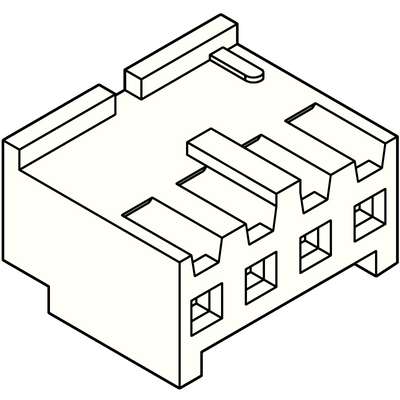

Plug Housing

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0)
Diagram
Pin Count Price (excl VAT) Buy
2-pin
TJC9-250-2Y 🖼️
1+£0.0400
10+£0.0362
20+£0.0316
50+£0.0276
100+£0.0244
500+£0.0200
5,000+ in stock
(0 in cart)
3-pin
TJC9-250-3Y 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
750+ in stock
(0 in cart)
4-pin
TJC9-250-4Y 🖼️
1+£0.0700
10+£0.0634
20+£0.0553
50+£0.0483
100+£0.0427
500+£0.0350
750+ in stock
(0 in cart)
5-pin
TJC9-250-5Y 🖼️
1+£0.0900
10+£0.0815
20+£0.0711
50+£0.0621
100+£0.0549
500+£0.0450
750+ in stock
(0 in cart)
6-pin
TJC9-250-6Y 🖼️
1+£0.1000
10+£0.0905
20+£0.0790
50+£0.0690
100+£0.0610
500+£0.0500
800 in stock
(0 in cart)
7-pin
TJC9-250-7Y 🖼️
1+£0.1200
5+£0.1086
10+£0.0948
20+£0.0828
50+£0.0732
100+£0.0600
800 in stock
(0 in cart)
8-pin
TJC9-250-8Y 🖼️
1+£0.1300
5+£0.1177
10+£0.1027
20+£0.0897
50+£0.0793
100+£0.0650
800 in stock
(0 in cart)
10-pin
TJC9-250-10Y 🖼️
1+£0.1700
5+£0.1539
10+£0.1343
20+£0.1173
50+£0.1037
100+£0.0850
800 in stock
(0 in cart)
12-pin
TJC9-250-12Y 🖼️
1+£0.2000
5+£0.1810
10+£0.1580
20+£0.1380
50+£0.1220
100+£0.1000
800 in stock
(0 in cart)

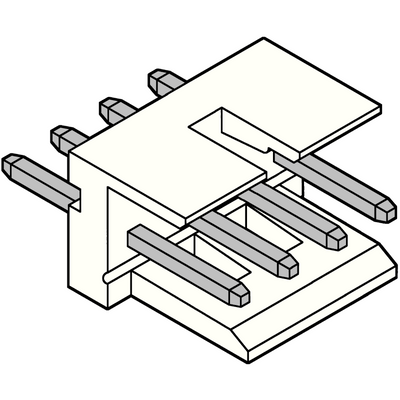

Straight PCB Socket

  • Row Count: 1
  • Colour: White
  • Materials: Nylon PA66 (UL94V-0), Brass, Tin
Diagram
Pin Count Price (excl VAT) Buy
2-pin
TJC9-250-2A 🖼️
1+£0.0600
10+£0.0543
20+£0.0474
50+£0.0414
100+£0.0366
500+£0.0300
1,600 in stock
(0 in cart)
3-pin
TJC9-250-3A 🖼️
1+£0.0800
10+£0.0724
20+£0.0632
50+£0.0552
100+£0.0488
500+£0.0400
750+ in stock
(0 in cart)
4-pin
TJC9-250-4A 🖼️
1+£0.1100
10+£0.0996
20+£0.0869
50+£0.0759
100+£0.0671
500+£0.0550
750+ in stock
(0 in cart)
5-pin
TJC9-250-5A 🖼️
1+£0.1400
5+£0.1267
10+£0.1106
20+£0.0966
50+£0.0854
100+£0.0700
750+ in stock
(0 in cart)
6-pin
TJC9-250-6A 🖼️
1+£0.1600
5+£0.1448
10+£0.1264
20+£0.1104
50+£0.0976
100+£0.0800
800 in stock
(0 in cart)
7-pin
TJC9-250-7A 🖼️
1+£0.1800
5+£0.1629
10+£0.1422
20+£0.1242
50+£0.1098
100+£0.0900
800 in stock
(0 in cart)
8-pin
TJC9-250-8A 🖼️
1+£0.2100
5+£0.1901
10+£0.1659
20+£0.1449
50+£0.1281
100+£0.1050
800 in stock
(0 in cart)
9-pin
TJC9-250-9A 🖼️
1+£0.2300
5+£0.2082
10+£0.1817
20+£0.1587
50+£0.1403
100+£0.1150
800 in stock
(0 in cart)
10-pin
TJC9-250-10A 🖼️
1+£0.2500
5+£0.2263
10+£0.1975
20+£0.1725
50+£0.1525
100+£0.1250
800 in stock
(0 in cart)
12-pin
TJC9-250-12A 🖼️
1+£0.3000
5+£0.2715
10+£0.2370
20+£0.2070
50+£0.1830
100+£0.1500
800 in stock
(0 in cart)
