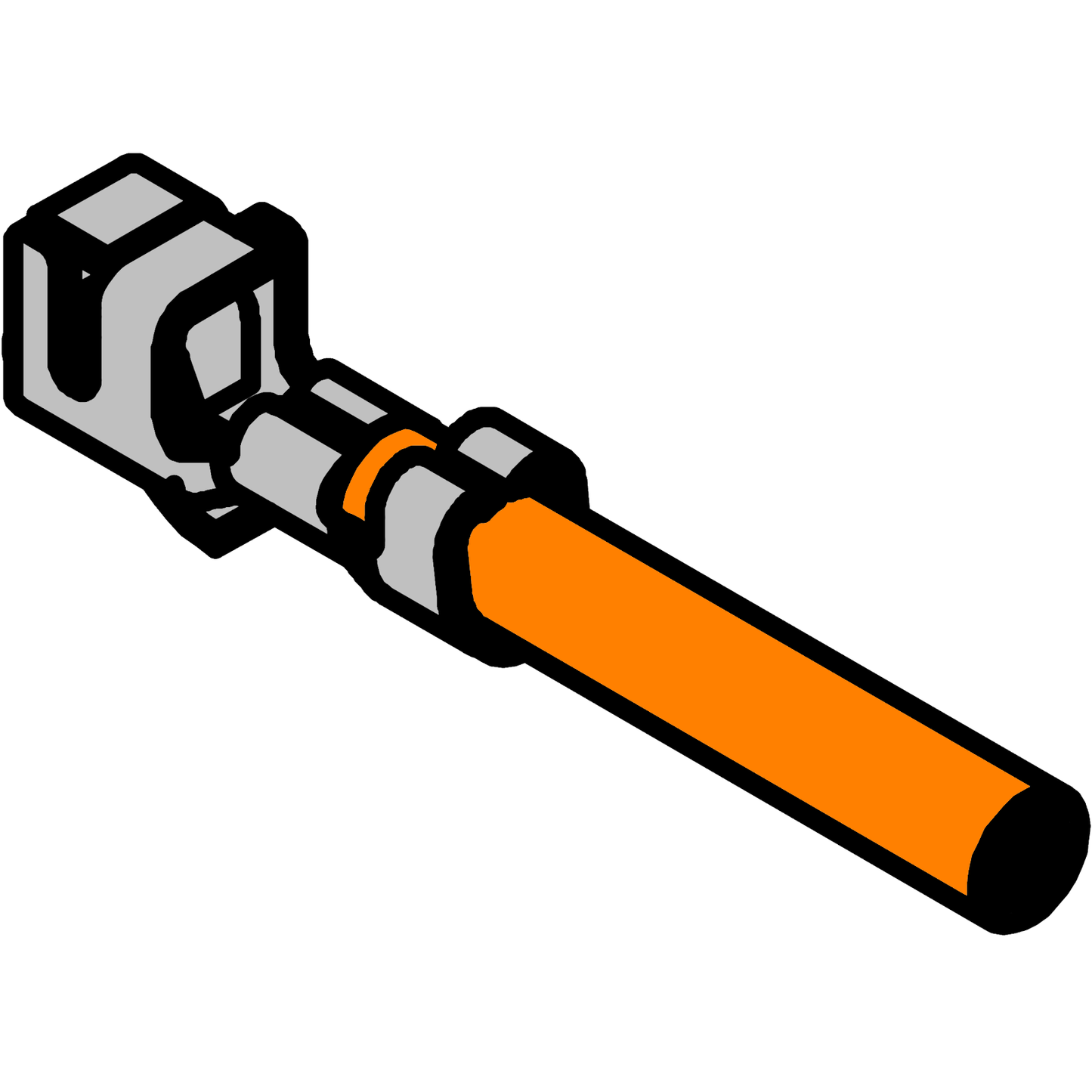

XH Crimped Wire 200mm (Plug Crimp, Plug Crimp)

XH Crimped Wire 200mm (Plug Crimp, Plug Crimp)

1 1
Wire Colour
Quantity Unit Price
1+ £0.19
5+ £0.171
10+ £0.152
20+ £0.133
50+ £0.114
100+ £0.1045

Part Specification

Part NumberXH-250-W200-YT-YT
Variant Colour:
Red
Wire TerminationPlug Crimp / Plug Crimp
Wire Size26AWG
Wire Stranding7/0.12mm
Wire Outer Diameter1.3mm
Wire Length200mm
Part TypeCrimped Wire (Plug)
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series NameXH-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size30AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.9mm
Compatibility
  • JST XH
