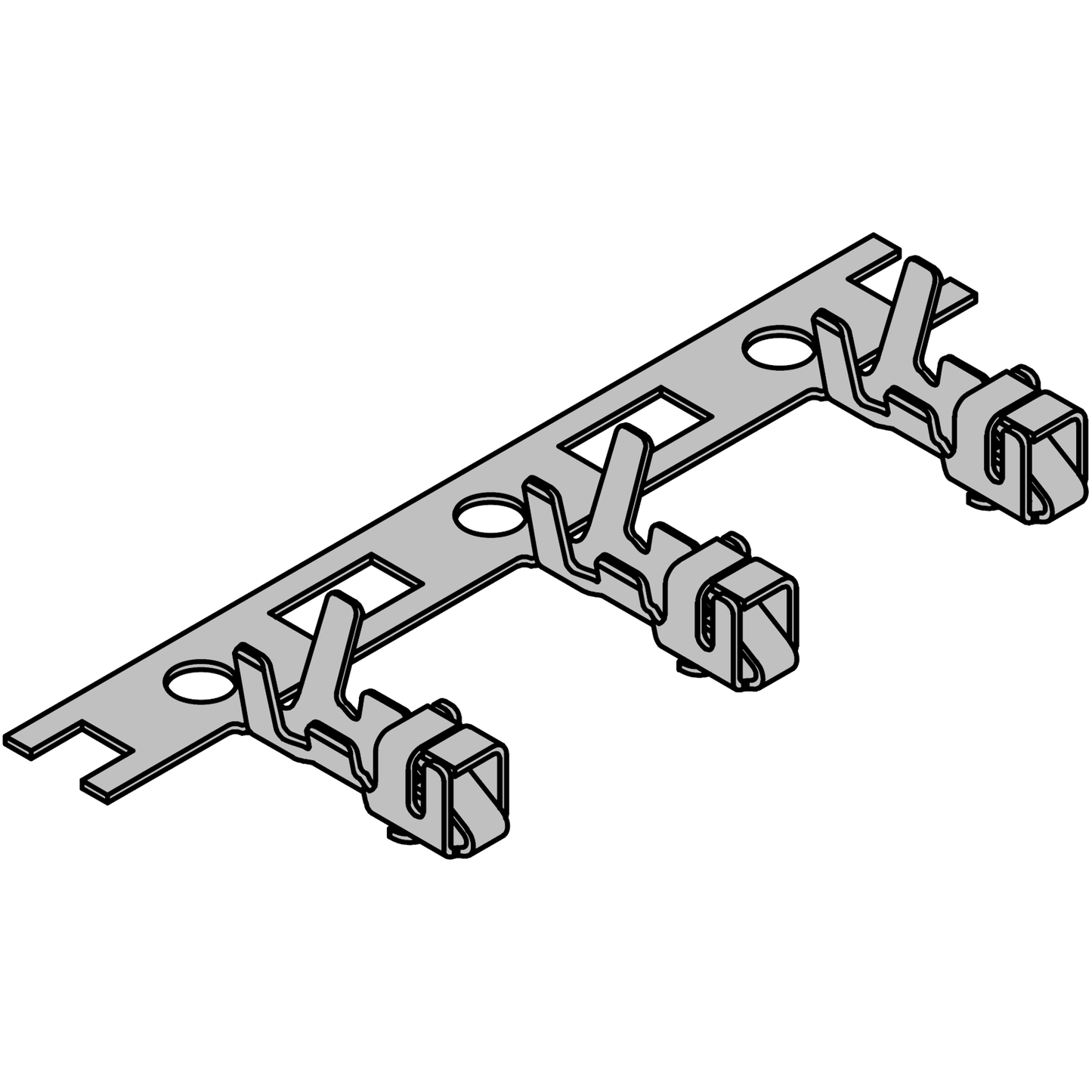

XH Plug Crimp Terminal

XH Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Information

Part Number XH-250-YT
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name XH-250
Pin Pitch 2.5mm
Maximum Voltage 250V
Maximum Current 3.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 10mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1000V AC/min
Compatible Wire Size 30AWG ~ 22AWG
Wire Insulation Size (OD) 1.2mm ~ 1.9mm
Compatibility
  • JST XH
View full details

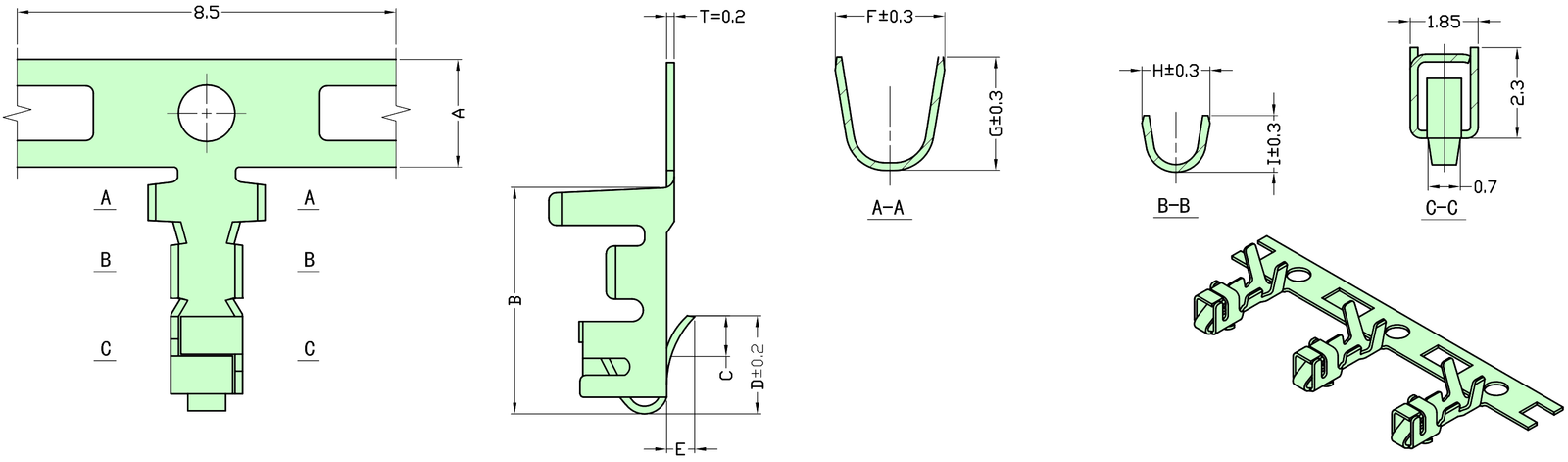

Diagram
