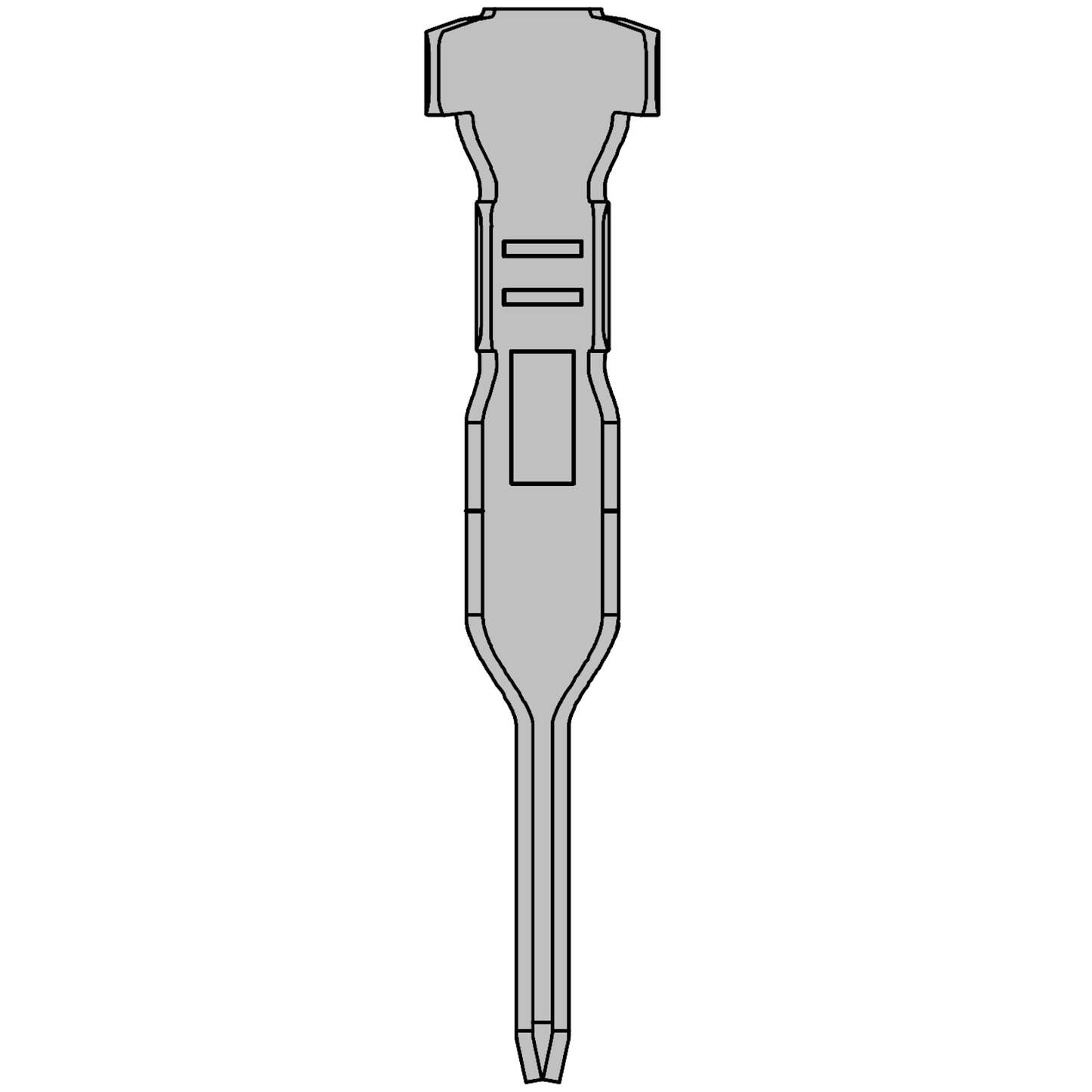

XH Wire Socket Crimp Terminal

XH Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Specification

Part NumberXH-250-RT
Part TypeWire Socket Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NameXH-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size30AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.9mm
Compatibility
  • JST XH
View full details

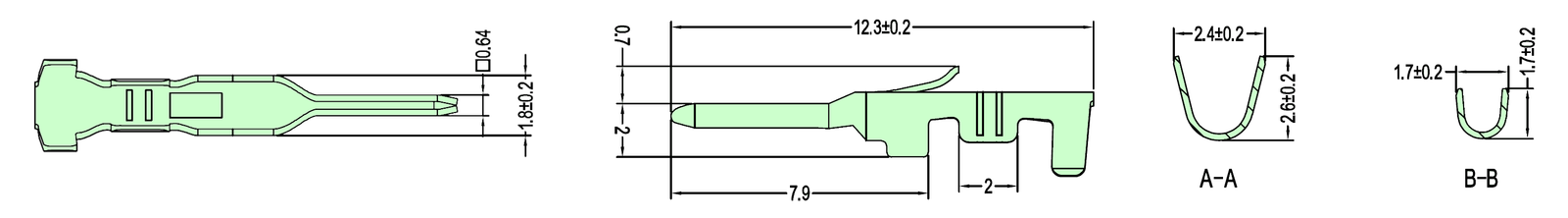

Diagram
