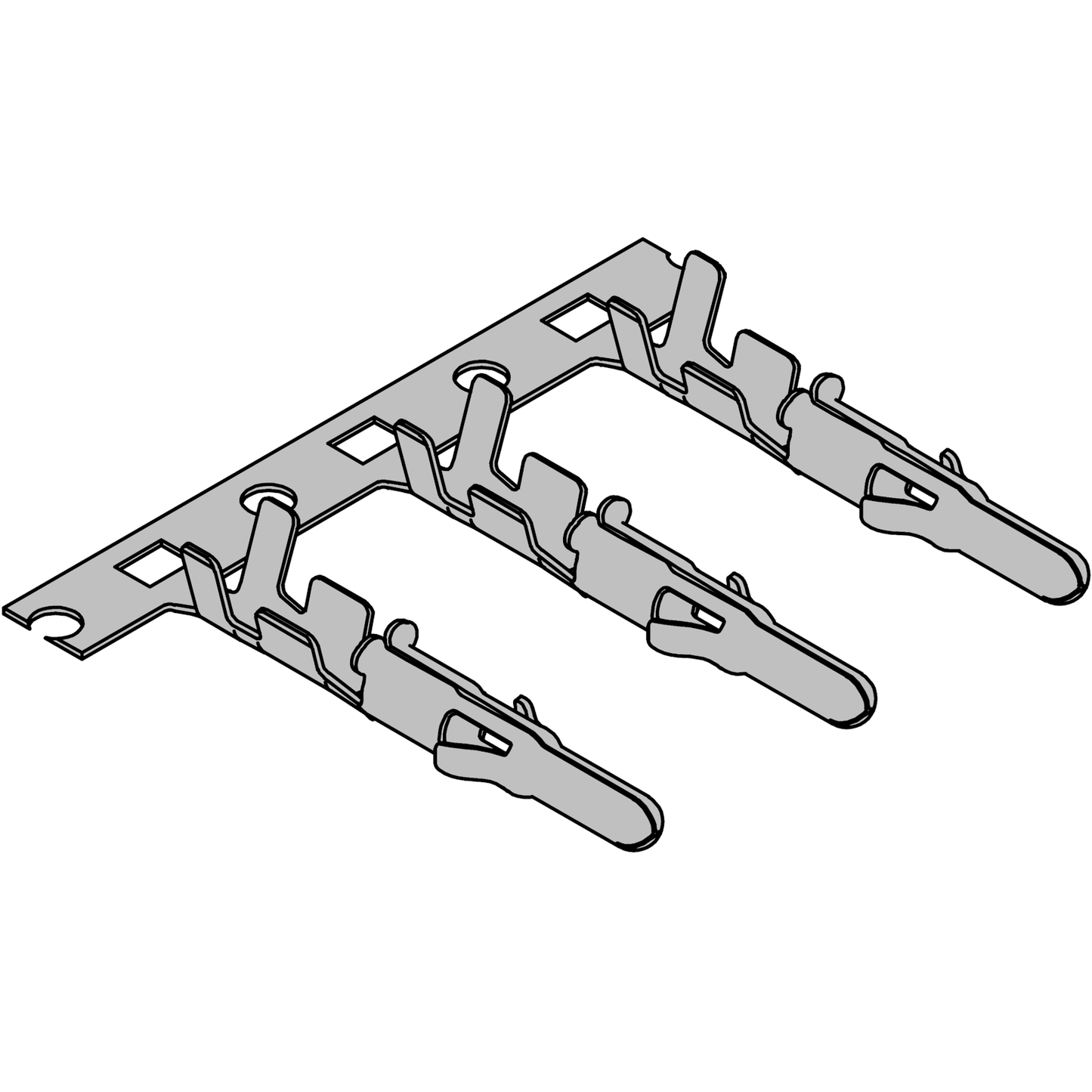

1.58 Wire Socket Crimp Terminal

1.58 Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.06
50+ £0.054
100+ £0.048
200+ £0.042
500+ £0.033
1000+ £0.03

Part Specification

Part Number1.58-000-RT
Part TypeWire Socket Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name1.58-000
Maximum Voltage250V
Maximum Current5.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance1000MΩ
Withstand Voltage1500V AC/min
Compatible Wire Size24AWG ~ 18AWG
Wire Insulation Size (OD)1.5mm ~ 2.5mm
Compatibility
  • Molex 1625
  • Standard .062"
View full details

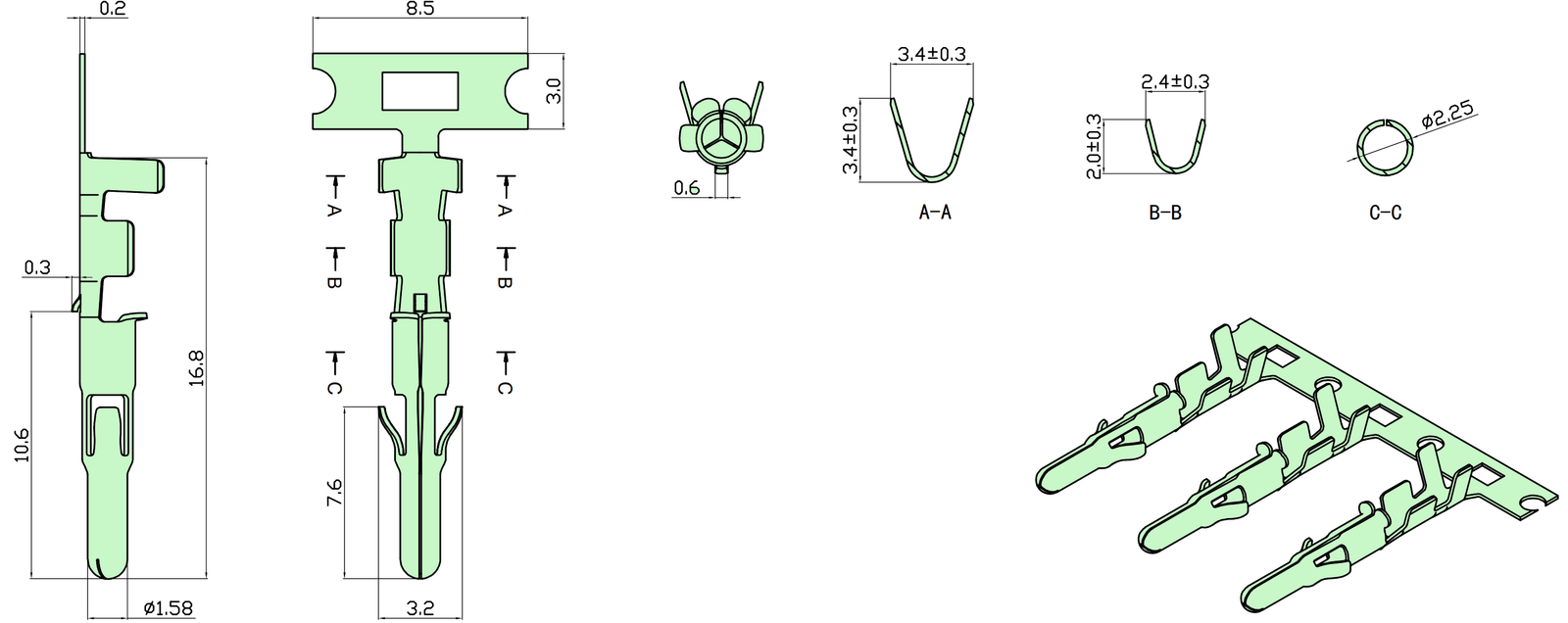

Diagram
