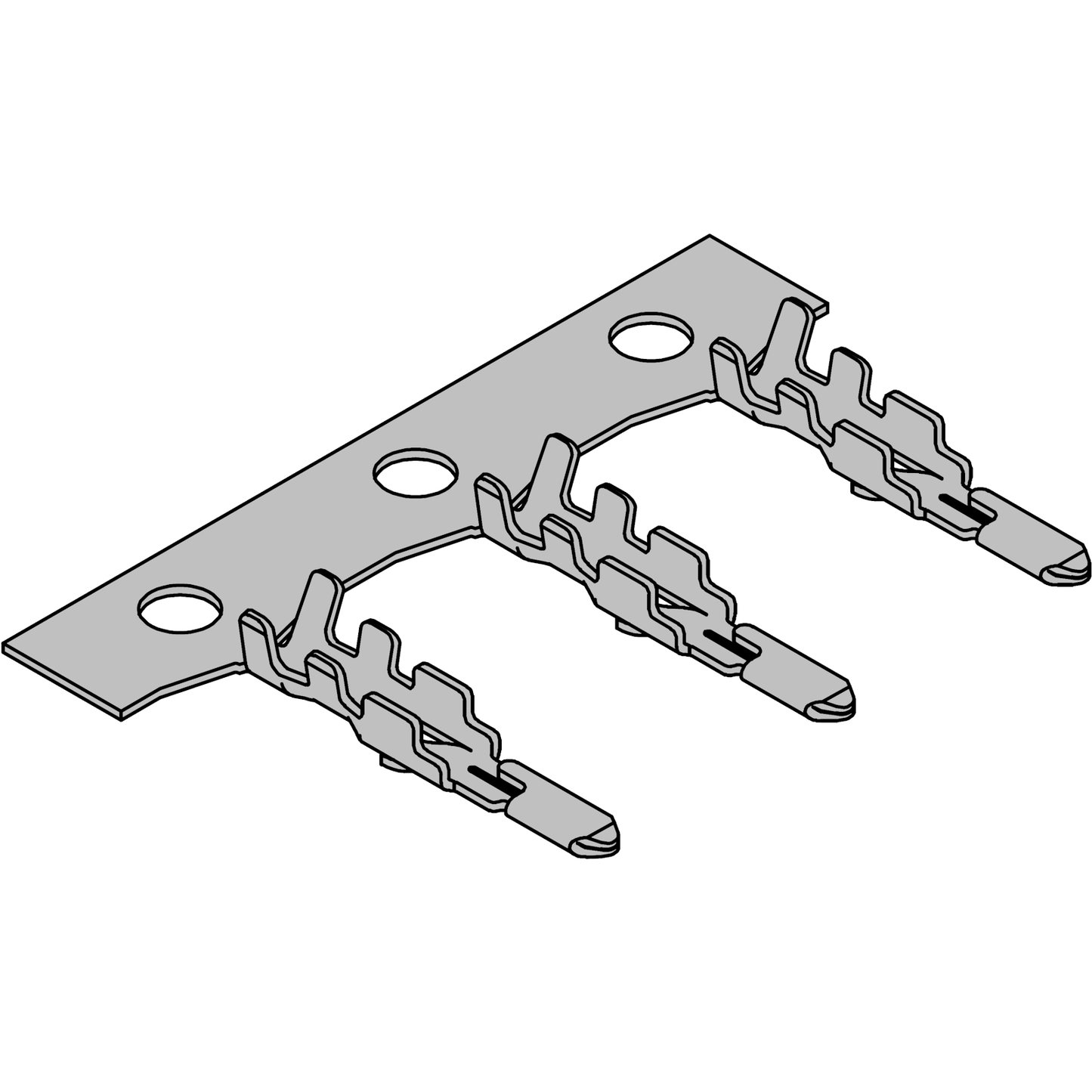

51005 Wire Socket Crimp Terminal

51005 Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.03
50+ £0.027
100+ £0.024
200+ £0.021
500+ £0.0165
1000+ £0.015

Part Specification

Part Number51005-200-RT
Part TypeWire Socket Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name51005-51006-200
Pin Pitch2.0mm
Maximum Voltage125V
Maximum Current2.0A
Temperature Range-25°C ~ 105°C
Contact Resistance20mΩ
Insulation Resistance1000MΩ
Withstand Voltage500V AC/min
Compatible Wire Size28AWG ~ 24AWG
Compatibility
  • Molex 51005
  • Molex 51006
View full details

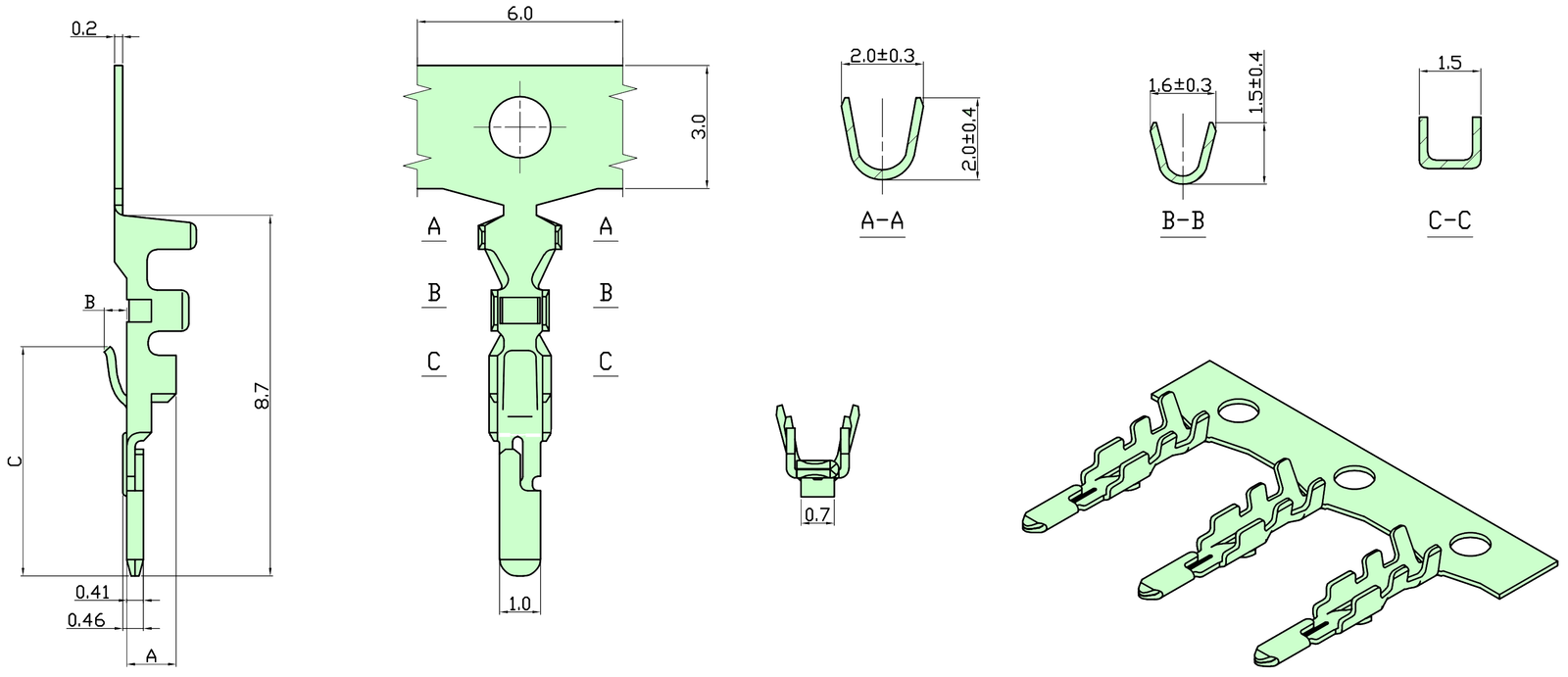

Diagram
