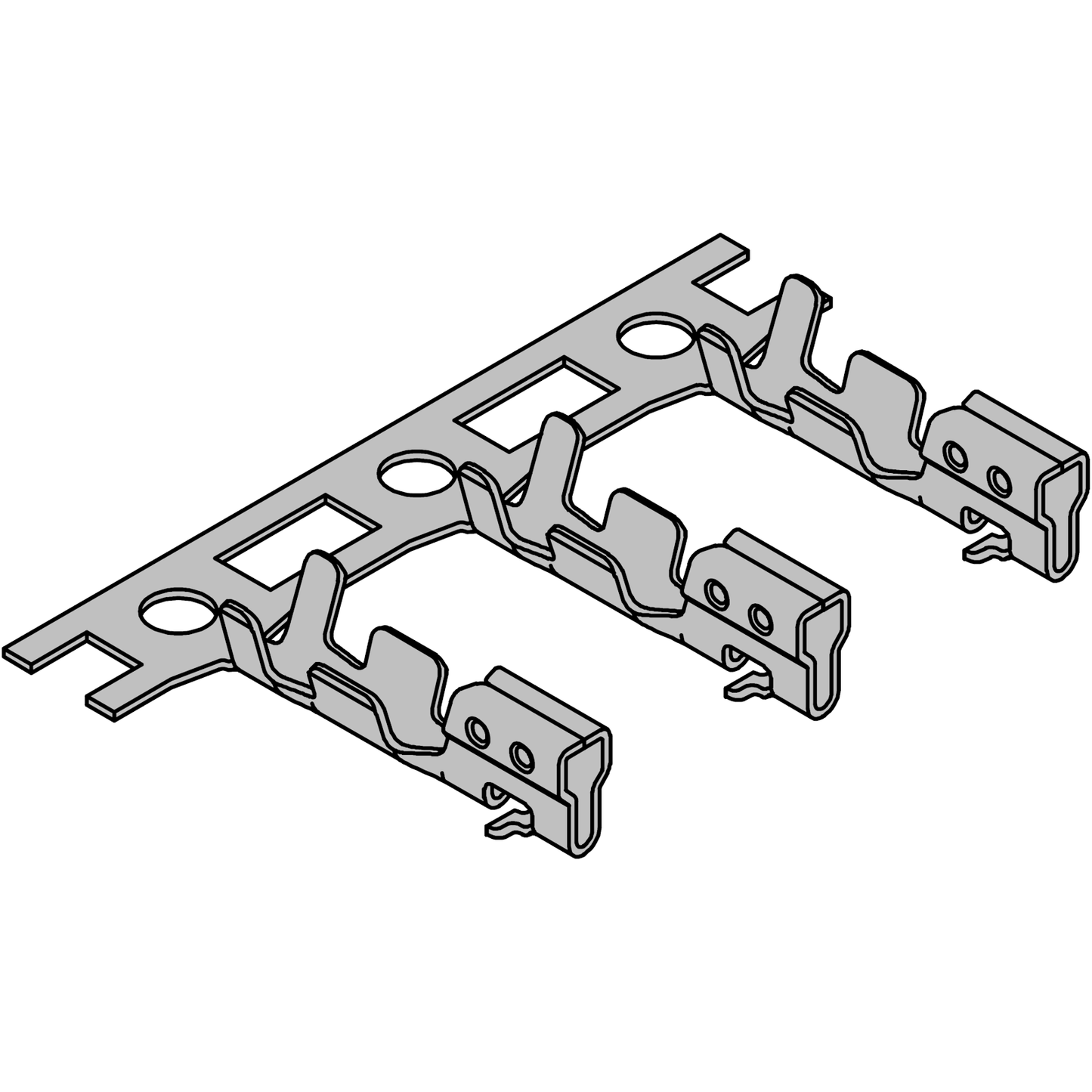

5102 Plug Crimp Terminal

5102 Plug Crimp Terminal

1 1
Quantity Unit Price
1+ £0.04
50+ £0.036
100+ £0.032
200+ £0.028
500+ £0.022
1000+ £0.02

Part Specification

Part Number5102-250-YT
Part TypePlug Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series Name5102-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance20mΩ
Insulation Resistance1000MΩ
Withstand Voltage1000V AC/min
Compatible Wire Size28AWG ~ 22AWG
Compatibility
  • Molex 5102
  • Molex 5240
View full details

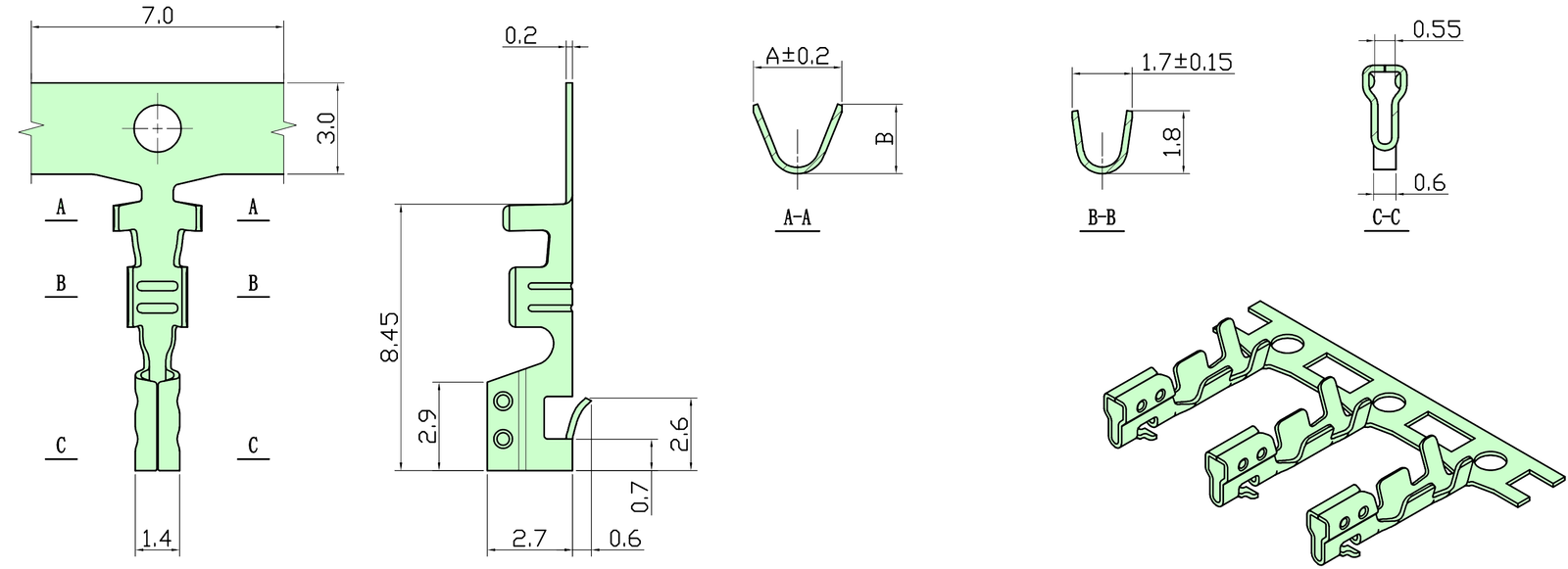

Diagram
