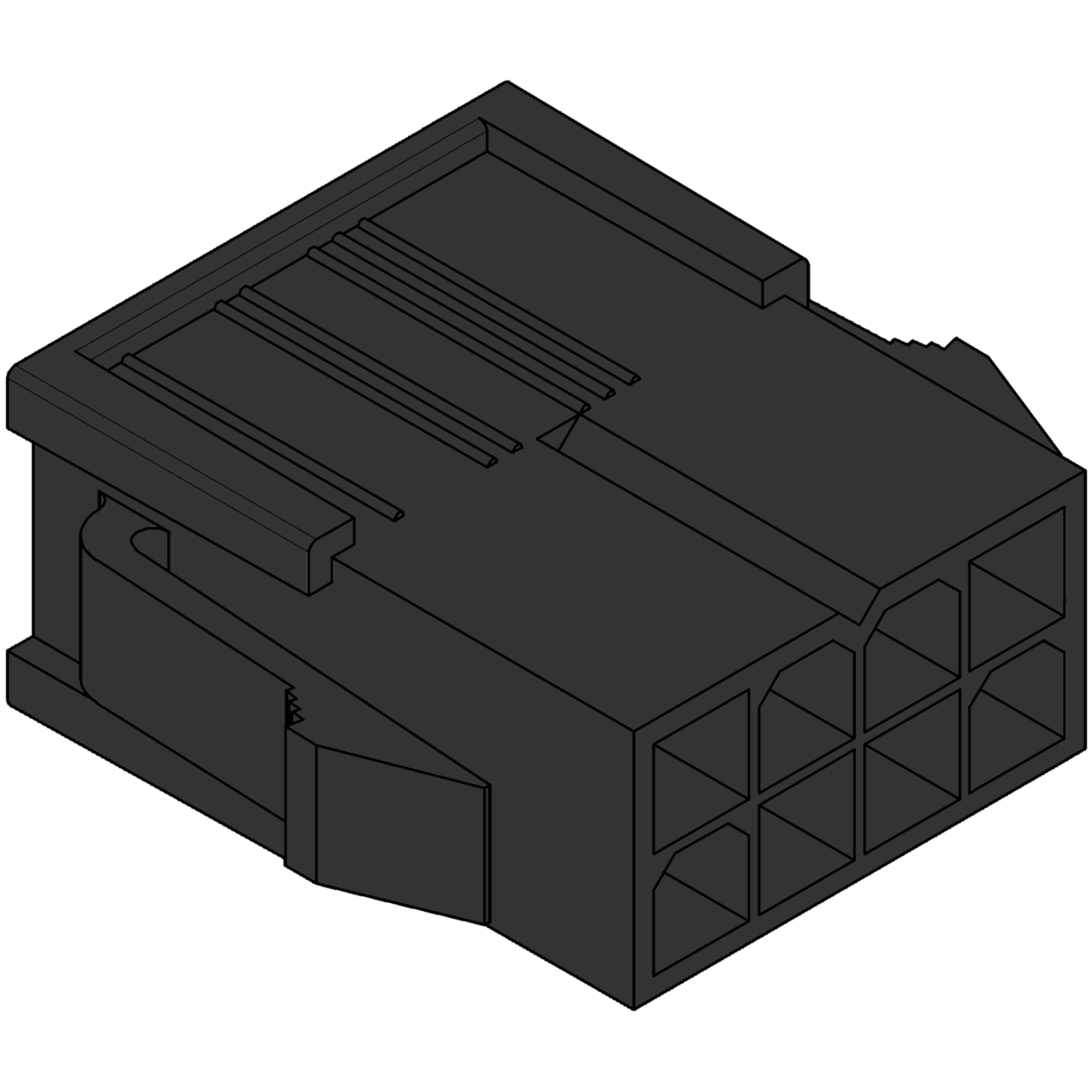

5559 Double Row Wire Socket Housing 8-pin Black

5559 Double Row Wire Socket Housing 8-pin Black

1 1
Quantity Unit Price
1+ £0.32
5+ £0.2896
10+ £0.2528
20+ £0.2208
50+ £0.1952
100+ £0.16

Part Information

Part Number 5559-420-2-8R
Row Count 2
Pin Count 8
Colour Black
Materials
  • Nylon PA66 (UL94V-0/V-2)

Series Specification

Series Name 5557-5559-5569-420
Pin Pitch 4.2mm
Maximum Voltage 300V
Maximum Current 9.0A
Temperature Range -25°C ~ 105°C
Contact Resistance 15mΩ
Insulation Resistance 1000MΩ
Withstand Voltage 1500V AC/min
Compatible Wire Size 28AWG ~ 16AWG
Wire Insulation Size (OD) 0.9mm ~ 2.7mm
Compatible PC Board Thickness 2.0mm
Compatibility
  • Molex Mini-Fit Jr.
View full details

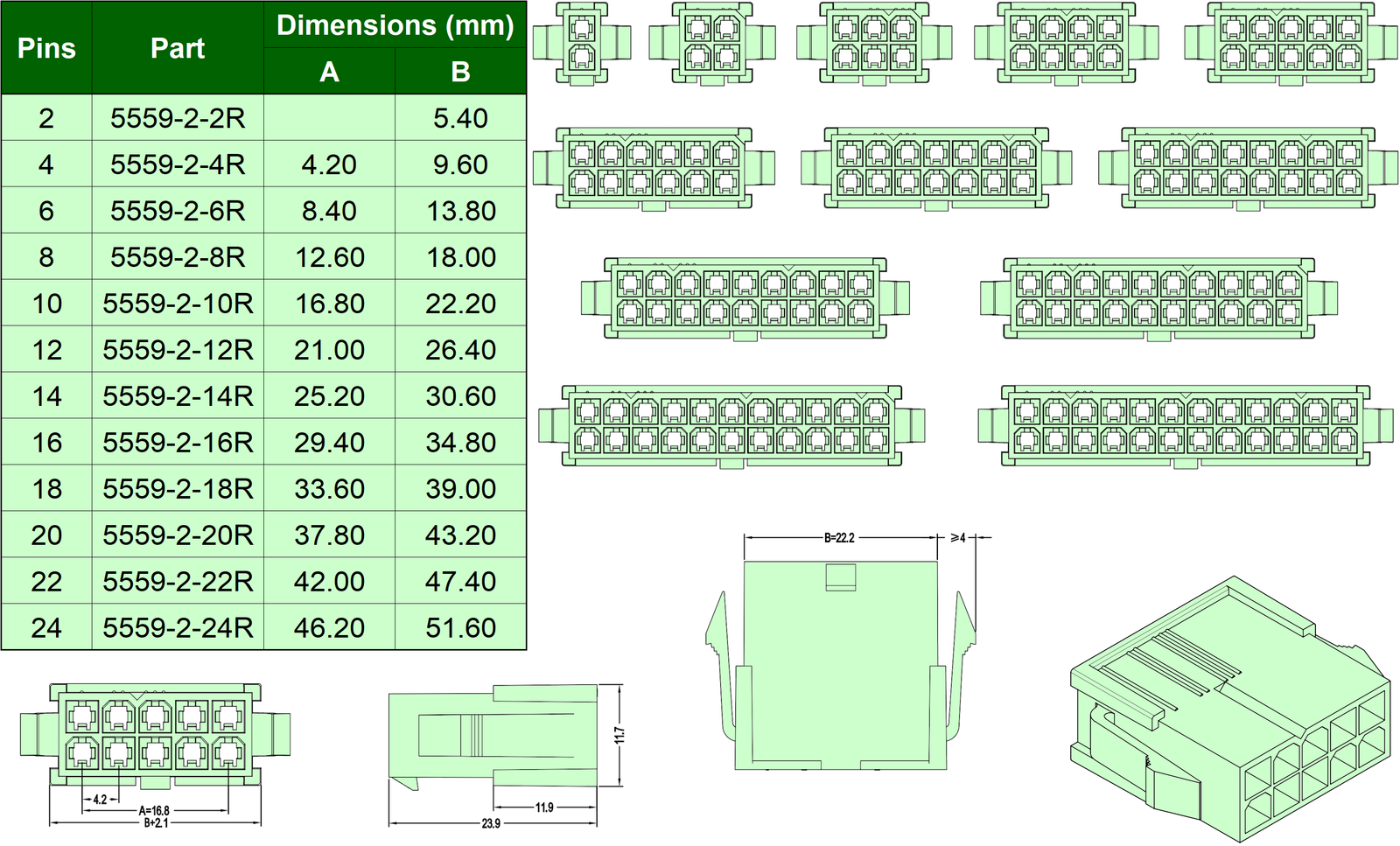

Diagram
