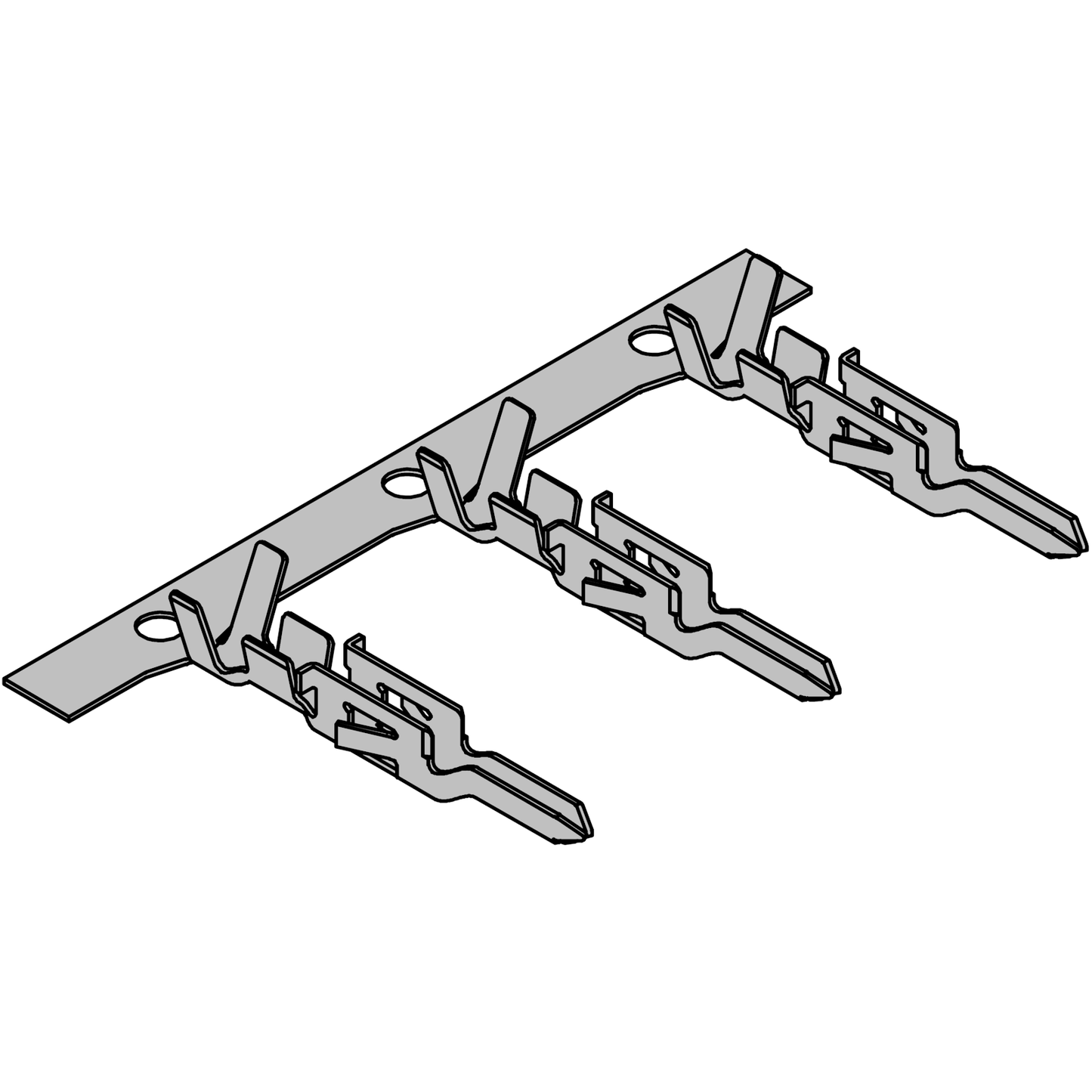

5559 Wire Socket Crimp Terminal

Series: 5557-5559-5569-420
Pin Count: 2-5
Pin Pitch: 4.2mm
Maximum Voltage: 300V
Maximum Current: 9.0A
Compatibility: Molex Mini-Fit Jr.

Name: 5559 Wire Socket Crimp Terminal
Brand: Komodo Electronics
SKU: 5559-420-RT
Price: 0.06 GBP
Availability: InStock

1 1

Product variants

Availability: 7506 in stock

Price

Quantity

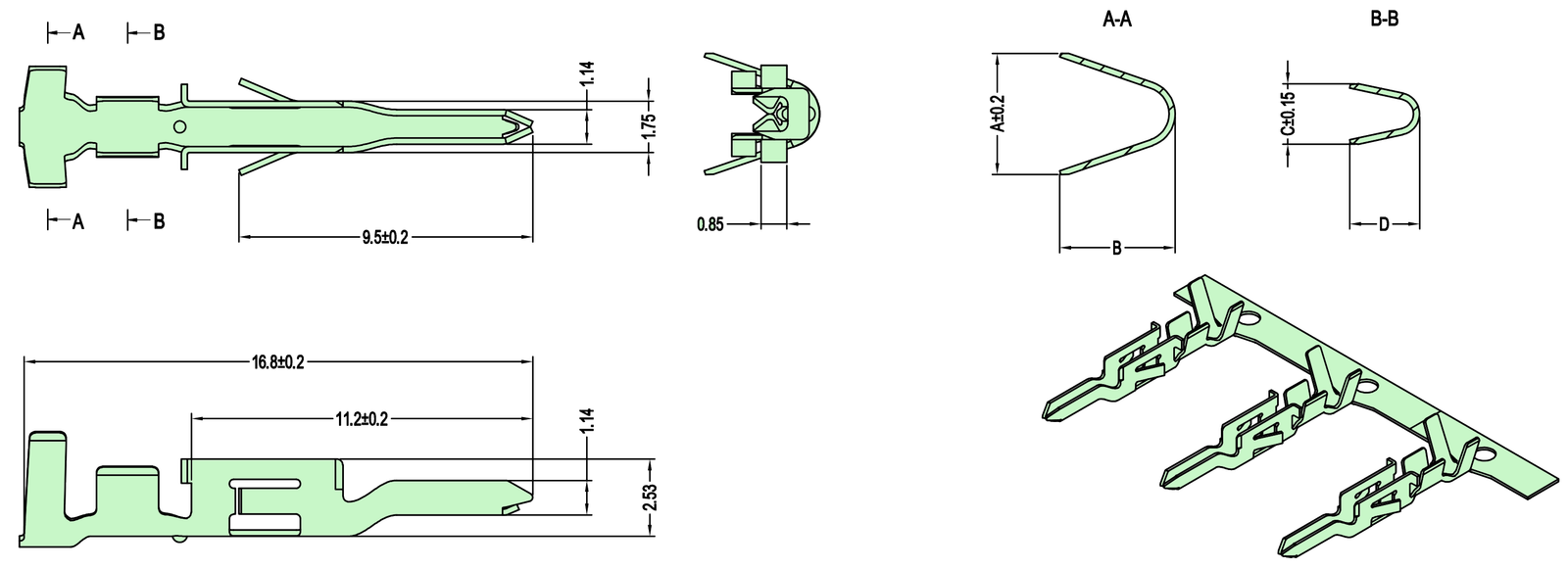

Part Information

Part Number	5559-420-RT
Materials	Phosphor bronze Tin

Series Name	5557-5559-5569-420
Pin Pitch	4.2mm
Maximum Voltage	300V
Maximum Current	9.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	15mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	28AWG ~ 16AWG
Wire Insulation Size (OD)	0.9mm ~ 2.7mm
Compatible PC Board Thickness	2.0mm
Compatibility	Molex Mini-Fit Jr.
