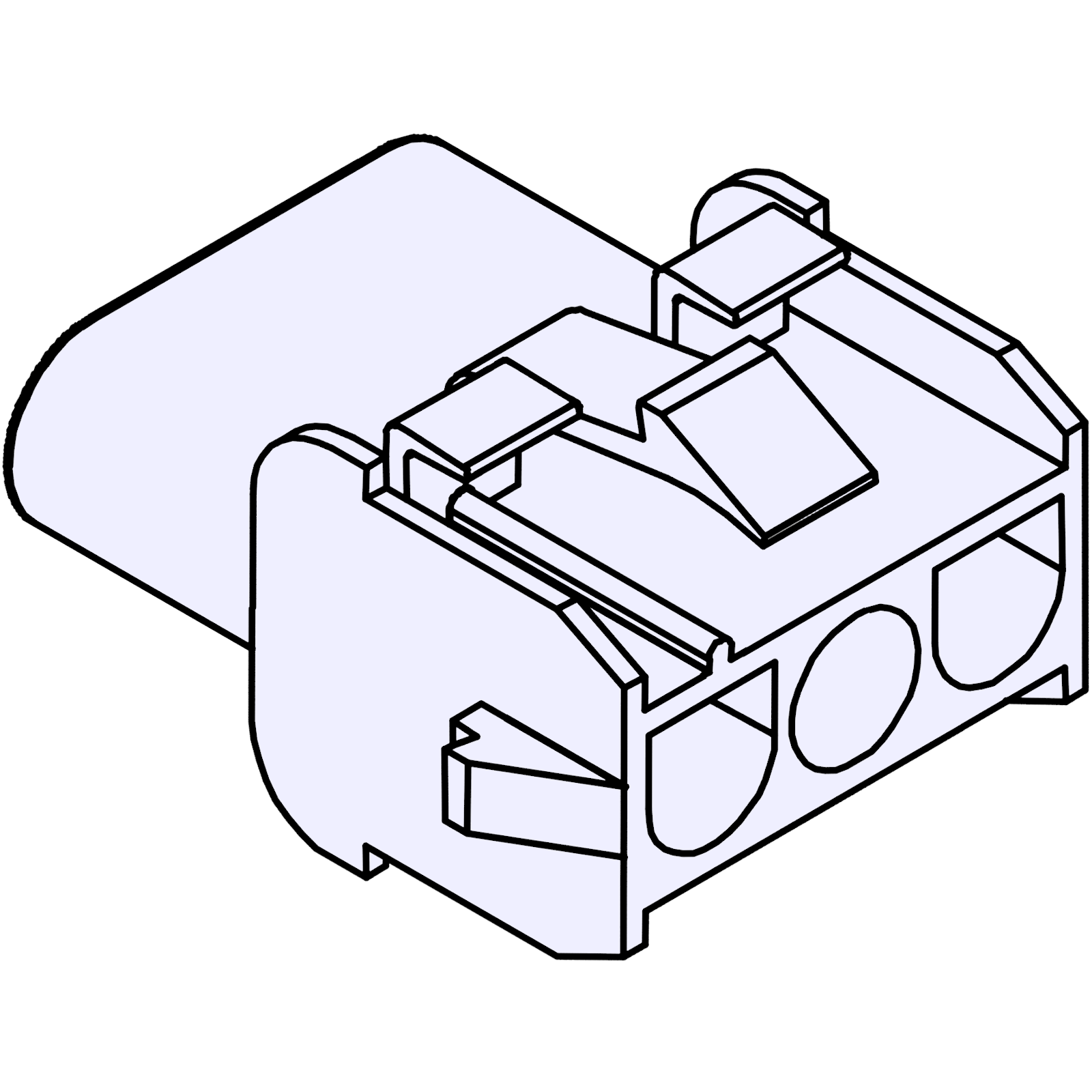

63080 Wire Socket Housing 3-pin

Series: 63080-635
Pin Count: 2-5
Pin Pitch: 6.35mm
Maximum Voltage: 300V
Maximum Current: 12.0A
Compatibility: Molex MLX Power

Name: 63080 Wire Socket Housing 3-pin
Brand: Komodo Electronics
SKU: 63080-635-3R
Price: 0.34 GBP
Availability: InStock

1 1

Product variants

Price

Quantity

Availability: 341 in stock

Part Information

Series Name	63080-635
Pin Pitch	6.35mm
Maximum Voltage	300V
Maximum Current	12.0A
Temperature Range	-25°C ~ 85°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	20AWG ~ 14AWG
Wire Insulation Size (OD)	2.4mm ~ 3.4mm
Compatible PC Board Thickness	1.6mm
Compatibility	Molex MLX Power
