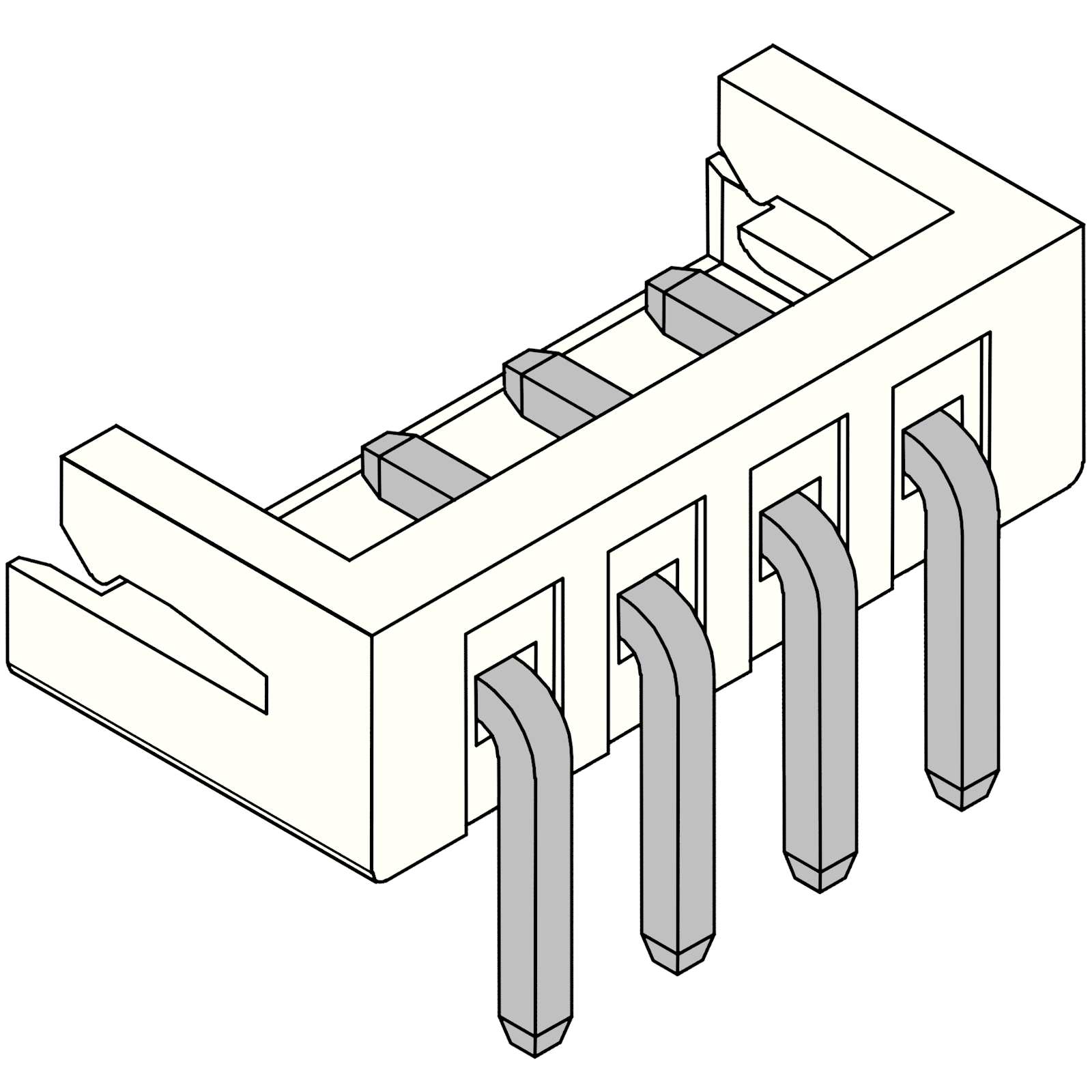

EH Angled PCB Socket 4-pin

Series: EH-250
Pin Count: 2-8
Pin Pitch: 2.5mm
Maximum Voltage: 250V
Maximum Current: 3.0A
Compatibility: JST EH

Name: EH Angled PCB Socket 4-pin
Brand: Komodo Electronics
SKU: EH-250-4AW
Price: 0.14 GBP
Availability: InStock

1 1

Product variants

Price

Quantity

Availability: 888 in stock

Part Information

Series Name	EH-250
Pin Pitch	2.5mm
Maximum Voltage	250V
Maximum Current	3.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	800V AC/min
Compatible Wire Size	32AWG ~ 22AWG
Compatible PC Board Thickness	1.6mm
Compatibility	JST EH
