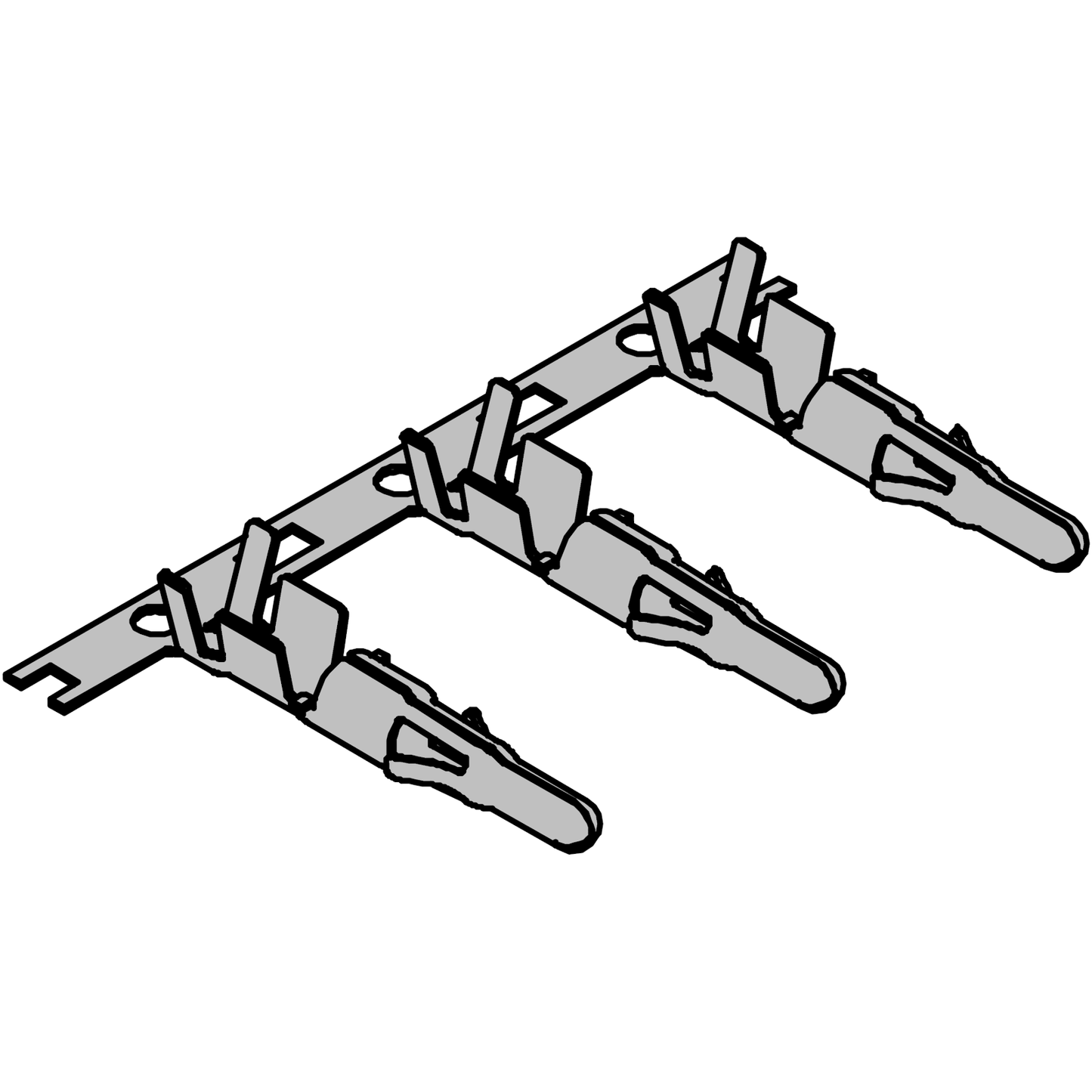

L6.2 Wire Socket Crimp Terminal

Series: L6.2-620
Pin Count: 2-2
Pin Pitch: 6.2mm
Maximum Voltage: 300V
Maximum Current: 13.0A
Compatibility: KET ø2.0

Name: L6.2 Wire Socket Crimp Terminal
Brand: Komodo Electronics
SKU: L6.2-620-RT
Price: 0.09 GBP
Availability: InStock

1 1

Product variants

Availability: 2555 in stock

Price

Quantity

Part Information

Part Number	L6.2-620-RT
Materials	Phosphor bronze Tin

Series Name	L6.2-620
Pin Pitch	6.2mm
Maximum Voltage	300V
Maximum Current	13.0A
Temperature Range	-25°C ~ 85°C
Contact Resistance	20mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	26AWG ~ 20AWG
Wire Insulation Size (OD)	1.7mm ~ 3.4mm
Compatible PC Board Thickness	2.0mm
Compatibility	KET ø2.0
