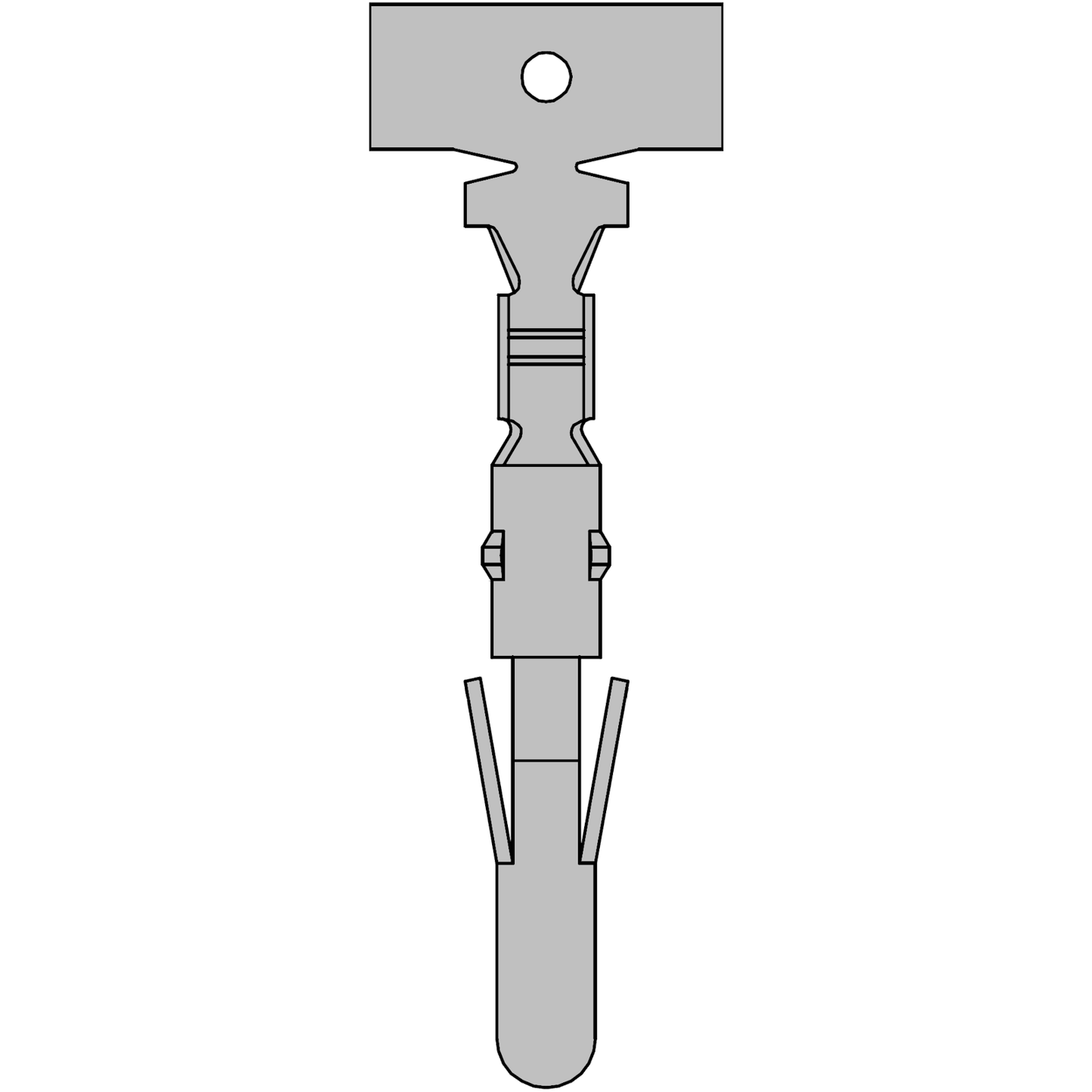

PCP Wire Socket Crimp Terminal

Series: PCP-508
Pin Count: 4-4
Pin Pitch: 5.08mm
Maximum Voltage: 250V
Maximum Current: 8.0A
Compatibility: AMP Mate-n-Lok / Molex 8981 / JST LC

Name: PCP Wire Socket Crimp Terminal
Brand: Komodo Electronics
SKU: PCP-508-RT
Price: 0.07 GBP
Availability: InStock

1 1

Product variants

Availability: 6646 in stock

Price

Quantity

Part Information

Part Number	PCP-508-RT
Materials	Phosphor bronze Tin

Series Name	PCP-508
Pin Pitch	5.08mm
Maximum Voltage	250V
Maximum Current	8.0A
Temperature Range	-25°C ~ 85°C
Contact Resistance	10mΩ
Insulation Resistance	1000MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	24AWG ~ 18AWG
Wire Insulation Size (OD)	1.4mm ~ 3.0mm
Compatible PC Board Thickness	1.6mm
Compatibility	AMP Mate-n-Lok Molex 8981 JST LC
