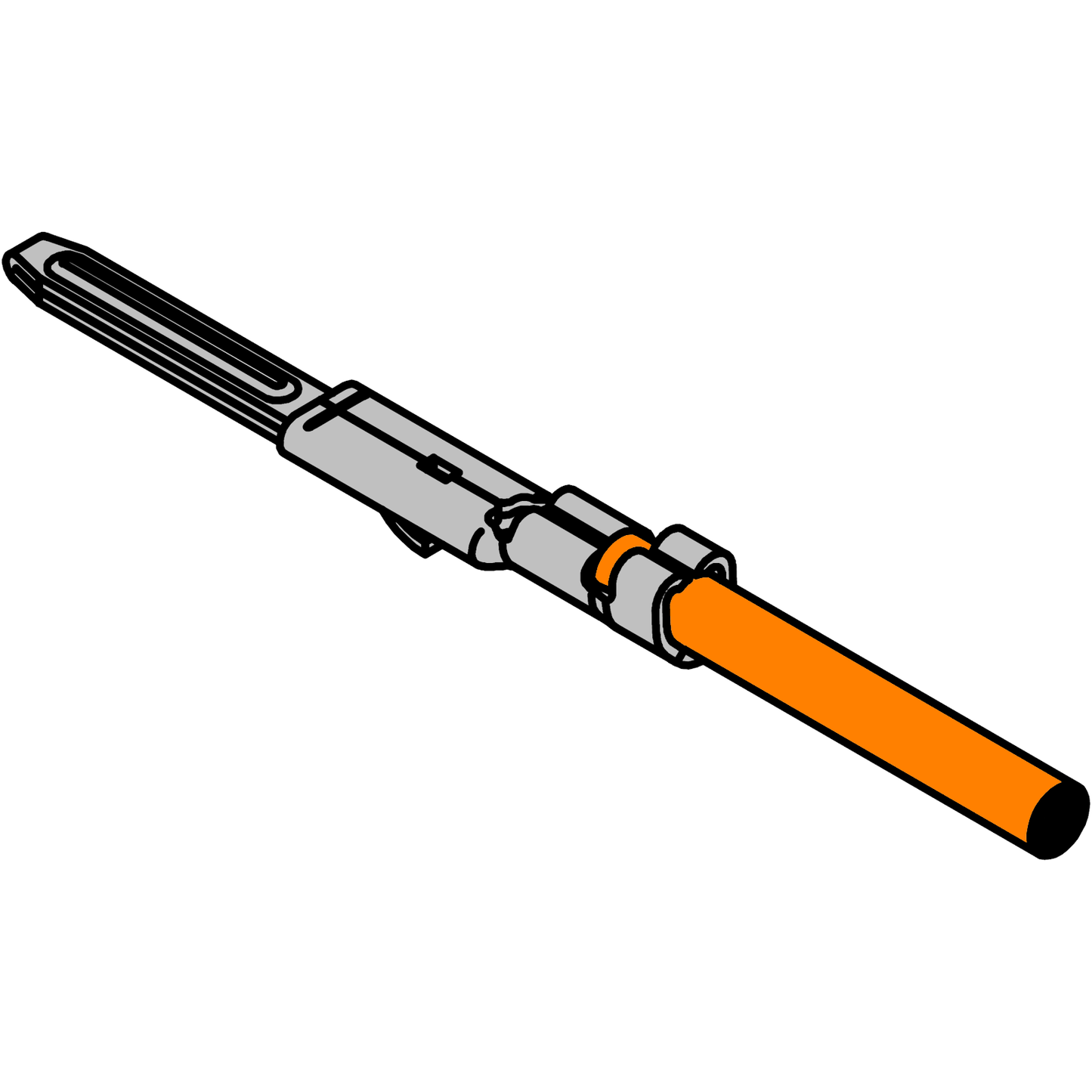

SM Crimped Wire 200mm (Wire Socket Crimp, Stripped & Tinned)

SM Crimped Wire 200mm (Wire Socket Crimp, Stripped & Tinned)

1 1
Wire Colour
Quantity Unit Price
1+ £0.22
5+ £0.198
10+ £0.176
20+ £0.154
50+ £0.132
100+ £0.121

Part Specification

Part NumberSM-250-W200-RT-S3
Variant Colour:
Red
Wire TerminationWire Socket Crimp / Stripped & Tinned
Wire Size22AWG
Wire Stranding17/0.12mm
Wire Outer Diameter1.6mm
Wire Length200mm
Part TypeCrimped Wire (Wire Socket)
Materials
  • Phosphor bronze
  • Tin
  • Copper
  • PVC

Series Specification

Series NameSM-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance500MΩ
Withstand Voltage1500V AC/min
Compatible Wire Size28AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.8mm
Compatibility
  • JST SM
