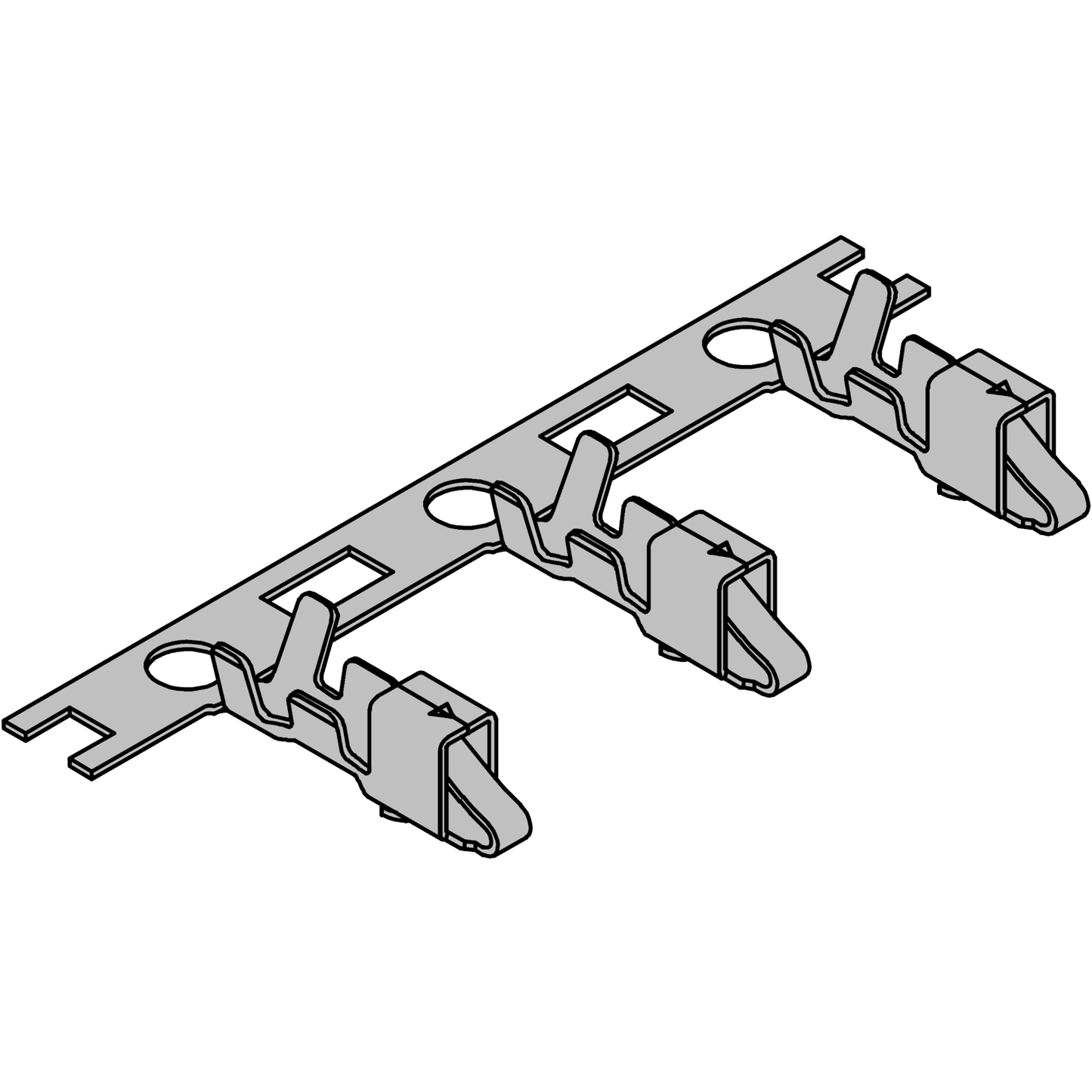

SM Plug Crimp Terminal

SM Plug Crimp Terminal

1 1

Product variants

Price

Quantity	Unit Price
1+	£0.06

Quantity

Availability: 0 in stock

Part Specification

Part Number	SM-250-YT
Part Type	Plug Crimp Terminal
Materials	Phosphor bronze Tin

Series Specification

Series Name	SM-250
Pin Pitch	2.5mm
Maximum Voltage	250V
Maximum Current	3.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	10mΩ
Insulation Resistance	500MΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	28AWG ~ 22AWG
Wire Insulation Size (OD)	1.2mm ~ 1.8mm
Compatibility	JST SM

View full details

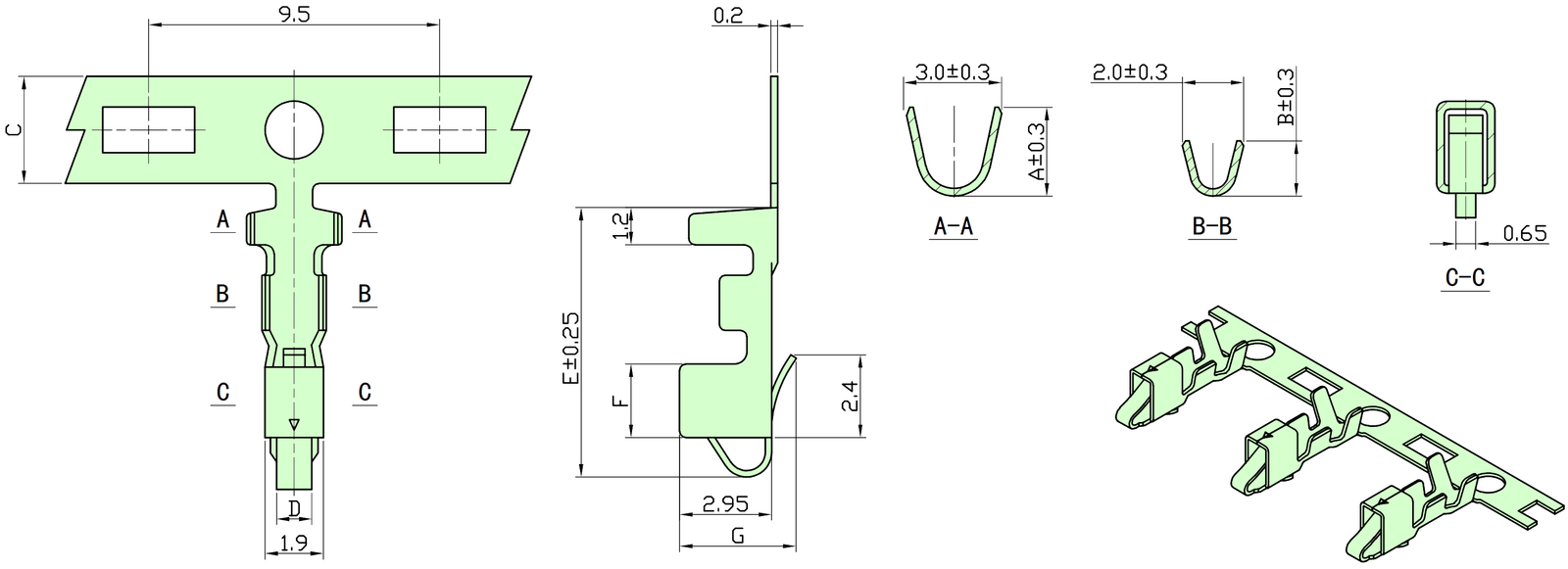

Diagram
