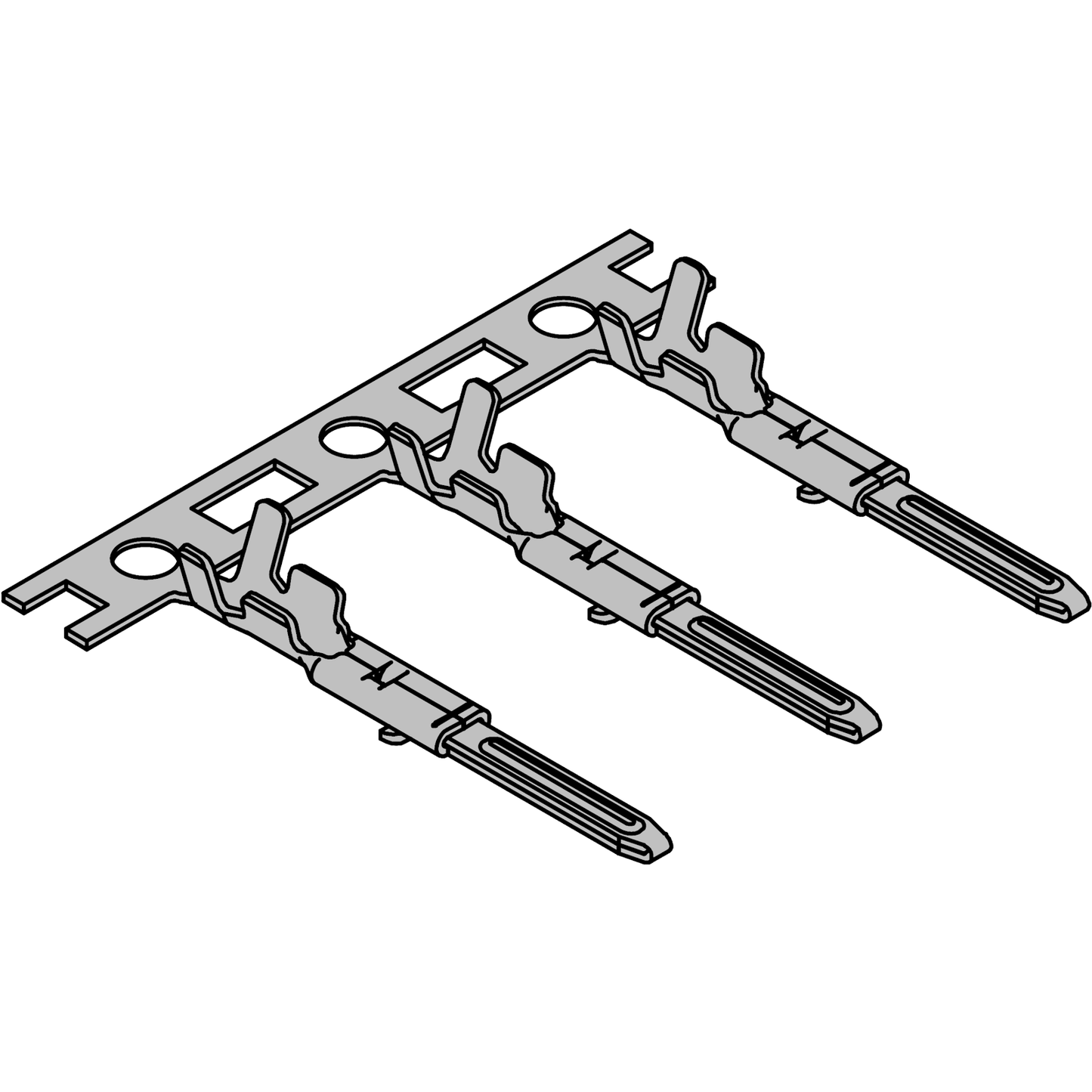

SM Wire Socket Crimp Terminal

SM Wire Socket Crimp Terminal

1 1
Quantity Unit Price
1+ £0.05
50+ £0.045
100+ £0.04
200+ £0.035
500+ £0.0275
1000+ £0.025

Part Specification

Part NumberSM-250-RT
Part TypeWire Socket Crimp Terminal
Materials
  • Phosphor bronze
  • Tin

Series Specification

Series NameSM-250
Pin Pitch2.5mm
Maximum Voltage250V
Maximum Current3.0A
Temperature Range-25°C ~ 105°C
Contact Resistance10mΩ
Insulation Resistance500MΩ
Withstand Voltage1500V AC/min
Compatible Wire Size28AWG ~ 22AWG
Wire Insulation Size (OD)1.2mm ~ 1.8mm
Compatibility
  • JST SM
View full details

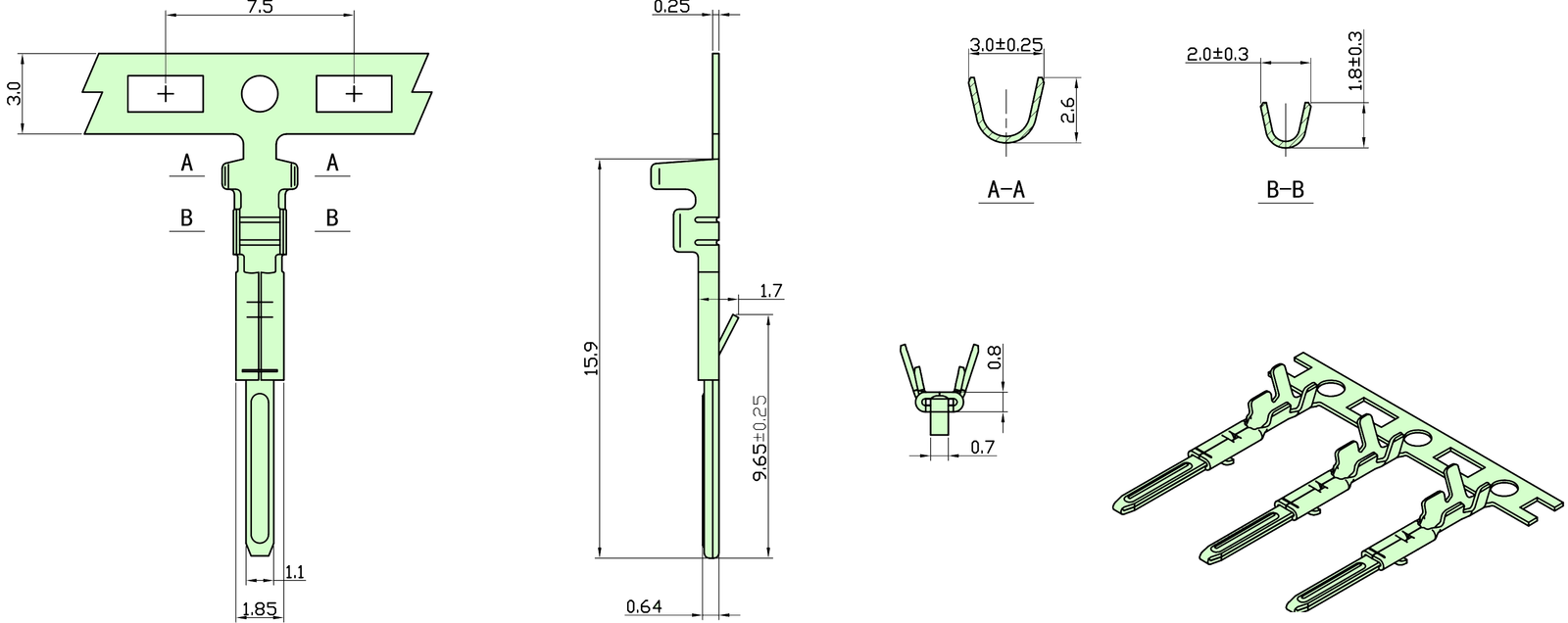

Diagram
