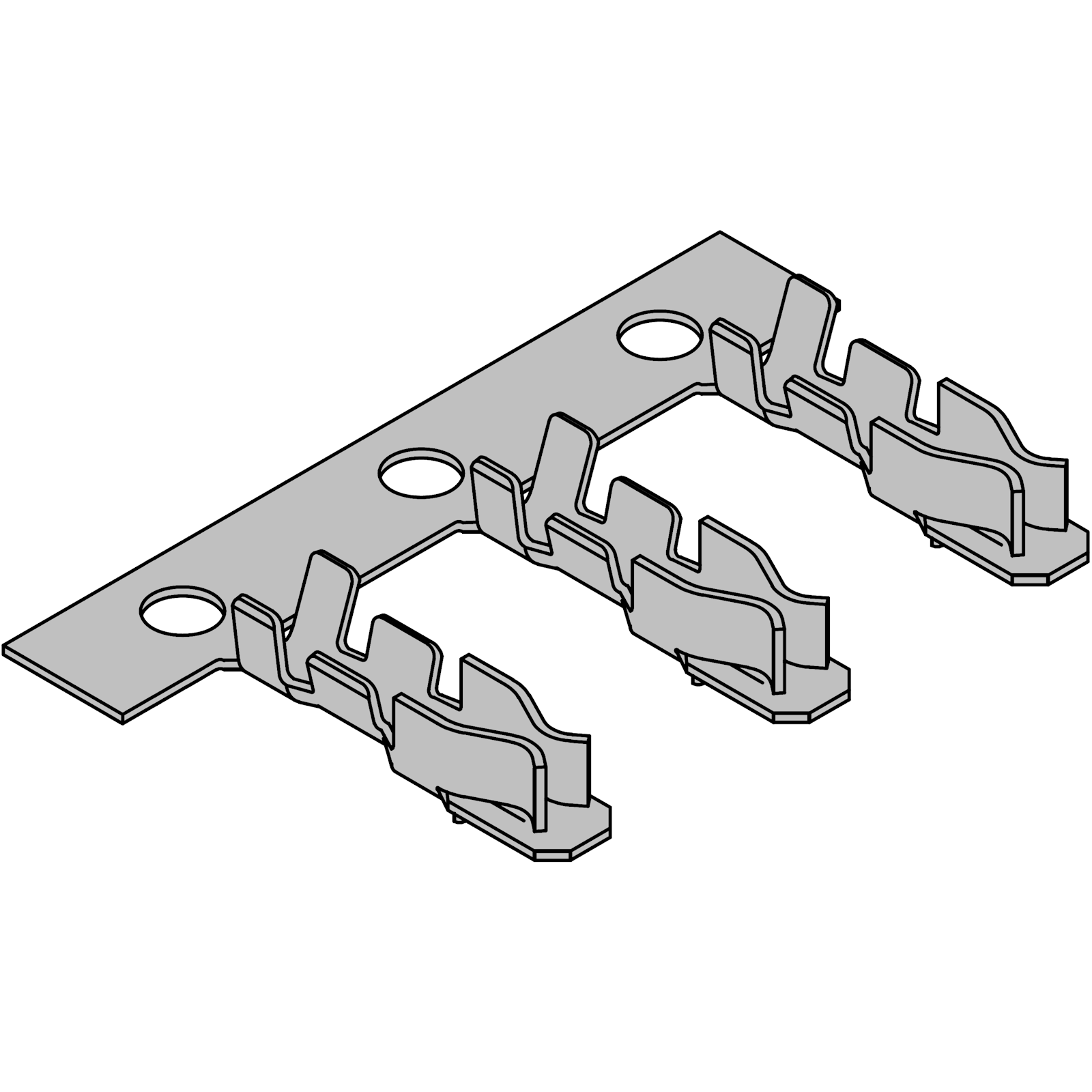

SMH250 Plug Crimp Terminal

SMH250 Plug Crimp Terminal

    1 0
    Quantity Unit Price
    1+ £0.04
    50+ £0.036
    100+ £0.032
    200+ £0.028
    500+ £0.022
    1000+ £0.02

    Part Information

    Part Number SMH250-250-YT
    Materials
    • Phosphor bronze
    • Tin

    Series Specification

    Series Name SMH250-SMP250-SMW250-250
    Pin Pitch 2.5mm
    Maximum Voltage 250V
    Maximum Current 3.0A
    Temperature Range -25°C ~ 105°C
    Contact Resistance 20mΩ
    Insulation Resistance 1000MΩ
    Withstand Voltage 1000V AC/min
    Compatible Wire Size 28AWG ~ 22AWG
    Wire Insulation Size (OD) 1.2mm ~ 1.9mm
    Compatibility
    • Yeonho SMH250-NN
    • Yeonho SMP250-NN
    • Yeonho SMW250-NN
    View full details

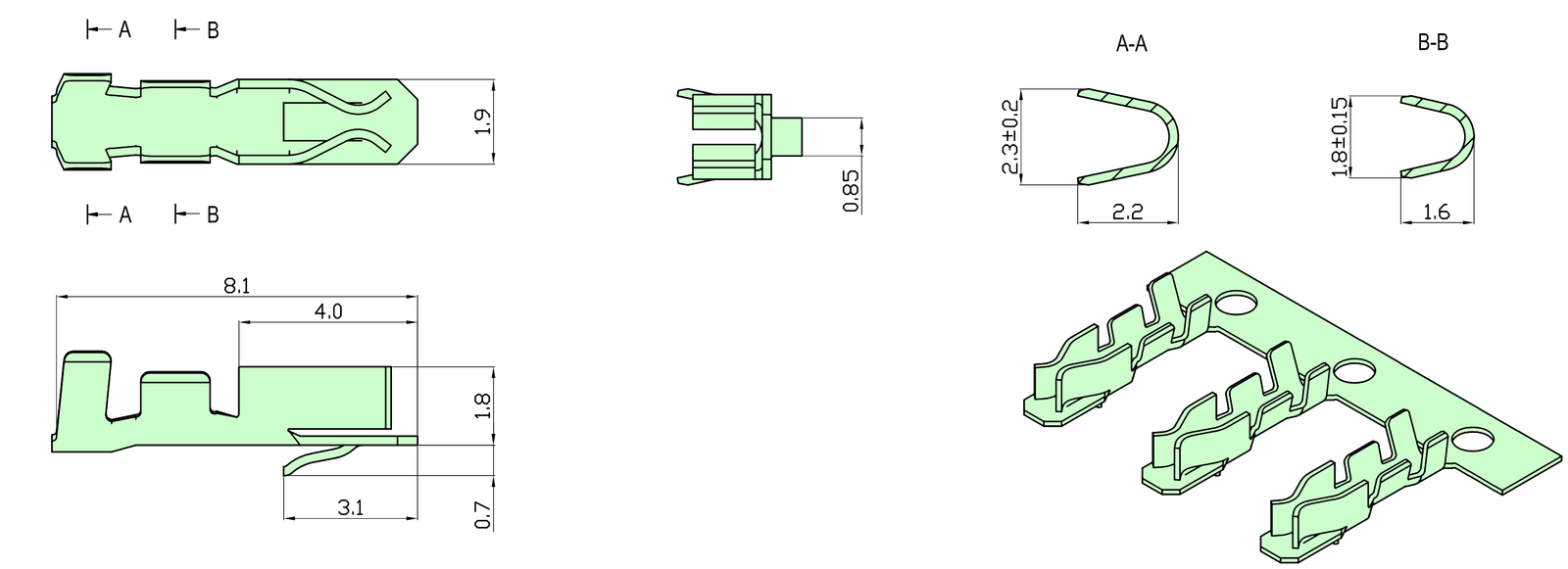

    Diagram
