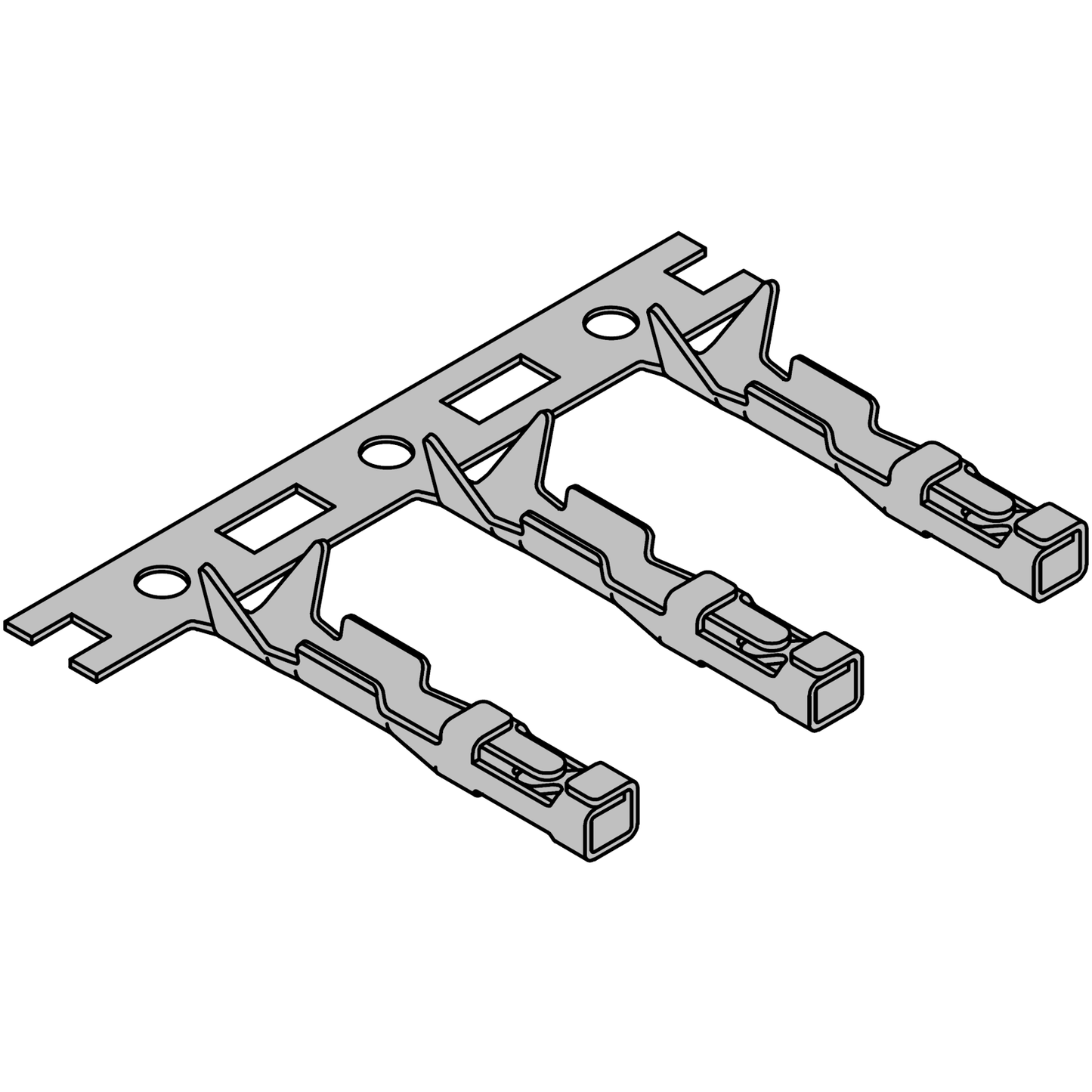

TJC8 Female Crimp Terminal

Series: TJC8-254
Pin Count: 1-40
Pin Pitch: 2.54mm
Maximum Voltage: 250V
Maximum Current: 3.0A
Compatibility: JST RE / HARWIN M20 / Amphenol ICC Mini-PV / DuPont Standard Header

Name: TJC8 Female Crimp Terminal
Brand: Komodo Electronics
SKU: TJC8-254-FT
Price: 0.05 GBP
Availability: InStock

1 1

Product variants

Availability: 22388 in stock

Price

Quantity

Part Information

Part Number	TJC8-254-FT
Materials	Phosphor bronze

Series Name	TJC8-254
Pin Pitch	2.54mm
Maximum Voltage	250V
Maximum Current	3.0A
Temperature Range	-25°C ~ 105°C
Contact Resistance	20mΩ
Withstand Voltage	1500V AC/min
Compatible Wire Size	26AWG ~ 22AWG
Wire Insulation Size (OD)	1.2mm ~ 1.6mm
Compatibility	JST RE HARWIN M20 Amphenol ICC Mini-PV DuPont Standard Header
